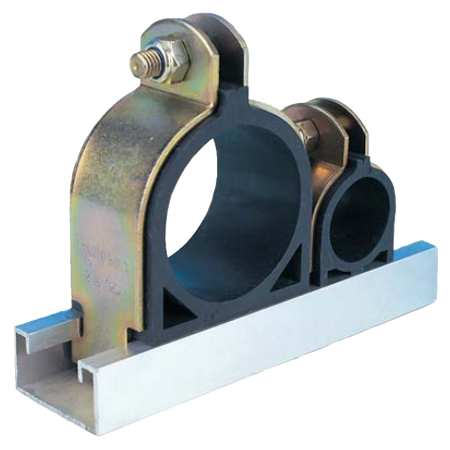

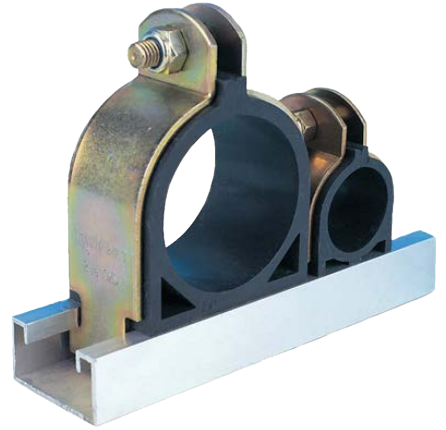

Insulclamp 7/8” 47mm | Zinc Passivated Steel | Thermo-Rubber Cushion | Easy Installation | by Aspen Pumps

BRAND: Aspen Pumps
SKU: B6277
$4.20 List price: $5.00
+ −
30 Days Return Delivery Options
The Insulclamp 7/8” 47mm is designed for effective pipe support in HVAC and refrigeration systems. Made from zinc passivated steel with a thermo-rubber cushion, it insulates against heat loss and minimizes vibration, ensuring durability and efficiency. Ideal for commercial air conditioning installations, this clamp supports individual pipes with ease, making it a reliable choice for professionals.

Product Name/Title: Insulclamp 7/8” 47mm | Zinc Passivated Steel | Thermo-Rubber Cushion | Easy Installation | by Aspen Pumps

Brand: Aspen Pumps

SKU: B6277

Alternatively Known As: Pipe Support Channel Clip, Insulated Pipe Clamp, HVAC Pipe Support Clip

Technical Specifications
  • Material: Zinc passivated steel with rubber cushion
  • Maximum temperature for rubber cushion: 130°C
  • Maximum temperature for zinc bracket: 1000°C
  • Maximum recommended distance per clip: 1.2m
  • Dimensions (H x L x W): 30mm x 80mm x 47mm
  • Weight: 0.2 kg
Key Features
  • Easy installation into 40x40mm and 40x20mm channel
  • Insulates against heat loss and reduces vibration
  • Quick to install with lock nuts
  • Supports individual pipes with thermo-rubber cushion between two metal plates
  • Thermo-rubber cushion insert withstands maximum temperature of 130°C
  • Zinc bracket withstands temperatures up to 1000°C
Professional Installation Requirements
  • Installation should be performed by qualified HVAC or refrigeration professionals to ensure proper support and insulation.
Applications
  • Commercial air conditioning installations
  • Refrigeration installations
  • Pipe support in HVAC systems
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • Reduces heat loss through insulation, improving energy efficiency
  • Minimizes vibration, reducing wear and tear and extending system lifespan
Warranty Information

Standard manufacturer warranty applies. Please refer to Aspen Pumps for specific warranty details.

Available Now

The Aspen Pumps Insulclamp 7/8” 47mm is available for immediate purchase, ideal for commercial HVAC and refrigeration pipe support applications.
