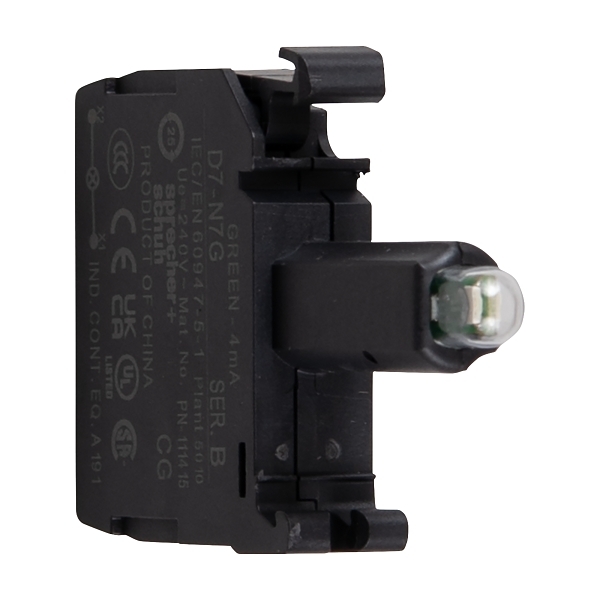

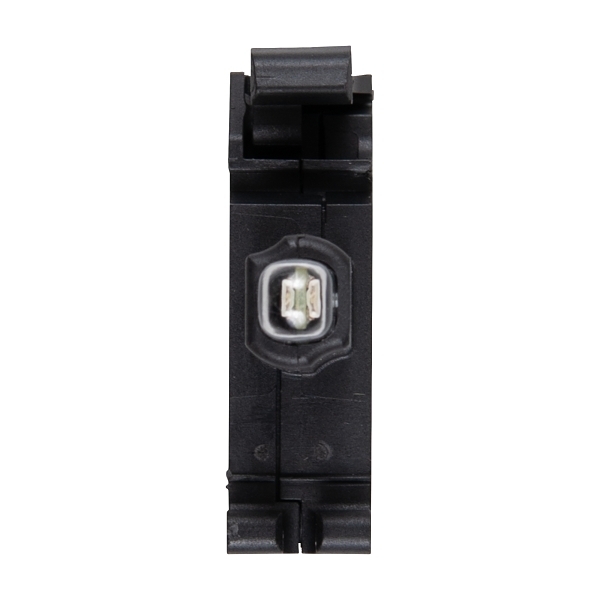

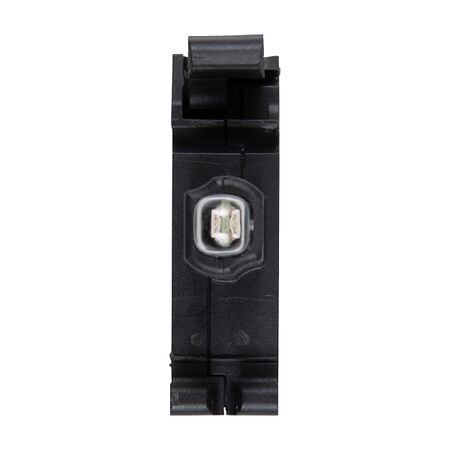

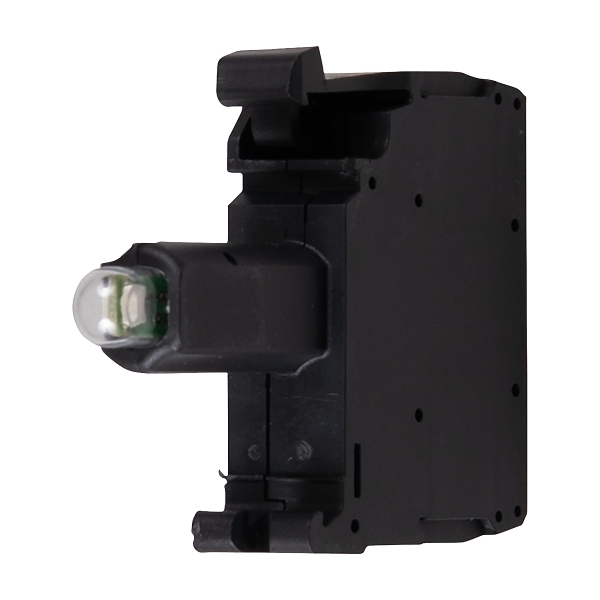

Integrated LED Module Latch Mount | 240V AC | Green Lens | 22.5mm by NHP
Integrated LED module with 240V AC and green lens—ideal for industrial control panels and commercial equipment indicators. Built for clear visibility, with energy-efficient design for reduced power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sprecher and Schuh D7 Integrated LED Module Latch Mount 240V AC Green
Brand: NHP
SKU: D7N7G
Alternatively Known As: LED Indicator Module, Green LED Control Light, 22.5mm Indicator Light
Technical Specifications
- Rated Current: 0.02 A
- Rated Frequency: 50-60 Hz
- Rated Operating Voltage: 240 V AC
- Colour Lens: Green
- Material Front Ring: Plastic
- Luminous Intensity: 0.89 cd
- Max Shock Acceleration: 100 g
- Max Vibration Frequency Operational: 2000 Hz
- Max Vibration Acceleration: 10 m/s²
- Hole Diameter: 22.5 mm
- Dimensions (H x L x W): 22.5mm x 22.5mm x 22.5mm
- Weight: 0.1 kg
Key Features
- Integrated LED module with a green lens for clear visibility.
- Designed for 22.5mm operator control devices.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Control panels and machinery
- Commercial: Equipment indicators and signaling
- General: Any application requiring visual indication
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient LED technology reduces power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Integrated LED Module Latch Mount 240V AC Green is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable visual indication.
