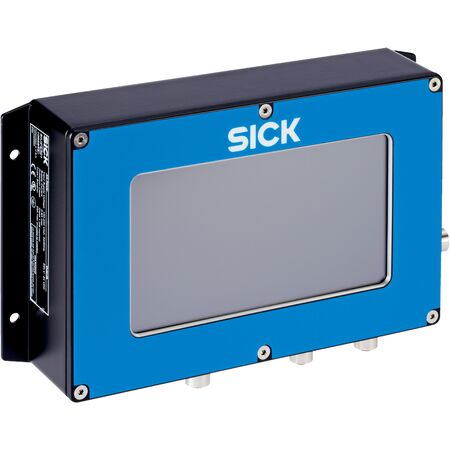

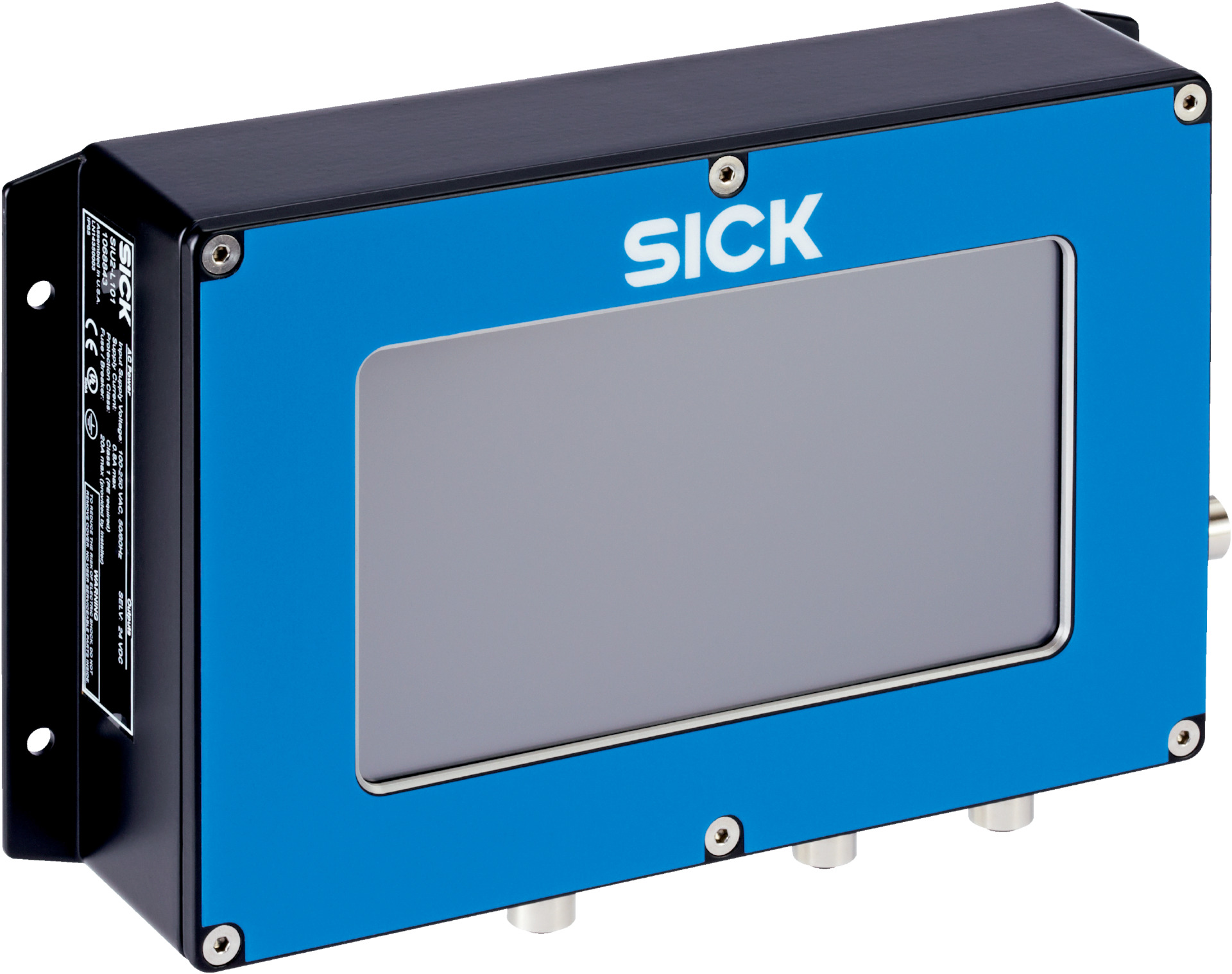

Integration Module SIU2-L0011A002 | IP65 Rated | 100 Mbit/s Ethernet | Aluminum Alloy Housing | by SICK
The SIU2-L0011A002 Integration Module is designed for seamless operator interface in industrial automation systems. Featuring a robust aluminum alloy housing and an IP65 rated enclosure, it ensures durability and protection against dust and water. With a 100 Mbit/s Ethernet interface, this module is perfect for controlling and monitoring the Inspector VSP product family, making it an essential component for factory and process automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Integration Module SIU2-L0011A002 | IP65 Rated | 100 Mbit/s Ethernet | Aluminum Alloy Housing | by SICK
Brand: SICK
SKU: 2084701
Alternatively Known As: Inspector VSP Operator Panel, SIU2-L0011A002 Display Module, SICK Integration Module
Technical Specifications
- Accessory group: Display modules
- Housing material: Aluminum alloy
- Enclosure rating: IP65
- Ambient operating temperature: 0 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Interface: 100 Mbit/s Ethernet
- Power supply: 24 V DC
- Dimensions (H x L x W): 140mm x 64mm x 190mm
- Weight: 1.45 kg
Key Features
- Operator panel supports image and result display
- Switching between recipes and managing Inspector configurations
- 100 Mbit/s Ethernet interface
- Robust aluminum alloy housing
- IP65 rated enclosure for dust and water protection
- Wide ambient operating temperature range from 0°C to +50°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Industrial automation systems
- Inspector VSP product family control and monitoring
- Factory and process automation requiring operator interface
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP65 housing reduces need for frequent replacements
- Energy-efficient operation with 24 V DC power supply
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK SIU2-L0011A002 Operator Panel is available for immediate purchase, ideal for industrial automation and Inspector VSP system applications.
