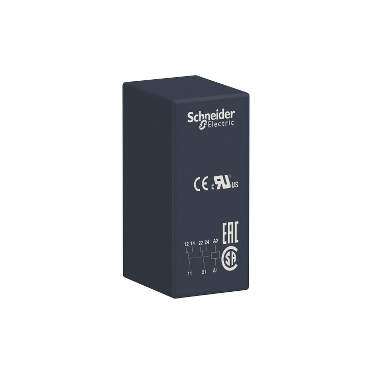

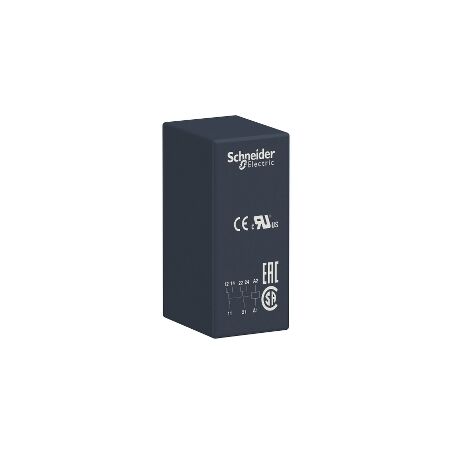

Interface Relay | Plug-in Design | 2 C/O Contacts | 24V DC Coil | by Clipsal
The Interface Relay is a plug-in relay designed for easy installation and replacement, featuring 2 changeover contacts and a 24V DC coil voltage. Ideal for industrial automation control panels and building management systems, it offers robust performance with an 8 A contact rating and a long operational life, ensuring reliability in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Interface Relay | Plug-in Design | 2 C/O Contacts | 24V DC Coil | by Clipsal
Brand: Clipsal
SKU: SCHRSB2A080BD
Alternatively Known As: Harmony RSB Interface Relay, 2 C/O Relay 24V DC, SCHRSB2A080BD Relay, Clipsal Plug-in Relay, Schneider RSB2A080BD
Technical Specifications
- Type: Plug-in interface relay
- Series: Harmony RSB
- Contacts: 2 changeover (C/O)
- Coil Voltage: 24 V DC
- Contact Rating: 8 A at 250 V AC / 30 V DC
- Mechanical durability: 10,000,000 cycles
- Electrical durability: 100,000 cycles at rated load
- Mounting: Socket or PCB
- Operating temperature: -40°C to +70°C
- Dielectric strength: 2,500 V AC (between coil and contacts)
- Dimensions (H x L x W): 29mm x 35mm x 10mm
- Weight: 0.1 kg
Key Features
- Plug-in interface relay for easy installation and replacement
- 2 changeover (C/O) contacts for versatile switching
- 24 V DC coil voltage for compatibility with control systems
- 8 A contact rating for robust performance
- Compact design for space-saving in panels
- Part of the Harmony RSB range for reliability
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with control panel wiring and relay integration.
Applications
- Industrial automation control panels
- Building management systems
- Switching and interface applications
- General electrical control circuits
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient control and automation, reducing energy waste in industrial and building applications.
- Long operational life reduces replacement frequency and electronic waste.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Interface Relay SCHRSB2A080BD is available for immediate purchase. Ideal for industrial automation, control panels, and building management systems.
