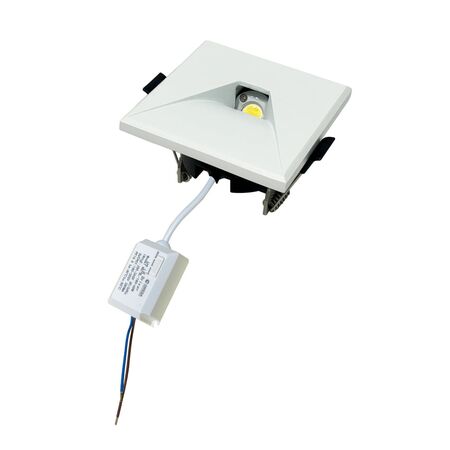

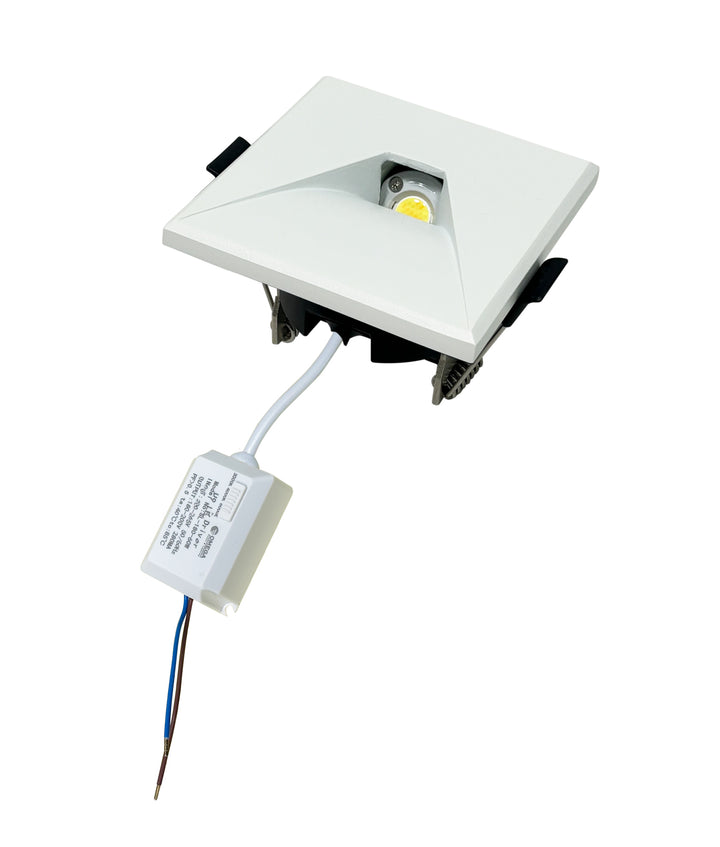

Interior LED Tri-CCT Recessed Square Step Lights | Dimmable & IP44 Rated | 3000K/4000K/6000K | by CLA Lighting
Illuminate your indoor spaces with the Interior LED Tri-CCT Recessed Square Step Lights, featuring selectable color temperatures of 3000K, 4000K, and 6000K. Designed for both residential and commercial applications, these dimmable lights provide focused step lighting with an IP44 rating for moisture resistance. Perfect for stairways, hallways, and pathways, they ensure safety and ambiance while being energy-efficient with a long lifespan of 30,000 hours.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Interior LED Tri-CCT Recessed Square Step Lights | Dimmable & IP44 Rated | 3000K/4000K/6000K | by CLA Lighting
Brand: CLA Lighting
SKU: STE31
Alternatively Known As: Recessed LED Step Light, Tri-Color Temperature Step Light, Square LED Stair Light, Dimmable LED Step Light
Technical Specifications
- Input Voltage: 220-240V AC 50/60Hz
- Wattage: 5W
- Lumens Output: 100LM / 120LM / 110LM depending on CCT
- Color Temperatures: 3000K, 4000K, 6000K selectable
- Beam Angle: 38 degrees
- Power Factor: >0.8
- CRI: 80
- Material: Aluminium housing with powder coated white finish, glass diffuser
- IP Rating: IP44 front, IP20 overall
- LED Type: COB
- Ambient Temperature Range: -20 to 50°C
- Lifetime: 30,000 hours
- Double Insulated
- Dimensions (H x L x W): 55mm x 85mm x 85mm
- Weight: 0.2 kg
Key Features
- Tri-CCT selectable (3000K, 4000K, 6000K) in one fitting
- Dimmable with external constant current LED driver
- High power factor >0.8 and CRI of 80 for quality light
- Aluminium housing with powder coated white finish and glass diffuser
- Beam angle of 38 degrees for focused step lighting
- IP44 rated front part for moisture resistance, IP20 overall
- Suitable for 2-way switching and sensor integration
- Double insulated for electrical safety
- LED chips: COB technology with 30,000 hours lifetime
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Residential: Indoor stairways and hallways
- Commercial: Hotels, offices, retail spaces
- General: Pathway and step lighting for safety and ambiance
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED technology reduces power consumption.
- Long lifespan of 30,000 hours minimizes waste and replacement frequency.
- Dimmable feature allows for reduced energy use when full brightness is not needed.
Warranty Information
2 year replacement warranty.
Available Now
Available for immediate purchase, ideal for residential and commercial indoor step lighting applications.
