Trade Discount 20%

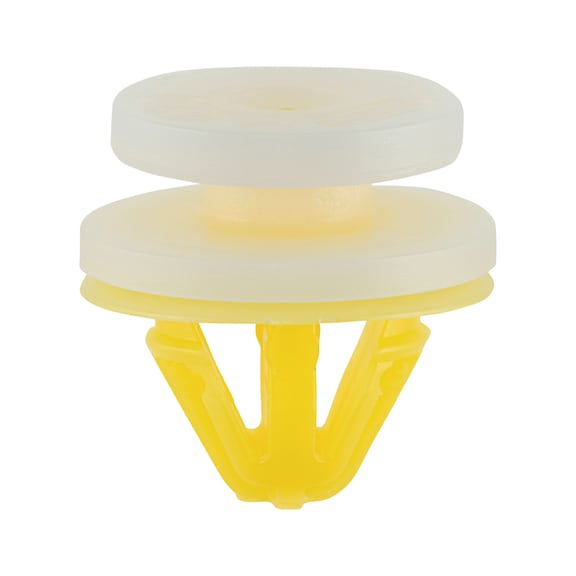

Interior Trim Clip | Universal Fit | Durable Polyoxymethylene | @Pack of 25 | by Wurth
The Interior Trim Clip is designed for universal fit in automotive interiors, made from durable polyoxymethylene for long-lasting performance. Ideal for fastening trims to carrier components, this clip is perfect for Renault, Land Rover, and Opel/Vauxhall vehicles, ensuring a secure and reliable installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Interior Trim Clip | Universal Fit | Durable Polyoxymethylene | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 501167021
Alternatively Known As: Trim Fastener Clip, Interior Panel Clip, Body Trim Clip, Automotive Trim Clip
Technical Specifications
- Min./max. drill hole diameter: 8.20-8.30 mm
- Min./max. attachment thickness: 0.70-1.50 mm

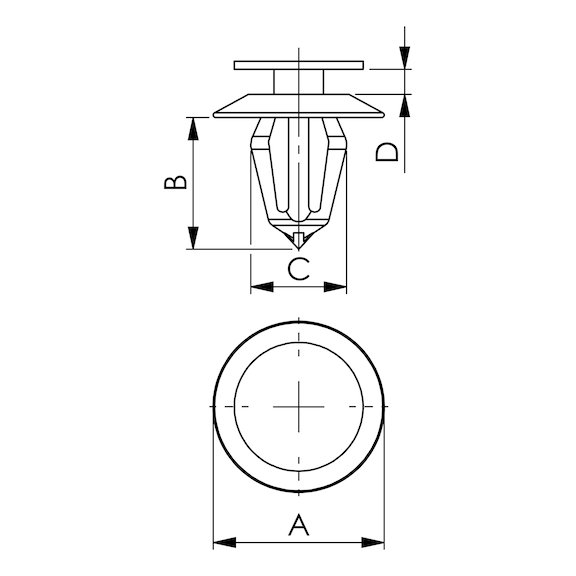

- Head diameter (A): 12.50 mm
- Length below head (B): 10.50 mm
- Core diameter (C): 6.00 mm
- Grip range head (D): 2.20 mm
- Colour: White
- Material: Polyoxymethylene
- Suitable for vehicle manufacturer: Renault, Land Rover, Opel/Vauxhall
- Installation location: Universal, Bodywork, Interior
- Type of vehicle: Universal
- Dimensions (H x L x W): 10.5mm x 12.5mm x 12.5mm
- Weight: 0.05 kg
Key Features
- Pre-mount on the trim and then insert into a corresponding hole on the base component
- Tolerance compensation is possible
- The trim can be removed
- Can also be used as a seal
Professional Installation Requirements
- Installation should be performed by a qualified automotive technician to ensure proper fit and function.
Applications
- Fastening trims to carrier components in vehicle interiors
- Universal use in bodywork and interior installation
- Suitable for Renault, Land Rover, Opel/Vauxhall vehicles
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable polyoxymethylene material reduces need for frequent replacements
- Reusable design supports waste reduction
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Interior Trim Clips are available for immediate purchase, ideal for automotive repair and assembly applications.
