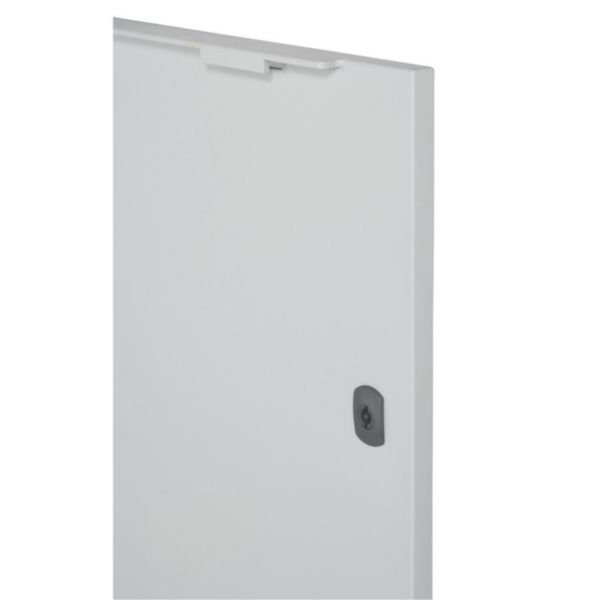

Internal Door for Cabinets | Polyester Fiberglass | IP20 Rated | Grey Color | @Each of 1 | by Legrand
The Internal Door for Cabinets is crafted from polyester fiberglass reinforced plastic, ensuring durability and a self-extinguishing temperature of 960°C. Ideal for industrial enclosures, this door features an IP20 rating and adjustable fitting for Atlantic and Marina cabinets, making it a reliable choice for electrical and electronic equipment applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Internal Door for Cabinets | Polyester Fiberglass | IP20 Rated | Grey Color | @Each of 1 | by Legrand
Brand: Legrand
SKU: 036363
Alternatively Known As: Cabinet internal door, enclosure internal door, industrial cabinet door, Legrand cabinet door
Technical Specifications
- Material: Polyester fiberglass reinforced plastic
- Thickness: 4 mm
- Colour: Grey (RAL 7035)
- Degree of protection: IP20
- Self-extinguishing temperature: 960°C (IEC EN 60695-2-11)
- Dimensions: Height 800 mm x Width 600 mm x Depth 36 mm
- Adjustable fitting for Atlantic and Marina cabinets
- Locking: Double bar key system
- Dimensions (H x L x W): 800mm x 36mm x 600mm
- Weight: 2.5 kg
Key Features
- Insulating internal door in RAL 7035 grey color
- Polyester fiberglass reinforced, 4 mm thickness
- Self-extinguishing at 960°C according to IEC EN 60695-2-11
- IP20 degree of protection
- Adjustable distance between cabinet door and internal door: 42 to 50 mm for Atlantic cabinets, more than 100 mm for Marina cabinets
- Right or left opening with captive hinge pins
- Double bar key locking system: 1 key for 400 to 600 mm height, 2 keys for height from 700 mm
- Grid lines integrated on back and center marking on front
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial enclosures to ensure proper fitting and compliance with safety standards.
Applications
- Industrial enclosures for electrical and electronic equipment
- Cabinet internal door replacement or upgrade
- Use in Atlantic stainless steel and Marina cabinets
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce need for frequent replacements
- Self-extinguishing properties enhance safety and reduce fire risk
Warranty Information
Standard Legrand warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Internal Door for Cabinets 800x600mm is available for immediate purchase, ideal for industrial enclosure applications requiring reliable internal door solutions.
