Internal Door for Cabinets | Polyester Fiberglass | IP20 Rated | Grey RAL 7035 | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 036364
$813.30 List price: $1,013.50
+

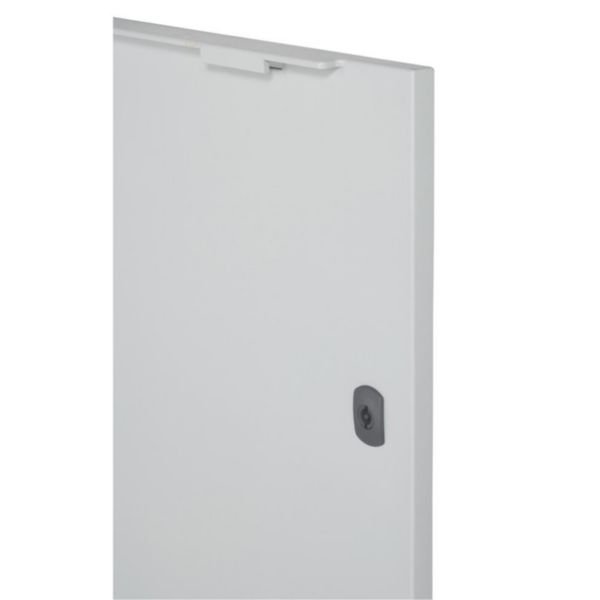

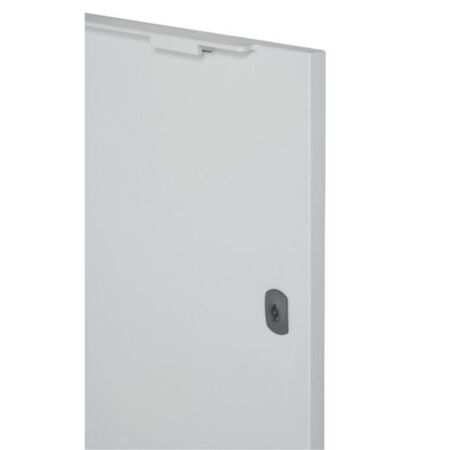

The Internal Door for Cabinets is crafted from polyester fiberglass reinforced plastic, ensuring durability and safety with a self-extinguishing temperature of 960°C. Ideal for industrial enclosures, this door features a sleek grey finish (RAL 7035) and an IP20 rating, making it perfect for electrical and electronic equipment. With adjustable mounting distances and a double bar key locking system, it’s designed for both Atlantic and Marina cabinets.

Product Name/Title: Internal Door for Cabinets | Polyester Fiberglass | IP20 Rated | Grey RAL 7035 | @Each of 1 | by Legrand

Brand: Legrand

SKU: 036364

Alternatively Known As: Cabinet internal door, enclosure internal door, industrial cabinet door, Legrand cabinet door

Technical Specifications
  • Material: Polyester fiberglass reinforced plastic
  • Colour: Grey (RAL 7035)
  • Thickness: 4 mm
  • Degree of protection: IP20
  • Self-extinguishing temperature: 960°C (IEC EN 60695-2-11)
  • Opening: Right or left with captive hinge pins
  • Locking: Double bar key system
  • Adjustable mounting distance: 42-50 mm (Atlantic), >100 mm (Marina)
  • Dimensions (H x L x W): 942mm x 36mm x 736mm
  • Weight: 2.5 kg
Key Features
  • Insulating internal door in RAL 7035 grey
  • Polyester fiberglass reinforced, 4 mm thickness
  • Self-extinguishing at 960°C according to IEC EN 60695-2-11
  • Integrated grid lines on back and centre marking on front
  • Adjustable distance between cabinet door and internal door: 42-50 mm for Atlantic cabinets, >100 mm for Marina cabinets
  • Right or left opening with captive hinge pins
  • Double bar key locking system with 1 or 2 keys depending on door height
  • IP20 degree of protection
Professional Installation Requirements
  • Installation by qualified personnel recommended to ensure proper fitting and compliance with safety standards.
Applications
  • Industrial enclosures for electrical and electronic equipment
  • Atlantic stainless steel and Marina cabinets
  • Cabinet internal door replacement or upgrade
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable materials reduce need for frequent replacements
  • Self-extinguishing properties enhance safety and reduce fire risk
Warranty Information

Standard Legrand warranty applies, typically 1 year against manufacturing defects.

Available Now

Available for immediate purchase, ideal for industrial and commercial enclosure applications.
