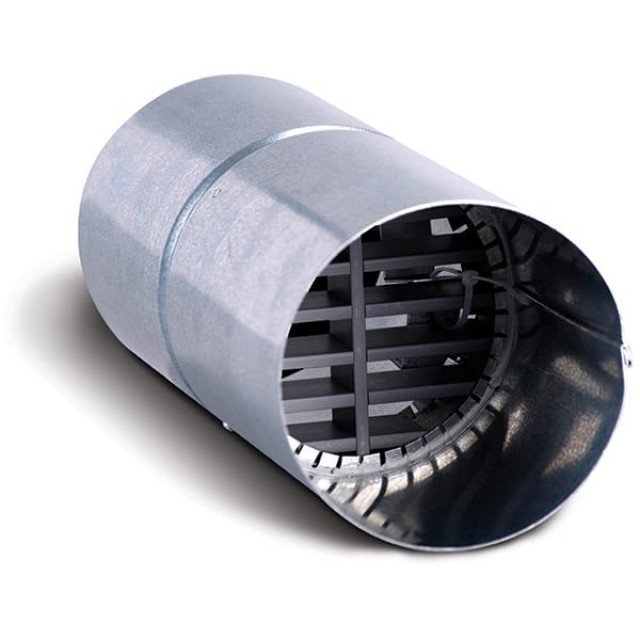

Intumescent Fire Damper Circular | Rigid Steel Frame | Up to 2 Hours Fire Protection | 250mm Width by Allvent
Intumescent fire damper circular with a rigid steel frame and up to 2 hours of fire protection—ideal for commercial ventilation systems. Built for fire-rated walls and floors, it allows airflow while ensuring safety without moving parts.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Intumescent Fire Damper Circular | Rigid Steel Frame | Up to 2 Hours Fire Protection | 250mm Width by Allvent
Brand: Allvent
SKU: ALV506
Alternatively Known As: Fire damper circular, Intumescent fire damper, Fire stop grille, Fire protection damper
Technical Specifications
- Rigid steel framed grille
- Intumescent material forms fire stop barrier
- Allows airflow through fire-rated walls and floors
- Fits into steel duct systems
- Fire protection rating: Up to 2 hours
- No moving parts requiring operational checks
- Available sizes up to 250mm width
- Dimensions (H x L x W): 300mm x 100mm x 300mm
- Weight: 2 kg
Key Features
- Rigid steel framed grille that intumesces to form a fire stop barrier
- Allows airflow through fire-rated walls and floors
- Can be fitted into a steel duct
- Provides up to 2 hours of fire protection
- Economical with no moving parts requiring operational checks
- Available up to 250mm in width
Professional Installation Requirements
- Installation should be performed by a qualified professional experienced in fire protection systems to ensure compliance and safety.
Applications
- Commercial ventilation systems
- Fire-rated walls and floors
- Steel duct installations requiring fire dampers
Standards & Compliance
- Complies with AS/NZS 1851 – Routine Service of Fire Protection Systems
Environmental Benefits
- Passive fire protection reduces the need for active fire suppression systems, lowering energy consumption.
- No moving parts reduces maintenance and replacement waste.
Warranty Information
Standard manufacturer warranty applies. Please refer to Allvent for specific warranty details.
Available Now
The Allvent Intumescent Fire Damper Circular is available now for immediate purchase. Ideal for commercial ventilation systems requiring fire protection.
