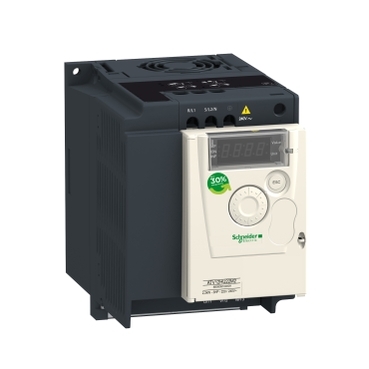

Inverter ATV12 2.2KW 240V 1PH | Compact Design | Integrated EMC Filter | Robust Protection | @Pack of 1 | by Clipsal
The Inverter ATV12 2.2KW 240V 1PH is designed for efficient motor control in industrial automation and HVAC systems. With a power rating of 2.2kW and integrated EMC filter, it ensures reduced electrical noise and high reliability. Ideal for licensed electricians, this inverter offers robust protection features, making it perfect for controlling small machines and equipment in commercial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inverter ATV12 2.2KW 240V 1PH | Compact Design | Integrated EMC Filter | Robust Protection | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV12HU22M2X
Alternatively Known As: ATV12HU22M2X, Schneider ATV12 Inverter, Variable Speed Drive 2.2kW, Single Phase VSD, Clipsal Motor Drive
Technical Specifications
- Input Voltage: 200-240V AC, single-phase
- Output Voltage: 200-240V AC, three-phase
- Power Rating: 2.2kW (3HP)
- Output Frequency: 0.5 to 400Hz
- Integrated EMC filter (C2)
- Control Method: V/F and sensorless vector control
- Operating Temperature: -10°C to +50°C (derating above 40°C)
- Protection: Overload, short-circuit, overvoltage, undervoltage, phase loss
- IP20 enclosure
- Dimensions (H x L x W): 143mm x 148mm x 72mm
- Weight: 1.3 kg
Key Features
- 2.2kW (3HP) power rating for single-phase 240V input
- Compact design for easy integration into control panels
- Integrated EMC filter for reduced electrical noise
- Simple setup and user-friendly interface
- Robust protection features: overload, short-circuit, and overvoltage
- High reliability for continuous operation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial automation: controlling small machines and equipment
- HVAC systems: fans, pumps, and compressors
- Conveyors and material handling
- General motor speed control in commercial and light industrial environments
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves energy efficiency by optimizing motor speed
- Reduces power consumption and operational costs
- Minimizes mechanical wear, extending equipment lifespan
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal Inverter ATV12 2.2KW 240V 1PH (SCHATV12HU22M2X) is available for immediate purchase. Ideal for industrial automation, HVAC, and general motor control applications.
