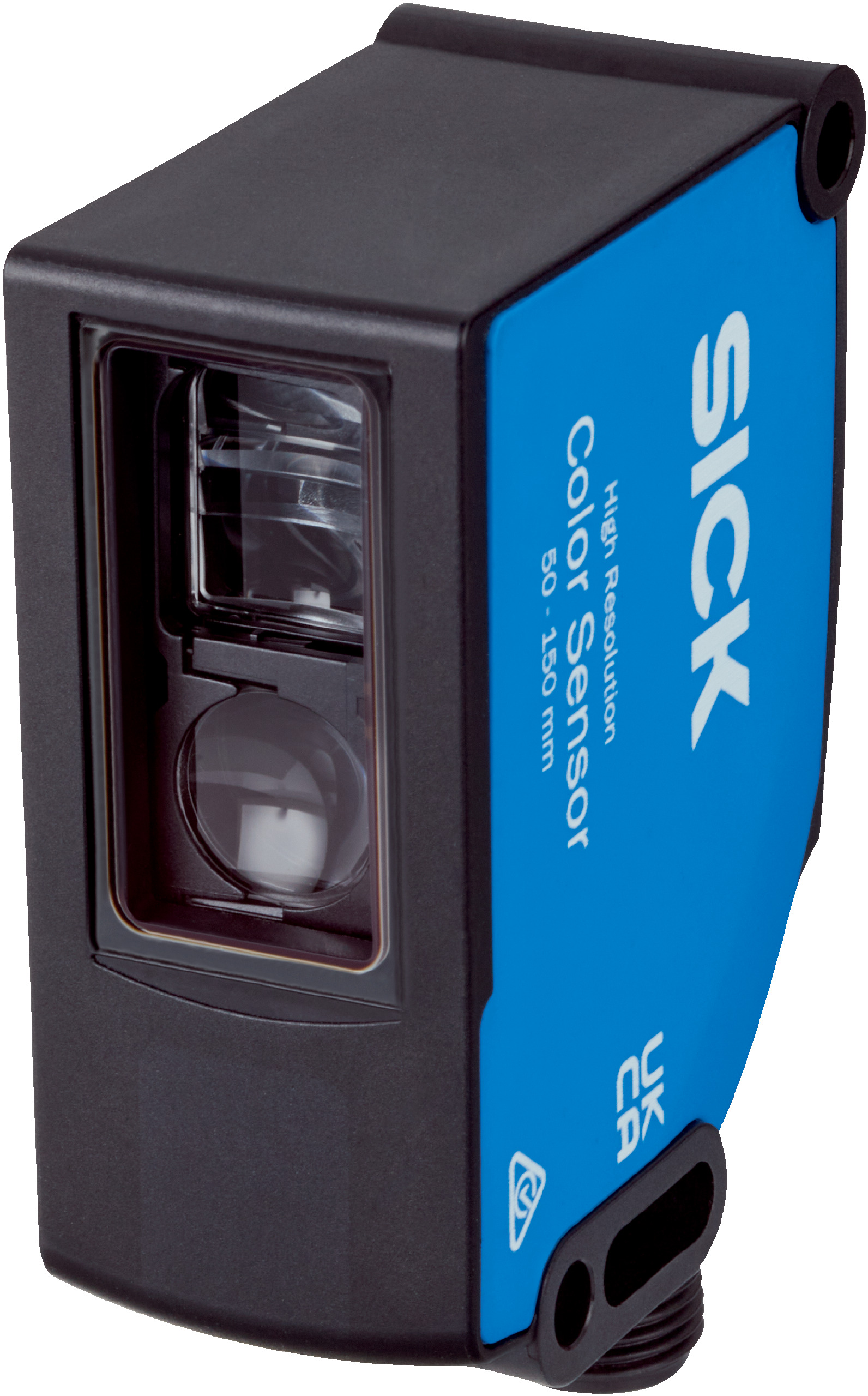

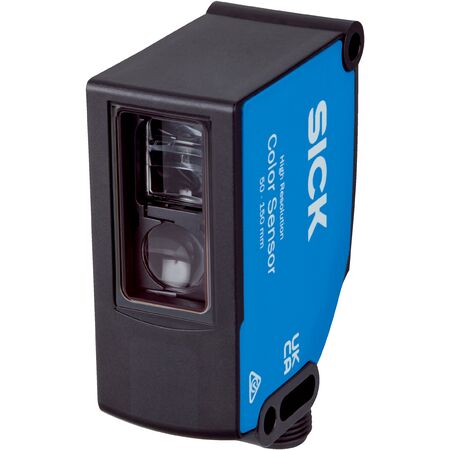

IO-Link Color Sensor CSS-WBG4C4118AA10Z | IP67 Rated | 4 kHz Switching Frequency | S-Housing Design | by SICK
The IO-Link Color Sensor CSS-WBG4C4118AA10Z is designed for precise color detection in industrial automation, featuring a robust IP67 enclosure and a fast 4 kHz switching frequency. With a sensing distance of 50 mm to 150 mm and continuous sensitivity adjustment, it's perfect for quality control, sorting, and packaging processes. Built for durability and efficiency, this sensor ensures reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: less than 150 mA
- Switching frequency: 4 kHz
- Response time: 120 µs
- Jitter: 60 µs
- Output current max: 100 mA
- Light wavelength: 450 nm, 550 nm, 610 nm
- Light spot size: 3.5 mm to 6.5 mm diameter
- Connection type: Male M12, 8-pin connector
- Safety rating: LED risk group 2
- MTTFD: 179.9 years
- Enclosure rating: IP67
- Operating temperature: -20°C to +55°C
- Storage temperature: -25°C to +75°C
- Shock load: 30 g / 11 ms per IEC 60068-2-27
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- Sensing distance from 50 mm to 150 mm
- S-housing design with LED RGB light source
- 4 hardware switching outputs and 24 virtual outputs via IO-Link
- Continuous sensitivity adjustment from 0 to 999
- Teach-in modes: single value and multi value
- Output modes: 4 colors standard, 15 colors coded
- Protection class III with reverse polarity and short-circuit protection
- Enclosure rating IP67 for harsh environments
- Operating temperature range from -20°C to +55°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and configuration, especially for IO-Link integration.
Applications
- Industrial automation for color detection
- Quality control in manufacturing
- Sorting and packaging processes
- Material identification and inspection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes waste through extended product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK CSS-WBG4C4118AA10Z Color Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
