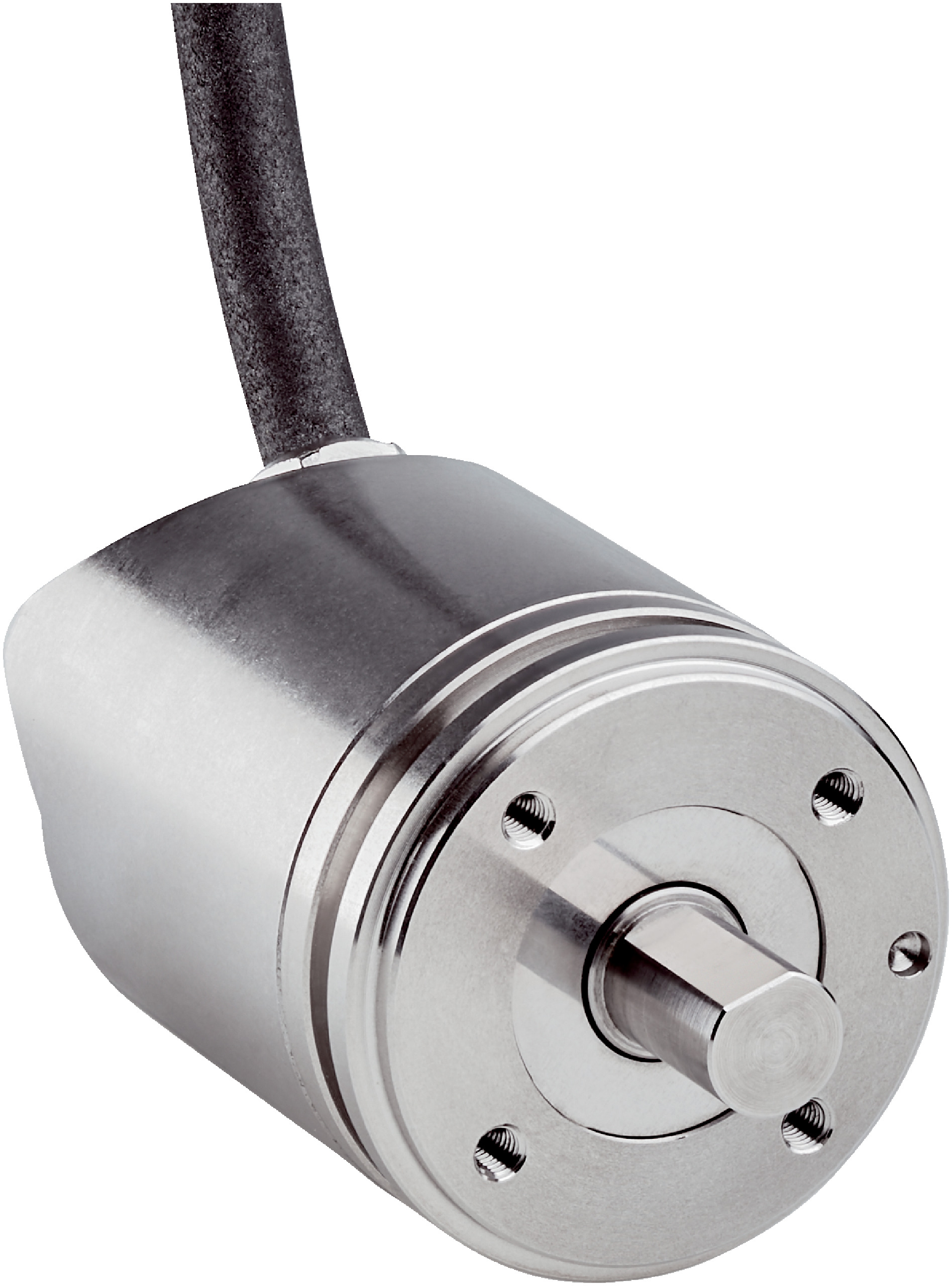

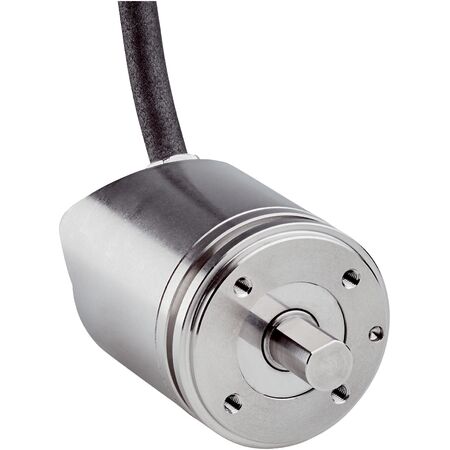

IO-Link Encoder AHS36I-S1QJ016384 | 16,384 Steps/Rev | IP67 & IP69K Rated | by SICK
The IO-Link Encoder AHS36I-S1QJ016384 offers high precision with 16,384 steps per revolution, making it ideal for industrial automation and motion control applications. With a robust stainless steel design and an IP67/IP69K rating, it withstands harsh environments while providing reliable performance. Perfect for servo motor feedback systems and machine tool monitoring, this encoder ensures low power consumption and fast initialization.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 240 years (EN ISO 13849-1)
- Number of steps per revolution: 16,384 (14 bit)
- Error limits G: 0.35° at 20°C
- Repeatability standard deviation σr: 0.2° at 20°C
- Communication interface: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Supply voltage: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Connection type: 4-wire cable, 0.5 m
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm with flat
- Operating speed: ≤ 6,000 min⁻¹
- Enclosure rating: IP67 and IP69K
- Operating temperature range: -40°C to +85°C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution (14 bit)
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust stainless steel housing and shaft materials
- IP67 and IP69K rated for harsh environments
- Wide operating temperature range from -40°C to +85°C
- Low power consumption ≤ 1.5 W with reverse polarity protection
- High mechanical durability with bearing lifetime of 3.6 x 10^8 revolutions
- Fast initialization time of 2 seconds and cycle time ≤ 3.2 ms
- Comprehensive diagnostics and status information via LED
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial automation standards to ensure proper integration and safety.
Applications
- Industrial automation for precise position and speed measurement
- Servo motor feedback systems
- Robotics and motion control
- Machine tool monitoring and control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption contributes to energy efficiency in industrial systems
- Robust design minimizes maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AHS36I-S1QJ016384 IO-Link solid shaft encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
