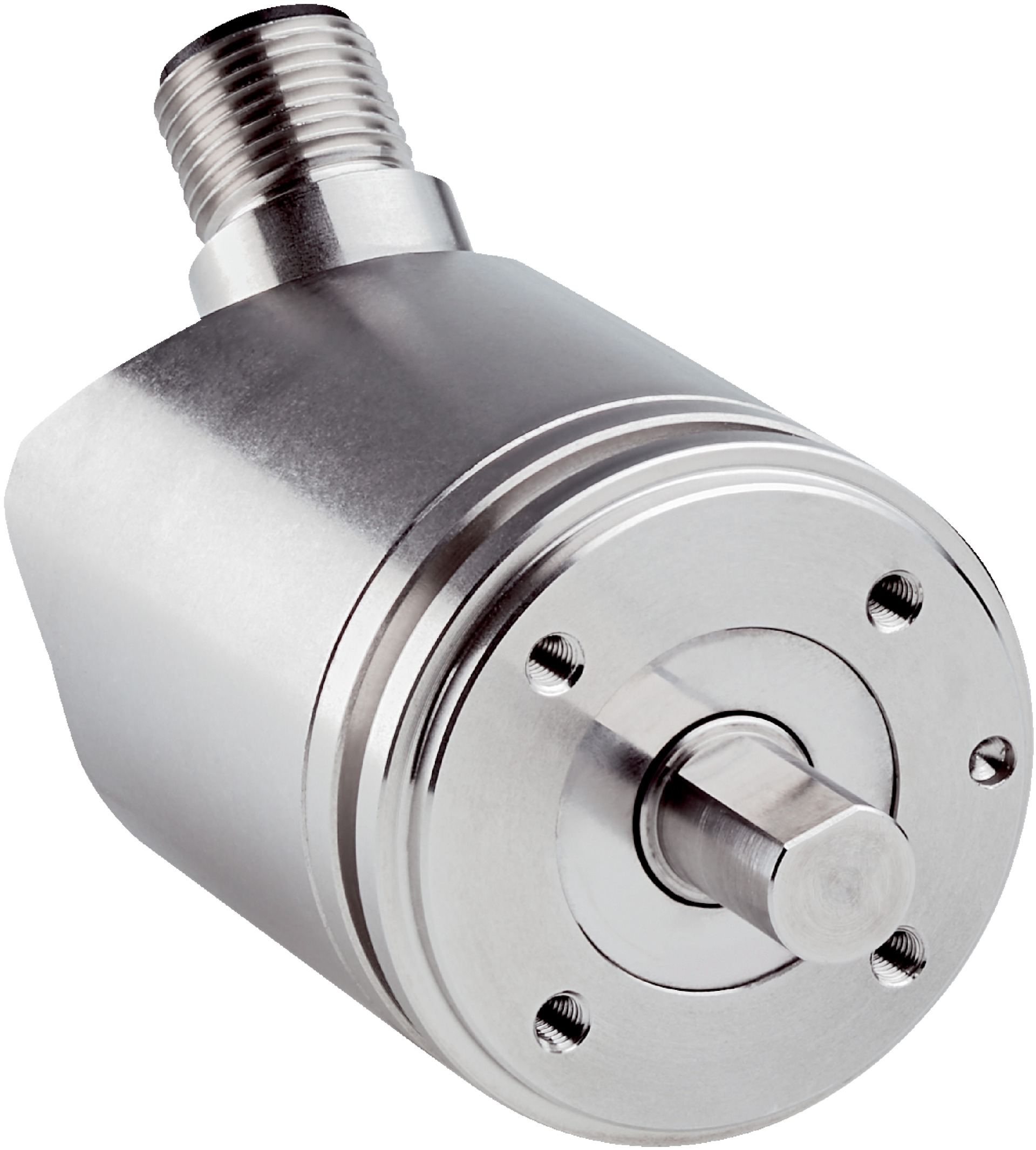

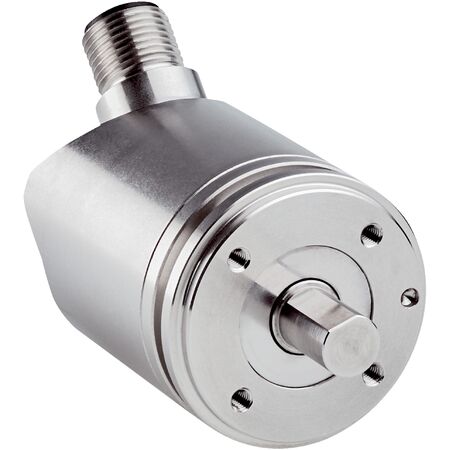

IO-Link Encoder AHS36I-S9QC016384 | 16,384 Steps/Rev | IP67 & IP69K Rated | by SICK
The IO-Link Encoder AHS36I-S9QC016384 delivers high precision with 16,384 steps per revolution, making it ideal for industrial automation and motion control applications. With robust IP67 and IP69K ratings, it withstands harsh environments while offering low power consumption and extensive diagnostics. Perfect for servo motor feedback systems and robotics, this encoder ensures reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Resolution: 16,384 steps per revolution (14 bit)
- Error limits: 0.35° at 20 °C
- Repeatability standard deviation: 0.2° at 20 °C
- Communication: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Supply voltage: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Connection: Male M12, 4-pin connector
- Shaft diameter: 8 mm with flat
- Operating speed: ≤ 6,000 min⁻¹
- Operating temperature: -40 °C to +85 °C
- Enclosure rating: IP67 and IP69K
- Bearing lifetime: 3.6 x 10^8 revolutions
- Permissible shaft loading: 40 N radial, 20 N axial
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution (14 bit)
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust stainless steel housing and shaft materials
- IP67 and IP69K rated for harsh environments
- Wide operating temperature range from -40 °C to +85 °C
- Low power consumption ≤ 1.5 W with reverse polarity protection
- Safety-related mean time to dangerous failure (MTTFD) of 240 years
- Supports extensive diagnostics and parameterization
- Solid shaft with servo flange and flat for secure mounting
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial automation systems to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise position and speed measurement
- Servo motor feedback systems
- Robotics and motion control
- Factory automation requiring high reliability and safety
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption contributes to energy efficiency in automation systems
- Robust design minimizes maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AHS36I-S9QC016384 IO-Link Encoder is available for immediate purchase, ideal for industrial automation and motion control applications requiring high precision and reliability.
