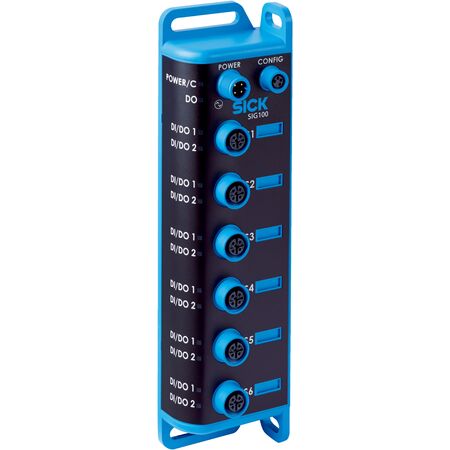

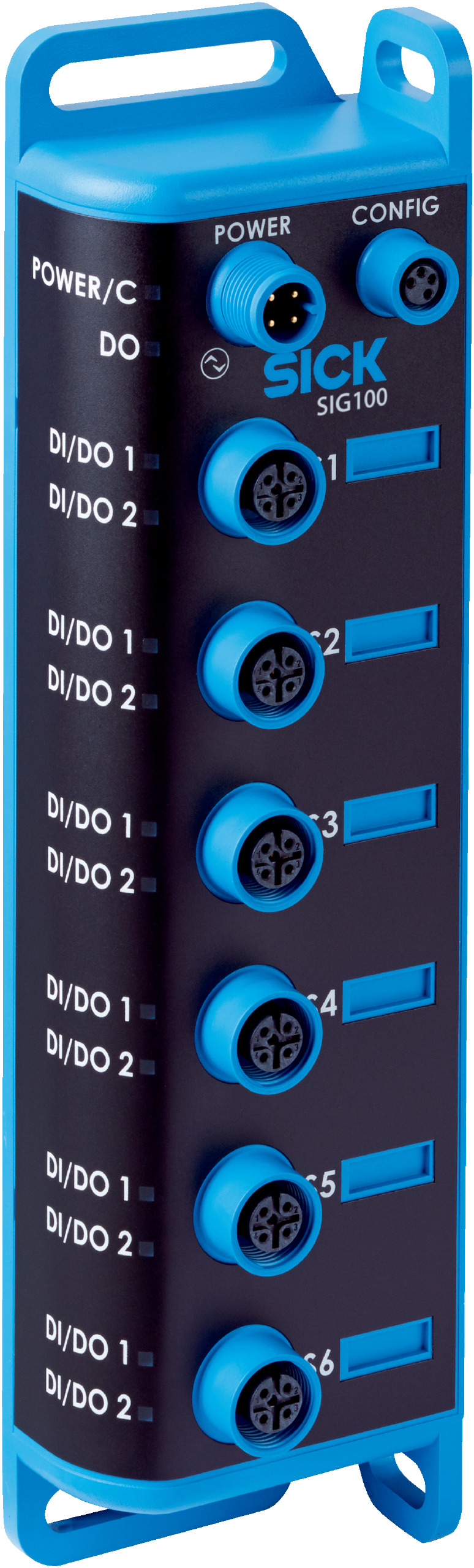

IO-Link Hub SIG100-0A0111100 | 6 Ports for Sensor Integration | IP67 Rated | by SICK
The IO-Link Hub SIG100-0A0111100 is designed for seamless sensor integration in industrial automation, featuring 6 ports for connecting binary switching sensors and actuators. With an IP67 rated enclosure and a wide operating temperature range of -40 °C to +60 °C, this hub ensures reliable performance in harsh environments. Ideal for professionals looking to simplify wiring complexity and enhance automation efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Power supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 50 mA to ≤ 500 mA at 24 V DC
- Communication interfaces: USB 2.0 (USB-A), IO-Link V1.1 Port Class A
- IO-Link data transmission rate: up to 38.4 kBaud
- IO-Link cycle time: less than 5.1 ms
- Process data length: 8 Byte input, 2 Byte output
- Enclosure rating: IP67
- Protection class: III
- Housing material: ABS plastic
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Electromagnetic compatibility: EN 61000-6-2:2005-08 / EN 61000-6-3:2007-01
- Shock load tested to EN 60068-2-6
- Dimensions (H x L x W): 38mm x 214mm x 57mm
- Weight: 0.289 kg
Key Features
- IO-Link sensor hub with 6 ports supporting connection of sensors and actuators
- USB connection for easy configuration with SOPAS ET engineering tool
- Logic editor available for simple logic function configuration
- IP67 rated enclosure for robust industrial use
- Supports up to 12 digital input or output signals
- Operating temperature range from -40 °C to +60 °C
- 12 orange LEDs and 2 additional LEDs for status indication
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial electrical standards to ensure proper configuration and safety.
Applications
- Industrial automation for connecting binary switching sensors and actuators
- Integration of up to 12 binary switching signals via IO-Link
- Standalone operation with configurable logic functions via SOPAS ET software
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enables efficient sensor integration reducing wiring complexity and material use
- Supports energy-efficient automation systems through precise sensor communication
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK SIG100-0A0111100 IO-Link Hub is available for immediate purchase, ideal for industrial automation and sensor integration applications.
