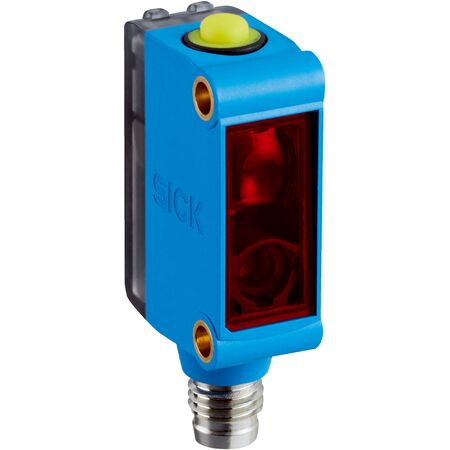

IO-Link Laser Proximity Sensor | 250 mm Sensing Distance | IP67 Rated | by SICK
The IO-Link Laser Proximity Sensor is designed for precise object detection with a sensing distance of up to 250 mm and a red laser light source at 680 nm. Ideal for industrial automation, this sensor features a high switching frequency of 1.5 kHz and is housed in a durable IP67 enclosure, making it perfect for manufacturing process control and quality inspection systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 250 mm with ±30 mm tolerance
- Light source: Red laser, 680 nm wavelength, Laser class I
- Light emission: Long side of housing with Ø 1.8 mm spot size at 250 mm
- Max. web speed: 10 m/s
- Adjustment: 2-point teach-in static/dynamic and proximity to mark
- IO-Link V1.1 interface with 38.4 kbit/s data rate and 2.3 ms cycle time
- Digital outputs: 2 NPN switching outputs, max 100 mA output current
- Supply voltage: 10 V DC to 30 V DC with ≤ 5 V pp ripple
- Switching frequency: 1.5 kHz, response time: 333 µs
- Accuracy: 0.15 mm, switching mode: light/dark switching
- Protection class: III, IP67 enclosure rating
- Housing material: ABS, optics material: PMMA
- Connection: Male M8, 4-pin connector
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Sensing distance up to 250 mm with ±30 mm tolerance
- Red laser light source with 680 nm wavelength, laser class I
- IO-Link V1.1 communication with 38.4 kbit/s data transmission rate
- Two digital NPN switching outputs with light/dark switching mode
- High switching frequency of 1.5 kHz and response time of 333 µs
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -20 °C to +50 °C
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with IO-Link devices and industrial sensor wiring to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection and positioning
- Manufacturing process control
- Quality inspection systems
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK KTM-LN557A1P laser sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
