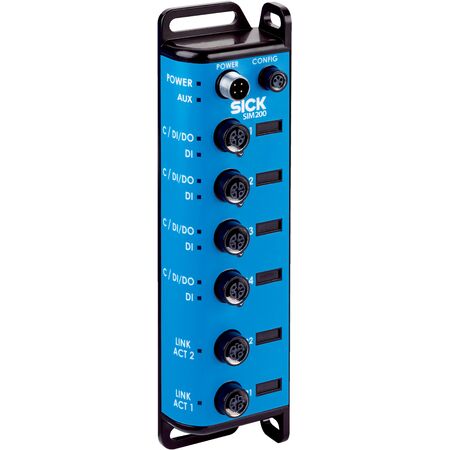

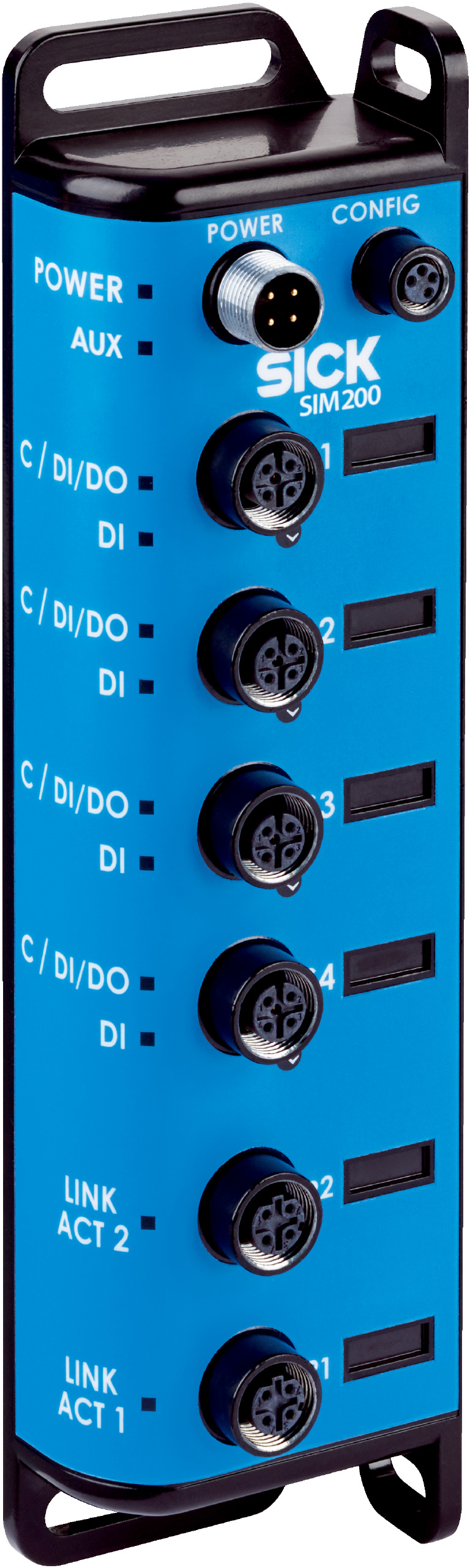

IO-Link Master Controller SIM200-0P0G12200 | ARM Cortex M7 | IP67 Enclosure | 4 GB Flash Memory | by SICK
The IO-Link Master Controller SIM200-0P0G12200 is a programmable device featuring an ARM Cortex M7 processor and 4 GB of flash memory, making it ideal for industrial automation and data management. With an IP67 enclosure rating, it ensures durability in harsh environments while supporting various IO-Link sensors and devices. Perfect for professionals seeking reliable communication and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Processor: ARM Cortex M7 + NetX51
- RAM: 512 MB (netX51)
- Flash Memory: 4 GB
- Power Supply: 10 V DC to 30 V DC
- Power Consumption: ≤ 4.2 W (without sensors)
- Power Output: ≤ 72 W total
- Output Current S1-S4 pin 4: ≤ 200 mA
- Output Current S1-S4 pin 1: ≤ 500 mA
- Enclosure Rating: IP67
- Protection Class: III
- Housing Material: Zinc
- Operating Temperature: -40 °C to +55 °C
- Ethernet: 2 x M12, 4-pin female, D-coded, 10/100 Mbit/s
- IO-Link: Version 1.1, Port Class A, Data rate ≤ 230 kBaud
- USB: Via CONFIG port for configuration
- Operator Interfaces: Web server GUI, SICK AppStudio, SICK AppManager
- Dimensions (H x L x W): 38.3mm x 213.9mm x 57mm
- Weight: 0.52 kg
Key Features
- Programmable device with ARM Cortex M7 + NetX51 processor
- 512 MB RAM and 4 GB flash memory for extensive data handling
- Supports IO-Link sensors and digital input/output sensors
- Multiple M12 and M8 connectors for power, IO-Link master, Ethernet, and configuration
- Power consumption ≤ 4.2 W without connected sensors
- Total power output up to 72 W across all connections
- Enclosure rated IP67 for dust and water protection
- Housing made of durable zinc material
- Operating temperature range from -40 °C to +55 °C
- Web server GUI and SICK AppStudio for programming and configuration
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and communication systems to ensure compliance with safety and operational standards.
Applications
- Data recording, evaluation, and archiving in industrial automation
- Integration with IO-Link sensors and devices with digital inputs and outputs
- Industrial communication and control systems requiring robust programmable devices
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption design reduces energy usage in industrial applications
- Durable IP67 rated housing extends product life and reduces waste
- Supports efficient data management to optimize industrial processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK SIM200-0P0G12200 is available for immediate purchase, ideal for industrial automation and data management applications.
