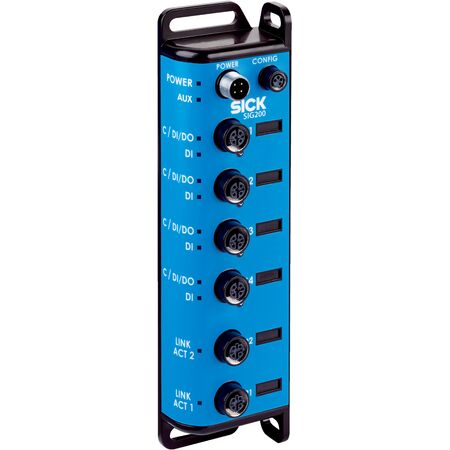

IO-Link Master Gateway SIG200-0A0412200 | 4 Configurable Ports | IP67 Enclosure | by SICK
The IO-Link Master Gateway SIG200-0A0412200 is designed for seamless industrial automation, featuring 4 configurable IO-Link ports and multiple communication interfaces including USB and Ethernet. With a robust IP67-rated zinc housing and a wide operating temperature range from -40 °C to +55 °C, it's perfect for connecting IO-Link devices and integrating sensor data into PLCs or cloud applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Power supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 175 mA to ≤ 3000 mA at 24 V DC
- Connections: 4 x M12 5-pin female IO-Link ports, 1 x M12 4-pin power plug, 2 x M12 4-pin Ethernet ports, 1 x M8 4-pin USB configuration port
- Communication interfaces: IO-Link, USB, Ethernet, PROFINET, REST API
- IO-Link version: V1.1, V1.0
- Number of IO-Link ports: 4 configurable ports
- Enclosure rating: IP67
- Housing material: Zinc
- Operating temperature range: -40 °C to +55 °C
- Storage temperature range: -40 °C to +75 °C
- EMC standards: EN 61000-6-2:2005-08, EN 61000-6-3:2007-01
- Shock load standard: EN 60068-2-6
- Protection class: III
- Initialization time after switch on: 60 seconds plus additional time for IODD installation
- Dimensions (H x L x W): 38mm x 214mm x 57mm
- Weight: 0.52 kg
Key Features
- IO-Link master with 4 configurable ports supporting IO-Link devices and binary sensors/actuators
- Integrated web server and USB connection for easy configuration with SOPAS ET engineering tool
- Logic editor available for simple logic function configuration
- Multiple communication interfaces including IO-Link, USB, Ethernet, PROFINET, and REST API
- Robust zinc housing with IP67 enclosure rating and protection class III
- Wide operating temperature range from -40 °C to +55 °C
- LED indicators for IO-Link ports, Ethernet ports, power, and error communication
Professional Installation Requirements
- Installation and configuration should be performed by qualified industrial automation professionals familiar with IO-Link systems and network integration.
Applications
- Industrial automation for connecting IO-Link devices, binary actuators, and binary switching sensors
- Integration of sensor data to PLCs or cloud applications via REST API
- Standalone system operation with configurable logic functions using SOPAS ET
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enables efficient sensor integration reducing wiring complexity and material waste
- Supports energy-efficient industrial automation through optimized device communication
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK SIG200-0A0412200 IO-Link Master Sensor Integration Gateway is available for immediate purchase, ideal for industrial automation and sensor integration applications.
