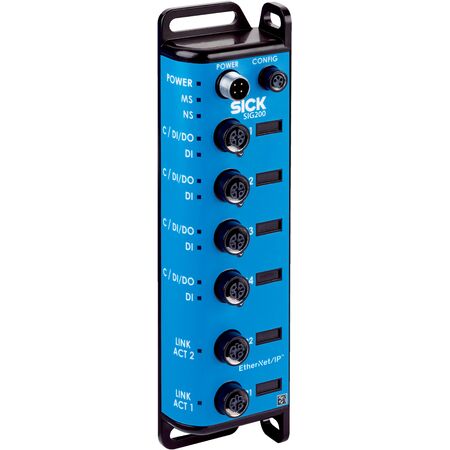

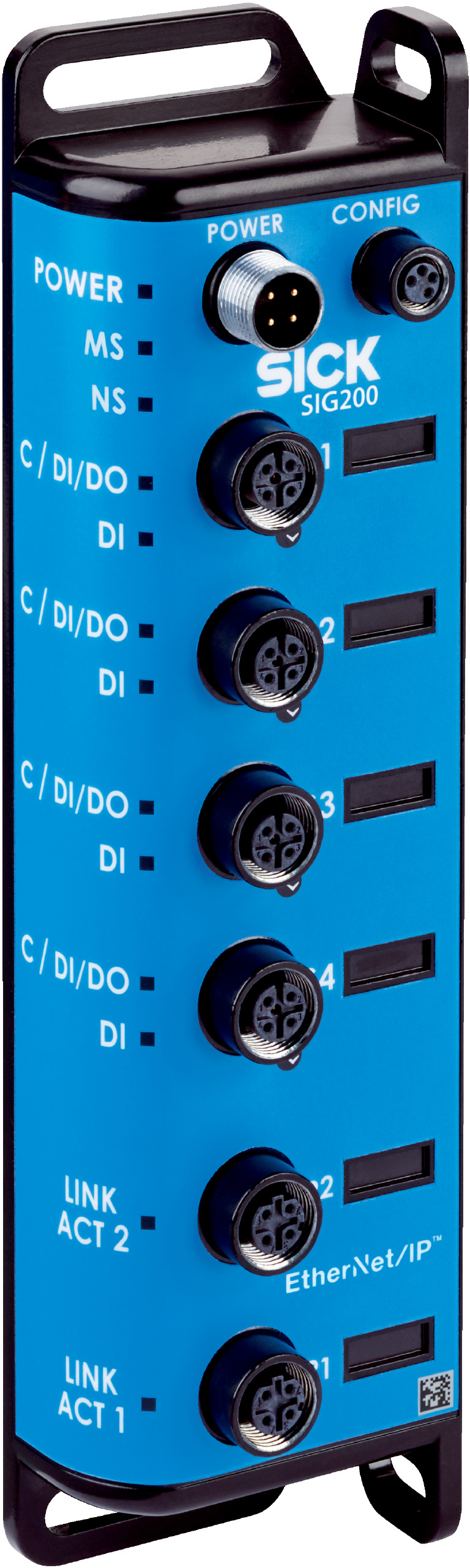

IO-Link Master Gateway SIG200-0A0512200 | 4 Configurable Ports | IP67 Enclosure | by SICK
The IO-Link Master Gateway SIG200-0A0512200 is designed for seamless integration of IO-Link devices in industrial automation. With four configurable ports and multiple communication interfaces including Ethernet and REST API, it simplifies sensor data management. Built for robust performance, its IP67-rated zinc housing ensures durability in harsh environments, making it ideal for connecting sensors and actuators in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Power supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 175 mA, ≤ 3,000 mA at 24 V DC
- Connections: 4 x M12 5-pin female IO-Link ports (A-coded), 1 x M12 4-pin power plug (A-coded), 2 x M12 4-pin Ethernet ports (D-coded), 1 x M8 4-pin USB configuration port
- Communication interfaces: IO-Link V1.0/V1.1, USB 2.0, Ethernet, EtherNet/IP™, REST API
- Input/output: Max 8 x PNP inputs or 4 x IO-Link inputs, Max 4 x PNP outputs, Max output frequency 50 Hz
- Enclosure rating: IP67
- Housing material: Zinc
- Operating temperature range: -40 °C to +55 °C
- Storage temperature range: -40 °C to +75 °C
- EMC standards: EN 61000-6-2:2005-08, EN 61000-6-3:2007-01
- Shock load standard: EN 60068-2-6
- Initialization time after power on: 70 seconds plus IODD installation time
- Dimensions (H x L x W): 38mm x 214mm x 57mm
- Weight: 0.52 kg
Key Features
- IO-Link master with 4 configurable ports supporting IO-Link devices and binary sensors/actuators
- Integrated web server and USB connection for easy configuration with SOPAS ET engineering tool
- Logic editor available for simple logic function configuration
- Multiple communication interfaces including IO-Link, USB, Ethernet, EtherNet/IP™, and REST API
- Robust zinc housing with IP67 enclosure rating and protection class III
- LED indicators for IO-Link ports, Ethernet ports, power, module status, and network status
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial automation and IO-Link systems to ensure proper setup and safety.
Applications
- Industrial automation for connecting IO-Link devices, binary actuators, and switching sensors
- Integration of sensor data to PLCs or cloud applications via REST API
- Standalone operation with configurable logic functions using SOPAS ET software
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient sensor integration reducing wiring complexity and material waste
- Supports energy-efficient automation by facilitating precise sensor data communication
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK SIG200-0A0512200 IO-Link Master Sensor Integration Gateway is available for immediate purchase, ideal for industrial automation and sensor integration applications.
