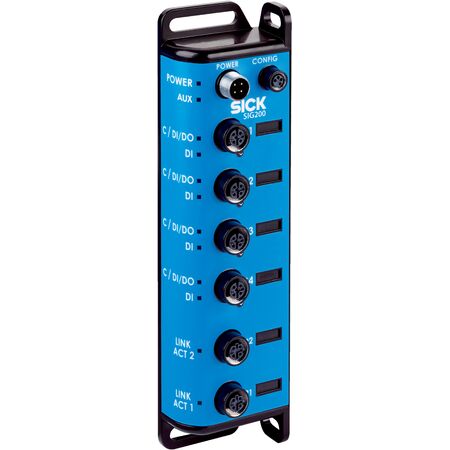

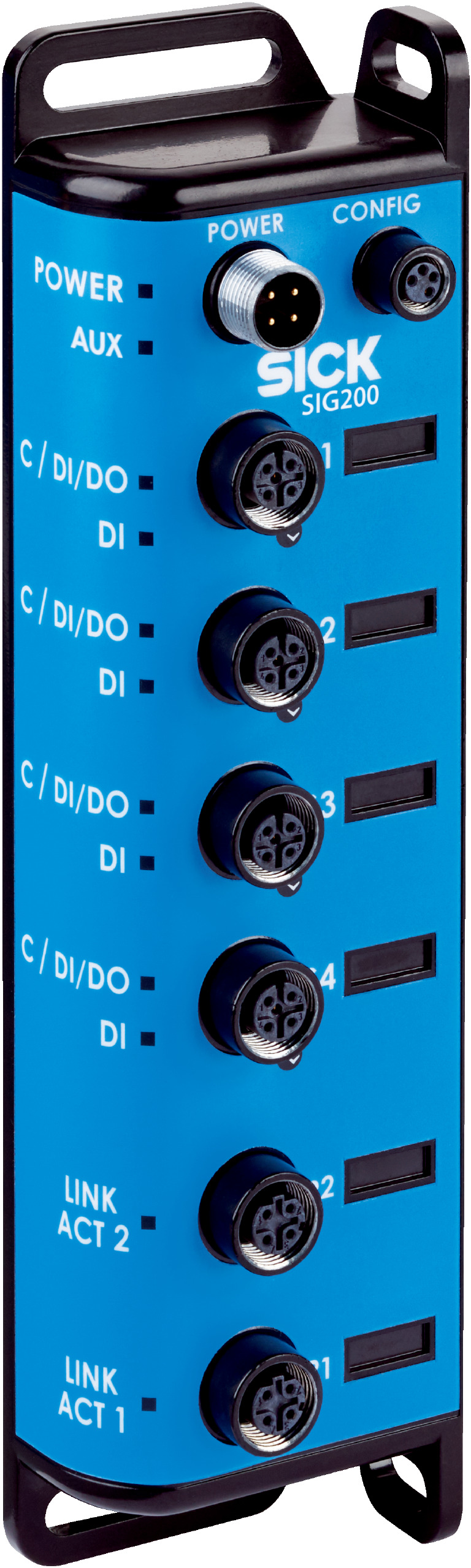

IO-Link Master Gateway SIG200-0A0G12200 | 4 Configurable Ports | IP67 Enclosure | by SICK
The IO-Link Master Gateway SIG200-0A0G12200 is designed for seamless integration of IO-Link devices in industrial automation. With four configurable ports and multiple communication interfaces including USB and Ethernet, it simplifies sensor connectivity and data management. Built for robust performance, it operates in extreme temperatures from -40°C to +55°C, making it ideal for various industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Power supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 175 mA to ≤ 3,000 mA at 24 V DC
- Connections: 4 x M12 5-pin female IO-Link ports, 1 x M12 4-pin power plug, 2 x M12 4-pin Ethernet ports, 1 x M8 4-pin USB configuration port
- Communication interfaces: IO-Link V1.0/V1.1, USB 2.0, Ethernet, REST API
- Input/output: Max 8 x PNP inputs or 4 x IO-Link inputs, Max 4 x PNP outputs
- Enclosure rating: IP67
- Housing material: Zinc
- Operating temperature: -40°C to +55°C
- Shock load tested to EN 60068-2-6
- EMC compliance: EN 61000-6-2:2005-08 / EN 61000-6-3:2007-01
- Dimensions (H x L x W): 38mm x 214mm x 57mm
- Weight: 0.52 kg
Key Features
- IO-Link master with 4 configurable ports supporting IO-Link devices and binary sensors/actuators
- Integrated web server and USB connection for easy configuration with SOPAS ET
- Logic editor available for simple logic function configuration
- Multiple communication interfaces: IO-Link, USB, Ethernet, REST API
- Robust zinc housing with IP67 enclosure rating and protection class III
- Wide operating temperature range from -40°C to +55°C
- LED indicators for IO-Link ports, Ethernet ports, power, and auxiliary status
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial automation and IO-Link systems to ensure proper setup and safety.
Applications
- Industrial automation for connecting IO-Link devices, binary actuators, and switching sensors
- Integration of sensor data to PLCs or cloud applications via REST API
- Standalone system operation with configurable logic functions using SOPAS ET
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient sensor integration reducing wiring complexity and material waste
- Supports digital communication reducing energy consumption compared to analog systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK SIG200-0A0G12200 IO-Link Master Sensor Integration Gateway is available for immediate purchase, ideal for industrial automation and sensor integration applications.
