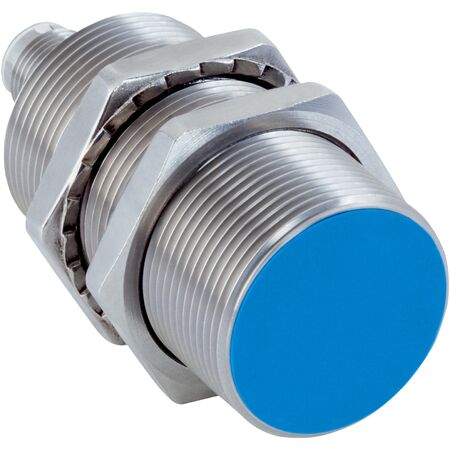

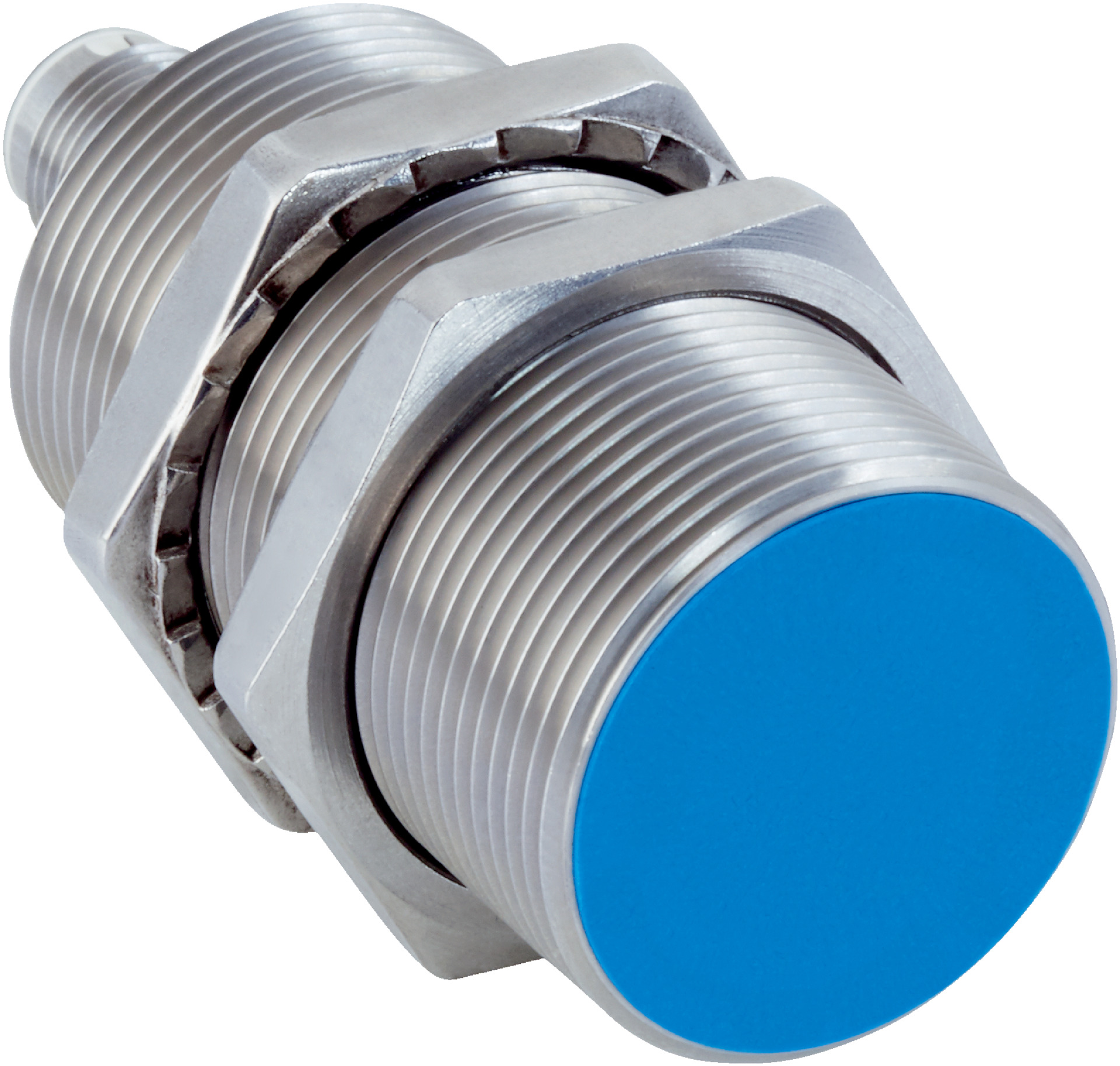

IO-Link Proximity Sensor M30 | Stainless Steel Housing | 15mm Sensing Range | 200Hz Switching Frequency | by SICK
The IO-Link Proximity Sensor M30 is designed for industrial automation, featuring a robust stainless steel housing and a sensing range of up to 15 mm. With a high switching frequency of 200 Hz and programmable hysteresis, it's perfect for object detection in harsh environments, ensuring reliable performance even in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Programmable hysteresis
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current: ≤ 200 mA
- Switching frequency: 200 Hz
- Resolution typical: 25 μm (0-6 mm), 75 μm (6-10 mm), 300 μm (10-15 mm)
- Resolution maximum: 50 μm (0-6 mm), 150 μm (6-10 mm), 500 μm (10-15 mm)
- Communication interface: IO-Link V1.1 COM2 (38.4 kBaud)
- Cycle time: 5 ms
- Process data length: 32 Bit
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Enclosure rating: IP68, IP69K
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.15 kg
Key Features
- Metric housing with M30 x 1.5 thread size
- Sensing range up to 15 mm with safe sensing range of 12.15 mm
- Up to 4 adjustable switching points or windows
- Switching modes include single point, window mode, two point mode with visual adjustment indicator
- High switching frequency of 200 Hz
- Flush installation type with male M12 4-pin connector
- PNP programmable switching output with NC/NO function
- Electrical wiring DC 4-wire with short-circuit and power-up pulse protection
- Enclosure rating IP68 and IP69K for harsh environments
- Smart Task functionality with IO-Link communication interface
- Resistant against coolant lubricants
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303) with plastic sensing face
- Wide ambient operating temperature range from -40 °C to +75 °C
- Shock and vibration resistant
- Includes mounting nut made of V2A stainless steel with locking teeth
Professional Installation Requirements
- Installation by qualified personnel recommended; ensure proper mounting torque and connector wiring according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
- Time measurement and debouncing tasks in manufacturing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient DC 4-wire operation minimizes power consumption
- Resistant to harsh environments reducing environmental contamination risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMC30-15BPPVC0SA70 proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
