IO-Link Proximity Sensor | Stainless Steel Housing | 4mm Diameter | 4000 Hz Switching Frequency | by SICK
The IO-Link Proximity Sensor is designed for industrial automation, featuring a durable stainless steel housing and a sensing range of 2.5 mm. With a high switching frequency of 4,000 Hz and an IP67 rating for dust and water protection, this sensor is perfect for precise object detection and metal detection in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 30 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 100 mA
- Cable material: PUR, diameter 2.9 mm
- Switching output: PNP, normally open (NO)
- Switching frequency: 4,000 Hz
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- Dimensions (H x L x W): 4mm x 25mm x 4mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Diameter of 4 mm with quasi-flush installation type
- Sensing range of 2.5 mm and safe sensing range of 2.025 mm
- High switching frequency of 4,000 Hz with PNP NO output
- Cable with M8 3-pin connector, 0.2 m length
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication interface
- Triple sensing range and short-circuit plus power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Operating temperature range from -10 °C to +60 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct quasi-flush mounting and proper electrical connection with M8 connector.
Applications
- Industrial automation for object detection
- Metal detection in manufacturing processes
- Safety and monitoring in machinery
- Factory automation requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient DC 3-wire electrical wiring
- IO-Link interface enables predictive maintenance reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

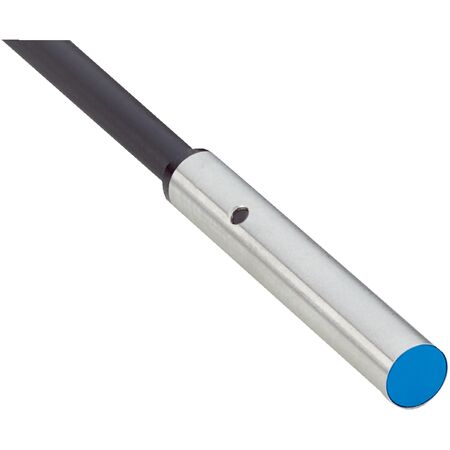

The SICK IHM04-2B5PSVR8S proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
