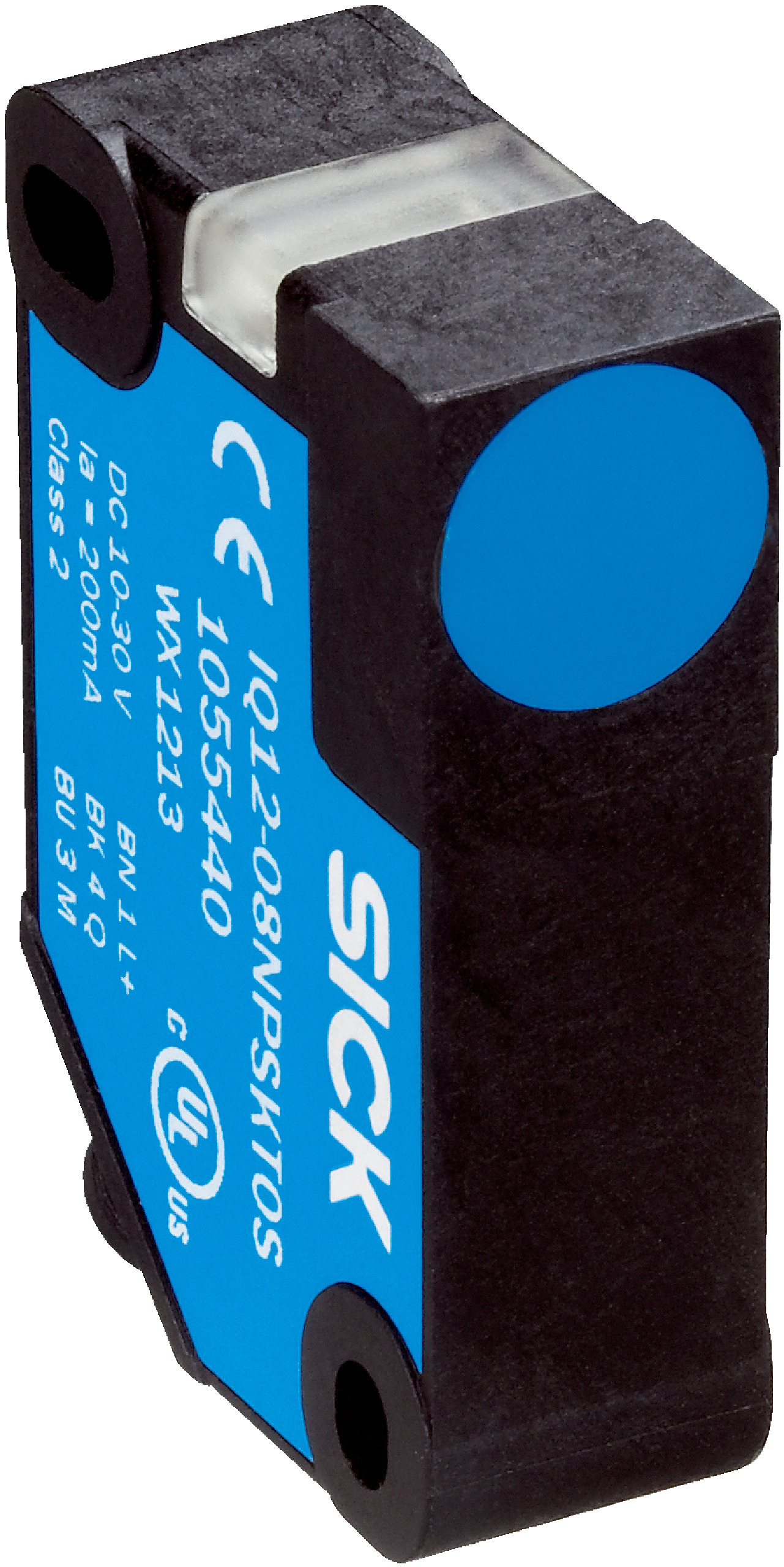

IO-Link Rectangular Proximity Sensor | 4mm Sensing Range | 1000 Hz Switching Frequency | IP68 Rated | by SICK
The IO-Link Rectangular Proximity Sensor is designed for industrial automation, featuring a sensing range of up to 4 mm and a high switching frequency of 1000 Hz. Ideal for precise object detection and machine safety, this sensor supports up to 4 adjustable switching points and offers robust IP68 protection, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range Sn: 0 mm to 4 mm
- Safe sensing range Sa: 3.24 mm
- Number of switching points: Up to 4 adjustable
- Switching frequency: 1000 Hz
- Connection: Cable with M12 male connector, 4-pin, 0.2 m
- Switching output: PNP, programmable NC/NO
- Electrical wiring: DC 4-wire, 10 V DC to 30 V DC supply voltage
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: Programmable
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: 35 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing and sensing face material: Plastic, VISTAL®
- Teach-in accuracy: ±3% of sensing range
- Resolution typical: 20 μm (0 mm ... 4 mm)
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 5 ms
- Process data length: 32 Bit
- Dimensions (H x L x W): 40mm x 26mm x 12mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP68 rating for robust protection
- Sensing range up to 4 mm with programmable switching points
- Supports up to 4 adjustable switching points or windows
- Multiple switching modes including single point and window mode
- High switching frequency of 1000 Hz
- Flush installation type with cable and M12 male connector
- PNP programmable switching output with NC/NO function
- Smart Task functionality with counter and debouncing
- IO-Link V1.1 communication interface with 5 ms cycle time
- Short-circuit and power-up pulse protection
- Wide ambient operating temperature from -25 °C to +75 °C
- Shock and vibration resistant
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with IO-Link sensor systems and industrial wiring standards.
Applications
- Industrial automation for precise object detection
- Machine safety and control systems
- Counting and positioning in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP68 housing reduces need for frequent replacements
- Energy-efficient operation with low power consumption
- Supports smart task functions to optimize process efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IQC12-04BPPKQ8SA71 sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise sensing and programmable outputs.
