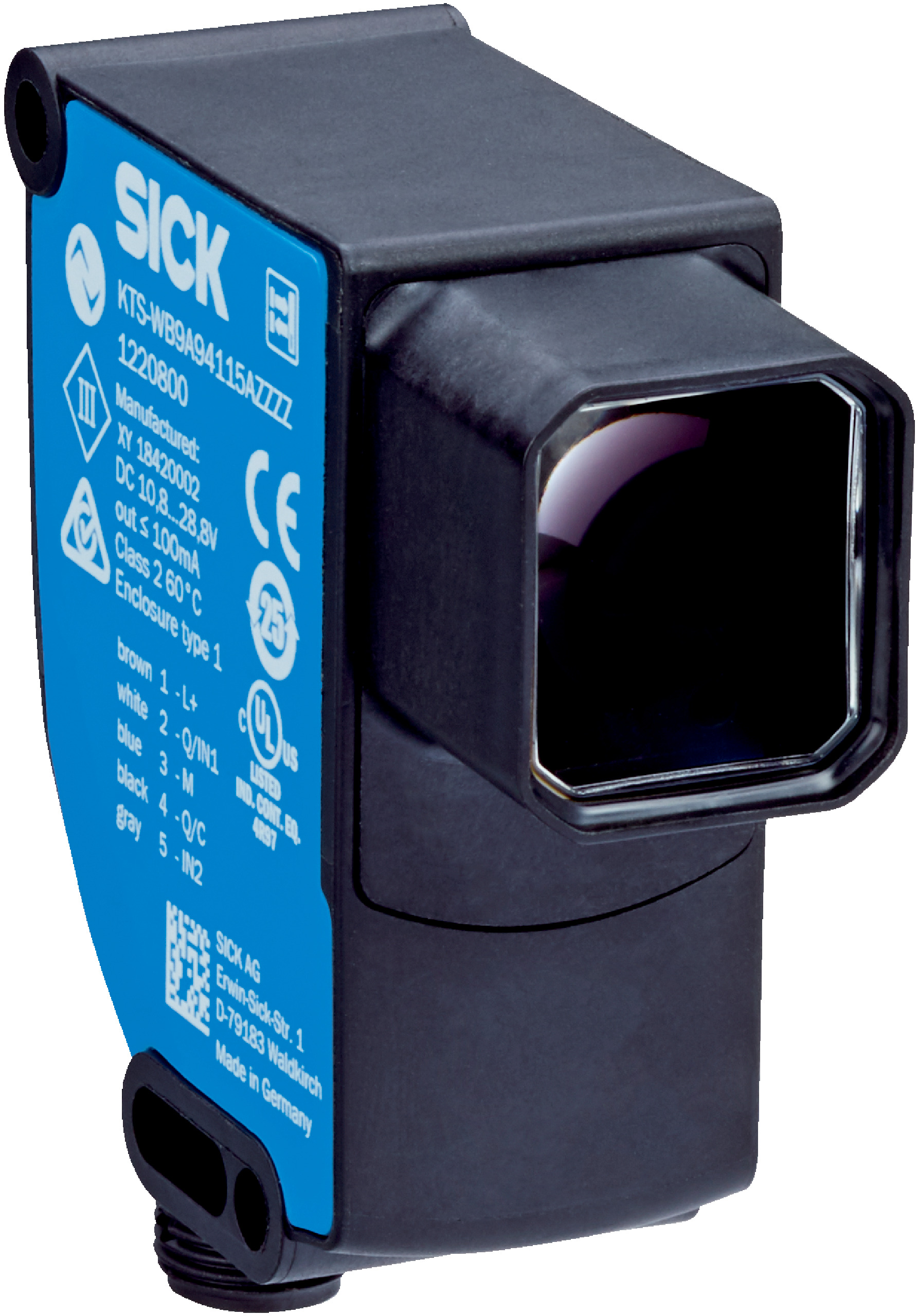

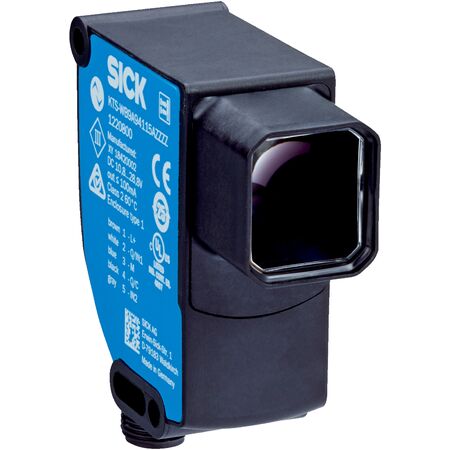

IO-Link RGB Sensor KTS-WB9A34115AZZZZ | 40mm Sensing Distance | IP67 Rated | by SICK
The IO-Link RGB Sensor KTS-WB9A34115AZZZZ is designed for industrial automation, featuring a long sensing distance of up to 40mm and a robust IP67-rated housing. With a fast response time of 10µs and multiple teach-in modes, it’s perfect for object detection and quality control in manufacturing processes, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 40 mm with ±3 mm tolerance
- Light source: LED RGB with wavelengths 470 nm, 525 nm, 625 nm
- Light spot size: Ø 3.3 mm, round and large
- Switching output: Push-pull PNP/NPN, max output current 100 mA
- Supply voltage: 10.8 V DC to 28.8 V DC with ≤ 5 V ripple
- Current consumption: < 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Jitter: 5 µs
- Protection class: III, reverse polarity and short-circuit protected
- Connection type: Plug, M12, 5-pin
- Housing material: VISTAL®, Optics material: Glass
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: 30 g / 11 ms according to IEC 60068-2-27
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- Standard device type with long sensing distance up to 40 mm
- RGB LED light source with wavelengths 470 nm, 525 nm, 625 nm
- Light emission from long side of housing with round, large light spot
- Multiple teach-in modes including 1-point, 2-point, dynamic, and auto mode
- Push-pull PNP/NPN switching output with light/dark switching function
- Adjustable delay time and key lock setting
- IO-Link communication interface with device and vendor IDs
- High switching frequency of 50 kHz and fast response time of 10 µs
- Protection class III with reverse polarity and short-circuit protection
- Robust housing made of VISTAL® with glass optics and IP67 enclosure rating
- Wide ambient operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of IO-Link and sensor outputs.
Applications
- Industrial automation sensing
- Object detection in manufacturing processes
- Quality control and monitoring
- Standard sensing applications requiring long sensing distance
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10.8 V to 28.8 V DC
- Durable IP67 rated housing reduces environmental impact by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK KTS-WB9A34115AZZZZ sensor is available for immediate purchase, ideal for industrial automation and sensing applications requiring reliable object detection and communication.
