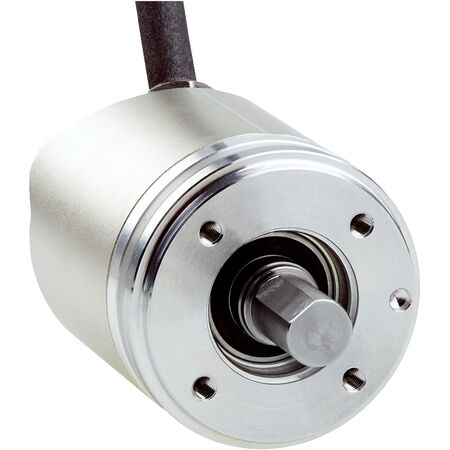

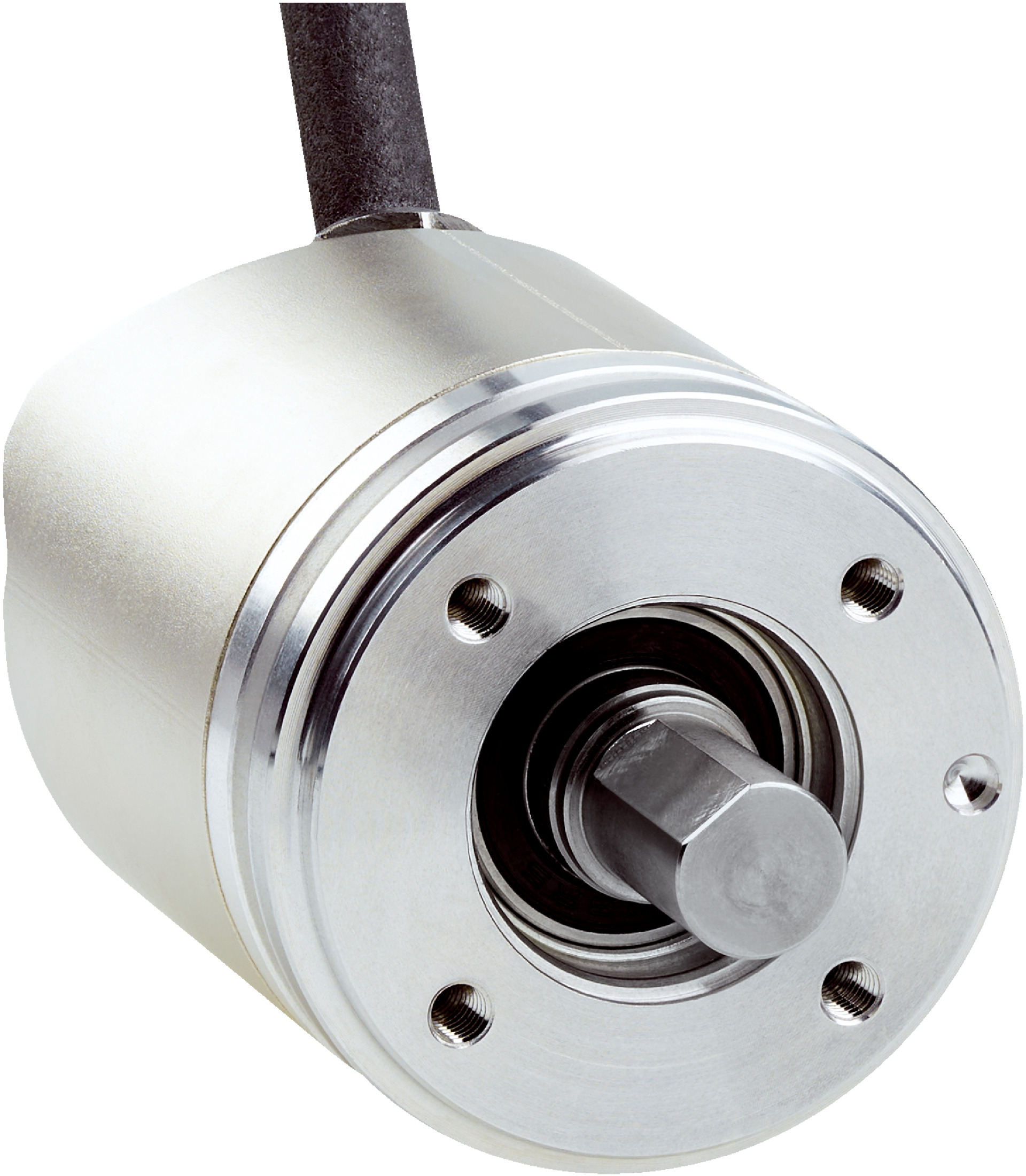

IO-Link Rotary Encoder AHS36A-S1QJ016384 | 16,384 Steps/Rev | IP66 & IP67 Rated | by SICK
The IO-Link Rotary Encoder AHS36A-S1QJ016384 offers high precision with 16,384 steps per revolution, making it ideal for industrial automation and motion control applications. With a robust design featuring an IP66 and IP67 rated enclosure, it ensures reliable performance in harsh environments. This encoder is perfect for servo motor feedback systems and robotics, providing fast initialization and low power consumption for efficient operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 240 years (EN ISO 13849-1)
- Max resolution: 16,384 steps per revolution (14 bit)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.2° at 20 °C
- Communication interface: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Power supply: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Connection: 4-wire cable, 0.5 m
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 12 mm
- Materials: Stainless steel shaft, aluminum flange, zinc housing
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^8 revolutions
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +85 °C
- EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Dimensions (H x L x W): 40mm x 70mm x 40mm
- Weight: 0.12 kg
Key Features
- High resolution with 16,384 steps per revolution (14 bit)
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust mechanical design with solid shaft and servo flange
- IP66 and IP67 rated enclosure for harsh environments
- Wide operating temperature range from -40 °C to +85 °C
- Low power consumption ≤ 1.5 W with reverse polarity protection
- Fast initialization time of 2 seconds and cycle time ≤ 3.2 ms
- Comprehensive diagnostics and status information via LED
- High mechanical reliability with bearing lifetime of 3.6 x 10^8 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial electrical standards to ensure proper connection and configuration.
Applications
- Industrial automation for precise position and speed measurement
- Servo motor feedback systems
- Robotics and motion control
- Machine tool positioning
- Process control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable design minimizes waste and replacement frequency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AHS36A-S1QJ016384 IO-Link Rotary Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
