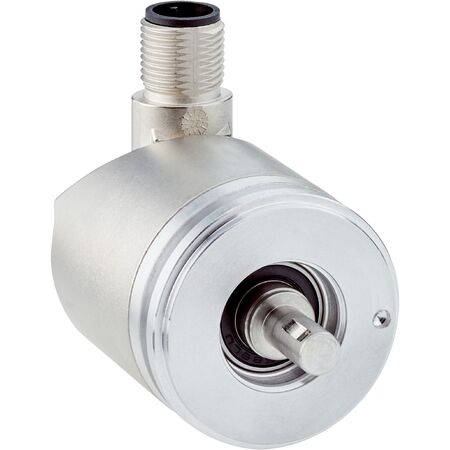

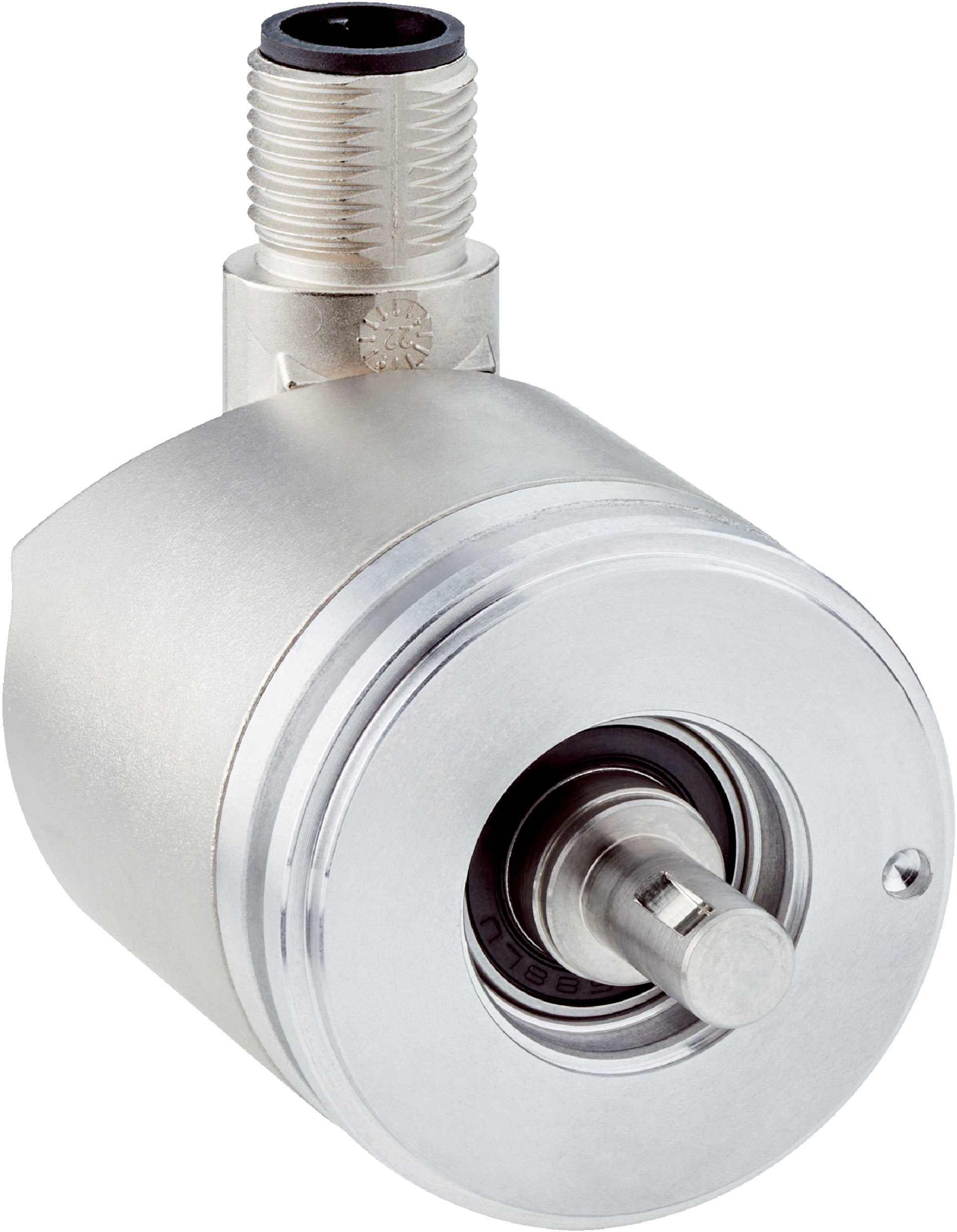

IO-Link Rotary Encoder AHM36A-SDQC014x12 | 16,384 Steps/Rev | IP66 & IP67 Rated | by SICK
The IO-Link Rotary Encoder AHM36A-SDQC014x12 offers high precision with a maximum resolution of 16,384 steps per revolution and robust IP66/IP67 rated enclosure, making it ideal for industrial automation and motion control applications. Designed for reliability, it features a wide operating temperature range from -40 °C to +85 °C and low power consumption, ensuring optimal performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 240 years (EN ISO 13849-1)
- Max resolution: 16,384 steps/rev x 4,096 revolutions (14 bit x 12 bit)
- Error limits: 0.35° at 20 °C
- Repeatability standard deviation: 0.2° at 20 °C
- Communication: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Supply voltage: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Connection: Male M12, 4-pin connector
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm, length 12 mm
- Operating speed: ≤ 6,000 min⁻¹
- Operating temperature: -40 °C to +85 °C
- Enclosure rating: IP66 and IP67
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust mechanical design with solid stainless steel shaft and aluminum flange
- Wide operating temperature range from -40 °C to +85 °C
- IP66 and IP67 rated enclosure for harsh environments
- Low power consumption ≤ 1.5 W with reverse polarity protection
- Fast initialization time of 2 seconds and cycle time ≤ 3.2 ms
- Comprehensive diagnostics and status information via LED
- High mechanical reliability with bearing lifetime of 3.6 x 10^8 revolutions
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of the IO-Link interface and mechanical mounting.
Applications
- Industrial automation for precise position and speed measurement
- Servo motor feedback systems
- Robotics and motion control
- Machine tool positioning
- Process control requiring high resolution and reliability
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable design minimizes waste and replacement frequency
- Compliant with China-RoHS and other environmental regulations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AHM36A-SDQC014x12 IO-Link Rotary Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
