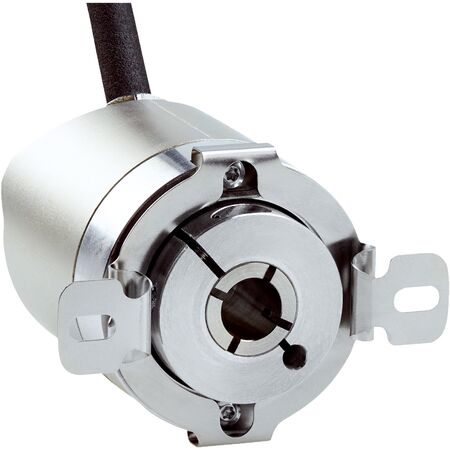

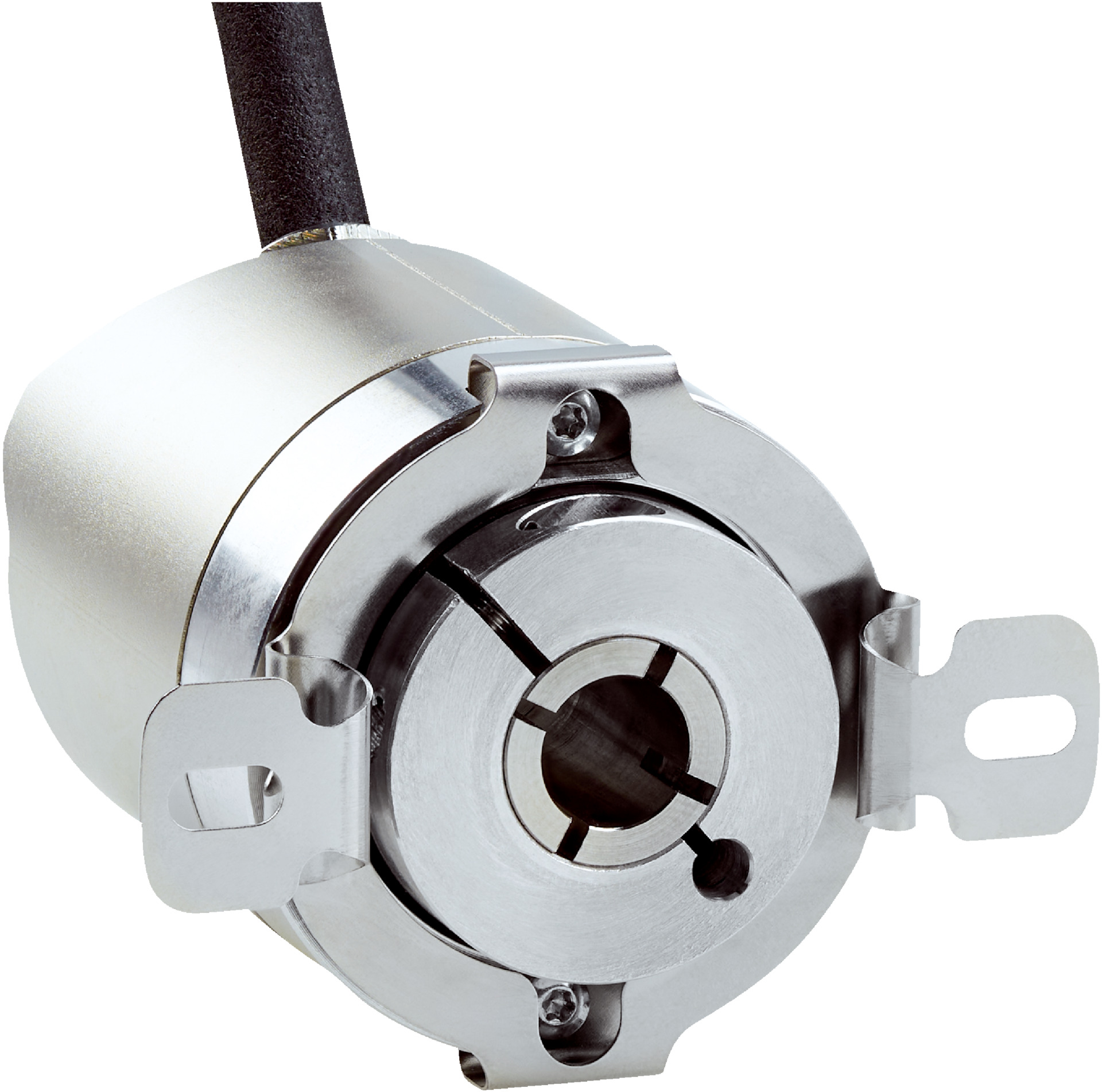

IO-Link Rotary Encoder AHM36A-BBQM014x12 | 16,384 Steps/Rev | IP66/IP67 Rated | by SICK
The IO-Link Rotary Encoder AHM36A-BBQM014x12 offers high precision with 16,384 steps per revolution and robust IP66/IP67 rated enclosure, making it perfect for industrial automation and robotics. Designed for reliable performance in harsh environments, it features a wide operating temperature range of -40°C to +85°C and low power consumption, ensuring efficient operation and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 240 years (EN ISO 13849-1)
- Max resolution: 16,384 steps/rev x 4,096 revolutions (14 bit x 12 bit)
- Error limits: 0.35° at 20°C
- Repeatability standard deviation: 0.2° at 20°C
- Communication: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Power supply: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Connection: 4-wire cable, 5 m length
- Mechanical design: Blind hollow shaft, 8 mm diameter, front clamp
- Materials: Stainless steel shaft, aluminum flange, zinc housing
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 2.0 x 10^9 revolutions
- Enclosure rating: IP66/IP67
- Operating temperature: -40°C to +85°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP66 and IP67 rated enclosure for harsh environments
- Wide operating temperature range from -40°C to +85°C
- Low power consumption of ≤ 1.5 W with reverse polarity protection
- Extensive diagnostic and status information available via IO-Link
- High shock and vibration resistance (100 g shock, 20 g vibration)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and electrical safety standards to ensure proper integration and compliance.
Applications
- Industrial automation for precise position and speed measurement
- Robotics for accurate motion control
- Machine tools requiring high resolution feedback
- Conveyor systems monitoring and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation reduces power consumption in automation systems
- Durable design minimizes waste and replacement frequency
- Supports predictive maintenance through diagnostics, reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AHM36A-BBQM014x12 IO-Link Rotary Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
