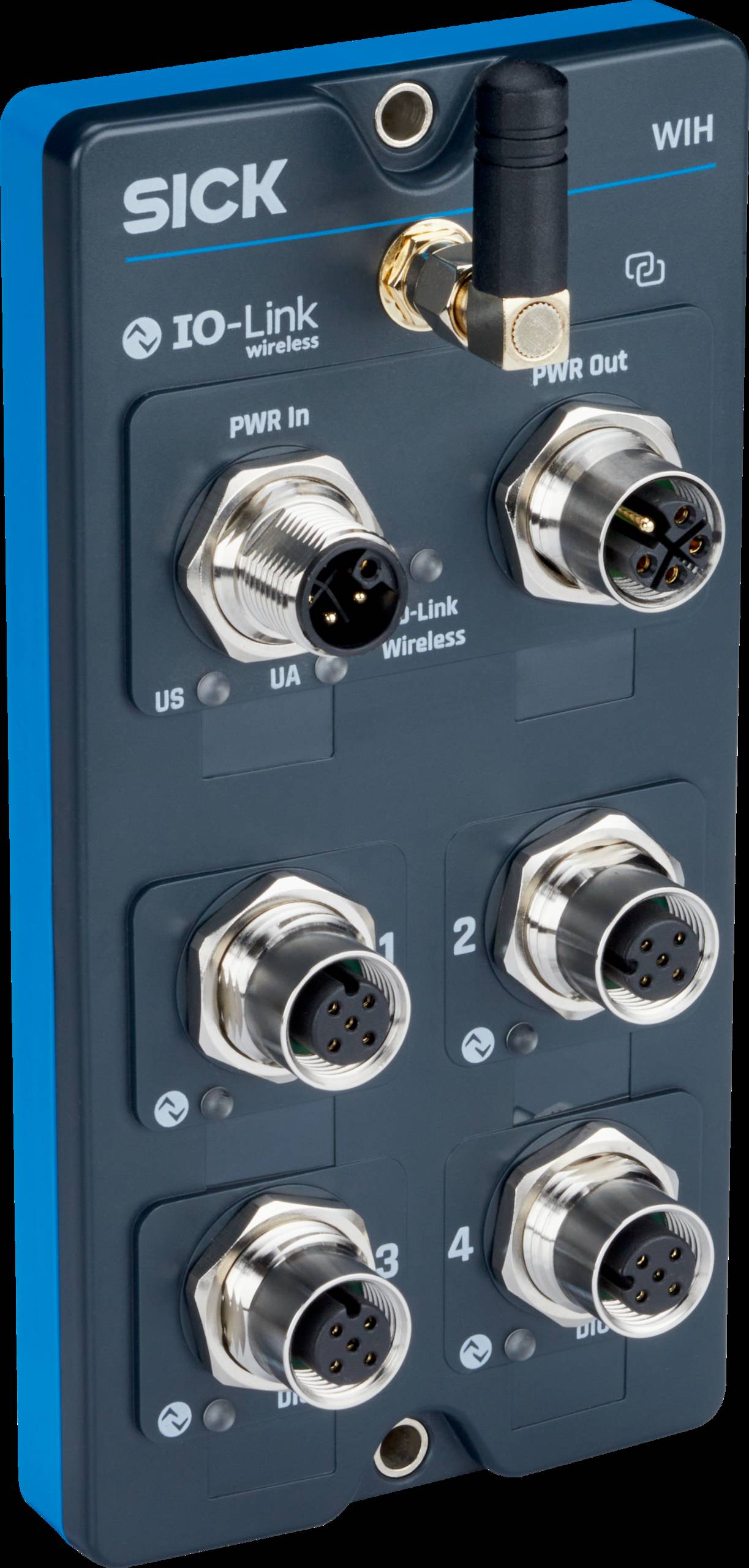

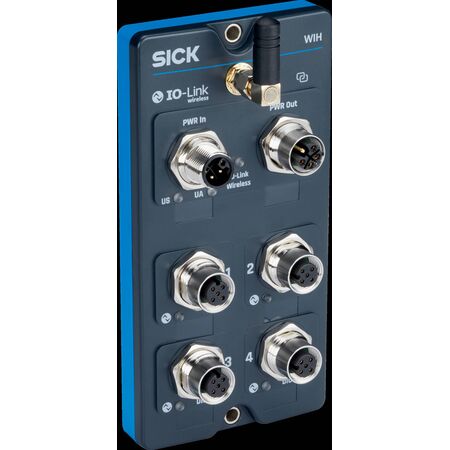

IO-Link Wireless Gateway | IP65 Rated | Supports 64 Devices | IIoT Integration | by SICK
The IO-Link Wireless Gateway enables seamless wireless communication for up to 64 IO-Link devices, making it ideal for industrial automation and IIoT applications. With an IP65 enclosure rating and interference-free frequency hopping, it ensures reliable data transmission in challenging environments. Perfect for PLC communication and control, this gateway simplifies integration and reduces cabling needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IO-Link Wireless Gateway | IP65 Rated | Supports 64 Devices | IIoT Integration | by SICK
Brand: SICK
SKU: 6087628
Alternatively Known As: Wireless IO-Link Gateway, Industrial Wireless Gateway, IO-Link Master Wireless, Wireless IO-Link Hub
Technical Specifications
- Communication interface: IO-Link
- Enclosure rating: IP65
- Radio approval: 1 SMA antenna, Unlicensed 2.4GHz ISM band, Tx power 10 dBm max, Rx Sensitivity PER 30% @ -92 dBm or better
- IO-Link or DI/DO Ports: Power In/Out: 2x M12, 5-pin, L-coded, 4x M12, 5-pin, A-coded, class B, class A
- IO-Link class: IO-Link class A, IO-Link class B
- Functions: Initial setup, configuration and monitoring using WIE, via internal Web Server interface or by PLC to WIM
- Dimensions (H x L x W): 80mm x 50mm x 120mm
- Weight: 1.5 kg
Key Features
- Wireless communication up to 20 m
- Supports up to 64 IO-Link devices per master
- Interference-free frequency hopping method
- Data transmission with short delay time
- IIoT integration via OPC-UA, MQTT, REST API
- Fieldbus integration with PROFINET, EtherNet/IP, EtherCAT
- Compact IP67 design
- Interlinking to reduce power cabling
Professional Installation Requirements
- Installation by qualified industrial automation professionals is recommended to ensure proper configuration and integration with existing systems.
Applications
- Industrial automation for wireless integration of IO-Link devices
- IIoT platform connectivity
- PLC communication and control
- Mobile and long-distance wireless communication in industrial environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces cabling and associated material waste through wireless communication
- Supports energy-efficient industrial automation and monitoring
- Enables flexible deployment reducing need for physical infrastructure changes
Warranty Information
Standard manufacturer warranty of 2 years covering defects in materials and workmanship.
Available Now
The SICK IO-Link Wireless Gateway is available for immediate purchase, ideal for industrial automation and IIoT wireless communication applications.
