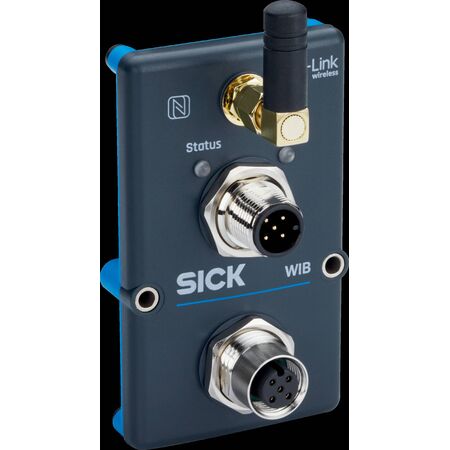

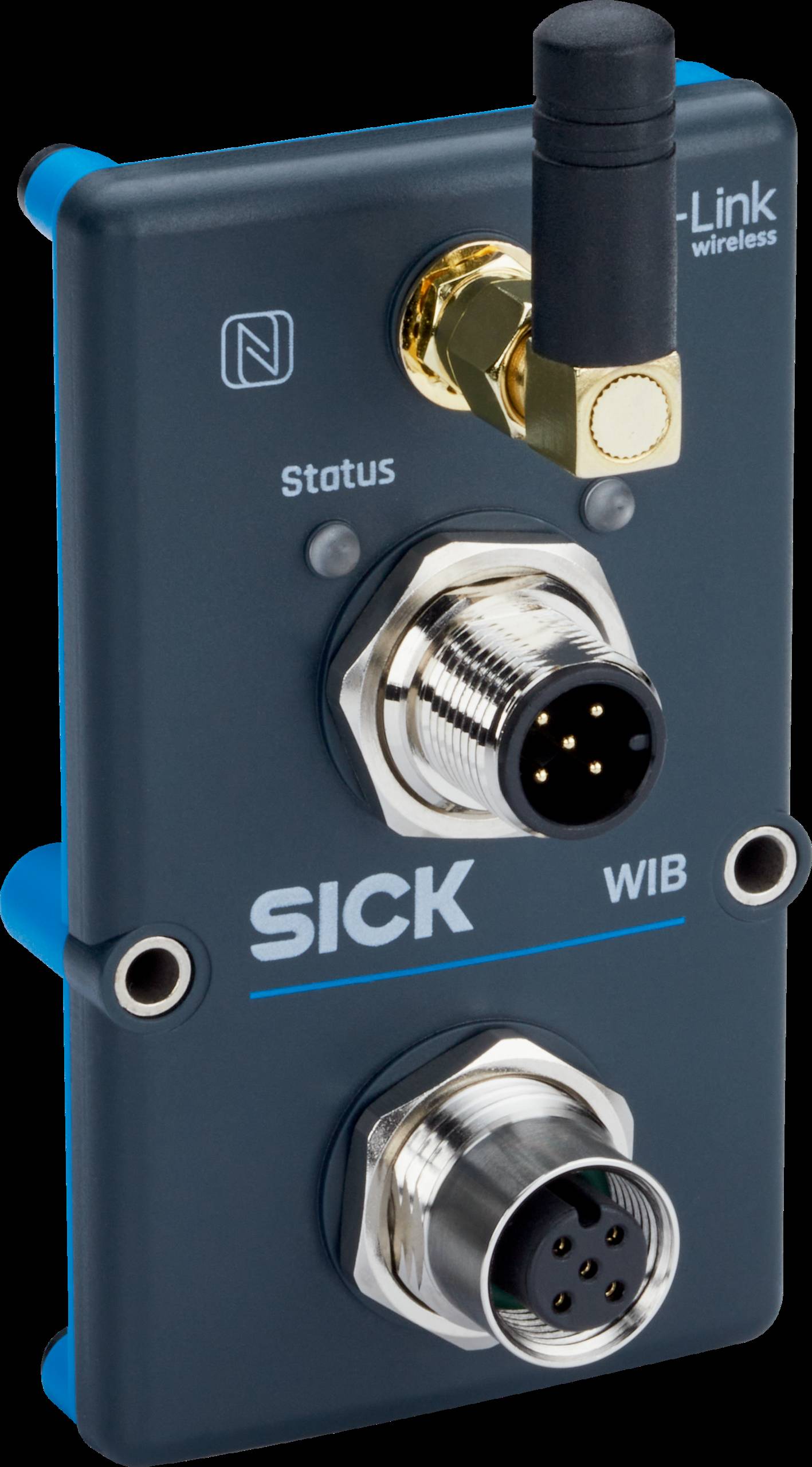

IO-Link Wireless Gateway | IP67 Rated | Supports 64 Devices | IIoT Integration | by SICK
The IO-Link Wireless Gateway enables seamless wireless communication for up to 64 IO-Link devices, making it ideal for industrial automation and IIoT applications. With an IP67 rating and a wireless range of up to 20 meters, it ensures reliable performance in challenging environments. This compact gateway supports various protocols like PROFINET and MQTT, facilitating easy integration into existing systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IO-Link Wireless Gateway | IP67 Rated | Supports 64 Devices | IIoT Integration | by SICK
Brand: SICK
SKU: 6087629
Alternatively Known As: Wireless IO-Link Gateway, Industrial Wireless Gateway, IO-Link Master Wireless
Technical Specifications
- Communication interface: IO-Link
- Enclosure rating: IP67
- Radio approval: 1 SMA antenna, Unlicensed 2.4GHz ISM band, Tx power 10 dBm max, Rx Sensitivity PER 30% @ -92 dBm or better
- IO-Link or DI/DO Ports: Power In: M12 ports, 5-pin, A-coded, IO-Link class A or DI/DO Ports
- Further functions: Initial setup, configuration and monitoring using WIE, via internal Web Server interface or by PLC to WIM
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 1.2 kg
Key Features
- Wireless communication up to 20 m
- Supports up to 64 IO-Link devices per master
- Interference-free frequency hopping method
- Data transmission with short delay time
- IIoT integration via OPC-UA, MQTT, REST API
- Fieldbus integration with PROFINET, EtherNet/IP, EtherCAT
- Compact IP67 rated design
- Interlinking to reduce power cabling
Professional Installation Requirements
- Installation should be performed by qualified industrial automation professionals to ensure proper configuration and compliance with safety standards.
Applications
- Industrial automation for wireless integration of IO-Link devices
- IIoT platform connectivity and PLC communication
- Mobile and long-distance wireless communication in challenging environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces cabling requirements, minimizing material use and installation waste
- Supports wireless communication, lowering energy consumption related to wired infrastructure
- Enables efficient IIoT integration for optimized industrial processes and resource management
Warranty Information
Standard manufacturer warranty of 2 years covering defects in materials and workmanship.
Available Now
The SICK IO-Link Wireless Gateway is available for immediate purchase, ideal for industrial automation and IIoT wireless communication applications.
