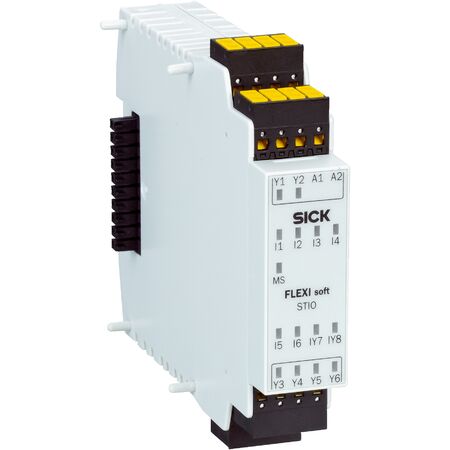

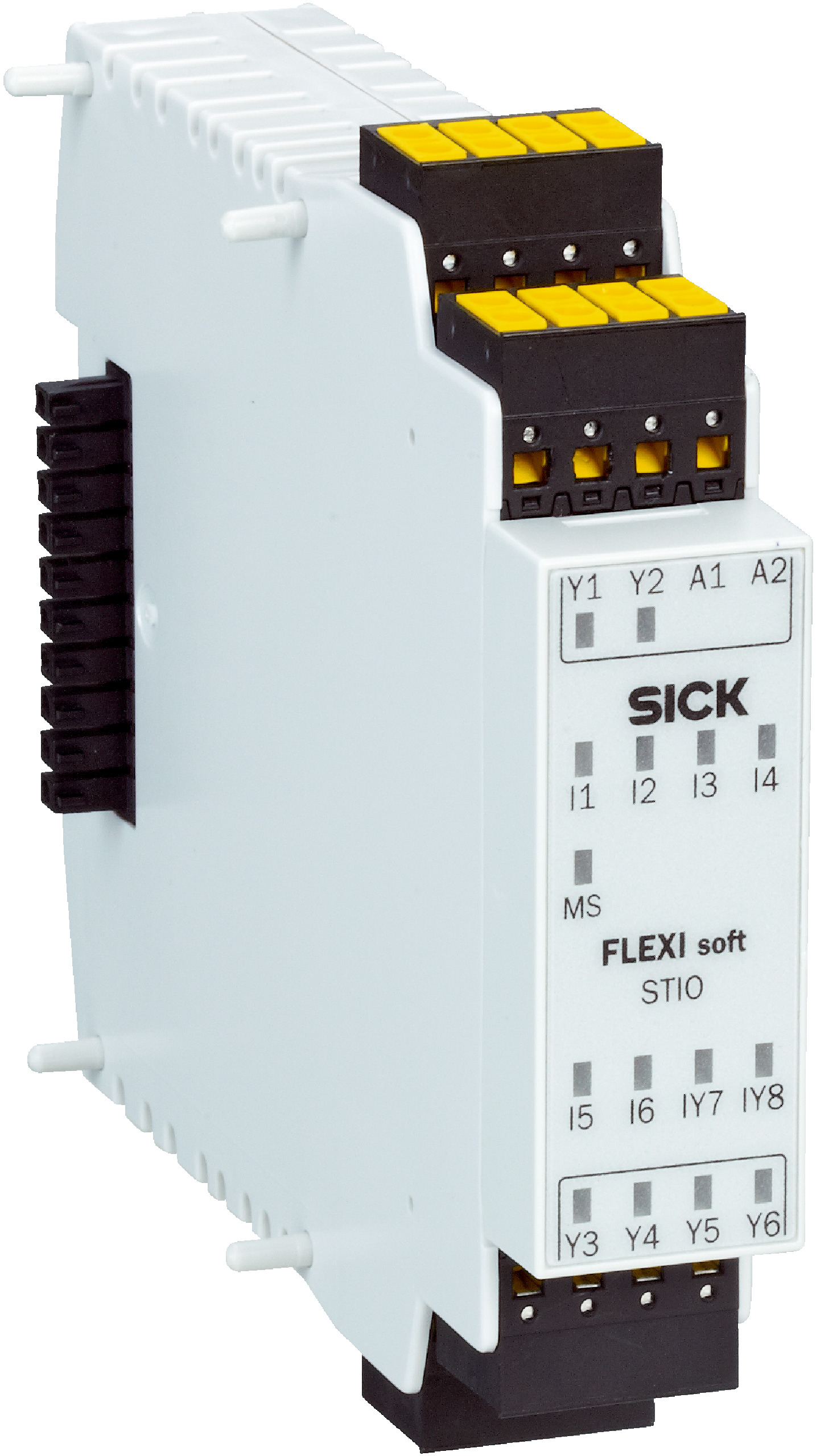

I/O Module FX0-STIO68002 | Configurable via Software | 6-8 Inputs & Outputs | Short-Circuit Protected | by SICK
The FX0-STIO68002 I/O Module is designed for industrial automation, featuring 6 to 8 non-safe inputs and outputs that are easily configurable via Flexi Soft Designer software. With a low internal power consumption of ≤ 1.5 W and short-circuit protected PNP semiconductor outputs, this module ensures reliable performance in safety control systems and machine monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Module Type: I/O module
- Configuration Method: Via software (Flexi Soft Designer, Safe EFI-pro System Safety Designer)
- Number of Non-Safe Inputs: 6-8
- Number of Non-Safe Outputs: 6-8
- Connection Type: Plug-in spring terminals
- Protection Class: III (EN 61140)
- Voltage Supply: Via A1, A2
- Internal Power Consumption: ≤ 1.5 W
- Input Voltage HIGH: 13 V DC to 30 V DC
- Input Voltage LOW: -5 V DC to 5 V DC
- Input Current HIGH: 2.4 mA to 3.8 mA
- Input Current LOW: -2.5 mA to 2.1 mA
- Output Voltage HIGH: 16 V DC to 30 V DC
- Output Current: ≤ 500 mA
- Type of Output: PNP semiconductors, short-circuit protected
- Supply Voltage: 24 V DC (16.8 V DC to 30 V DC)
- Type of Supply Voltage: PELV or SELV
- Enclosure Rating: IP20 (EN 60529)
- Ambient Operating Temperature: -25 °C to +55 °C
- Storage Temperature: -25 °C to +70 °C
- Air Humidity: ≤ 95%, Non-condensing
- Dimensions (H x L x W): 97mm x 121mm x 23mm
- Weight: 0.139 kg
Key Features
- I/O module configurable via Flexi Soft Designer and Safe EFI-pro System Safety Designer software
- 6 to 8 non-safe inputs and outputs with plug-in spring terminal connections
- Short-circuit protected PNP semiconductor outputs
- Low internal power consumption (≤ 1.5 W)
- Wide input voltage range for HIGH and LOW signals
- Protection class III (EN 61140) ensuring electrical safety
- IP20 enclosure rating suitable for protected indoor environments
Professional Installation Requirements
- Installation should be performed by a qualified electrician or automation technician to ensure compliance with safety standards and proper configuration.
Applications
- Industrial automation systems
- Safety control systems
- Machine monitoring and control
- Factory automation requiring input/output interfacing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial control systems
- Designed for long operational life minimizing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK FX0-STIO68002 I/O Module is available for immediate purchase, ideal for industrial automation and safety control applications.
