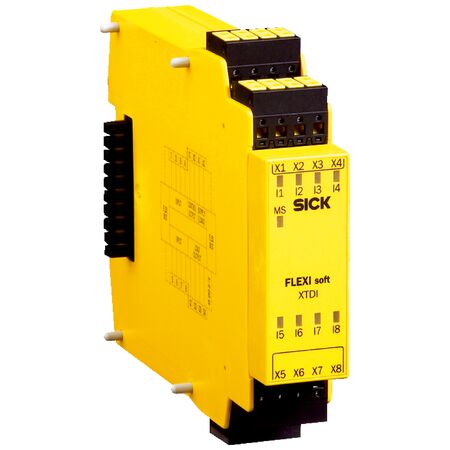

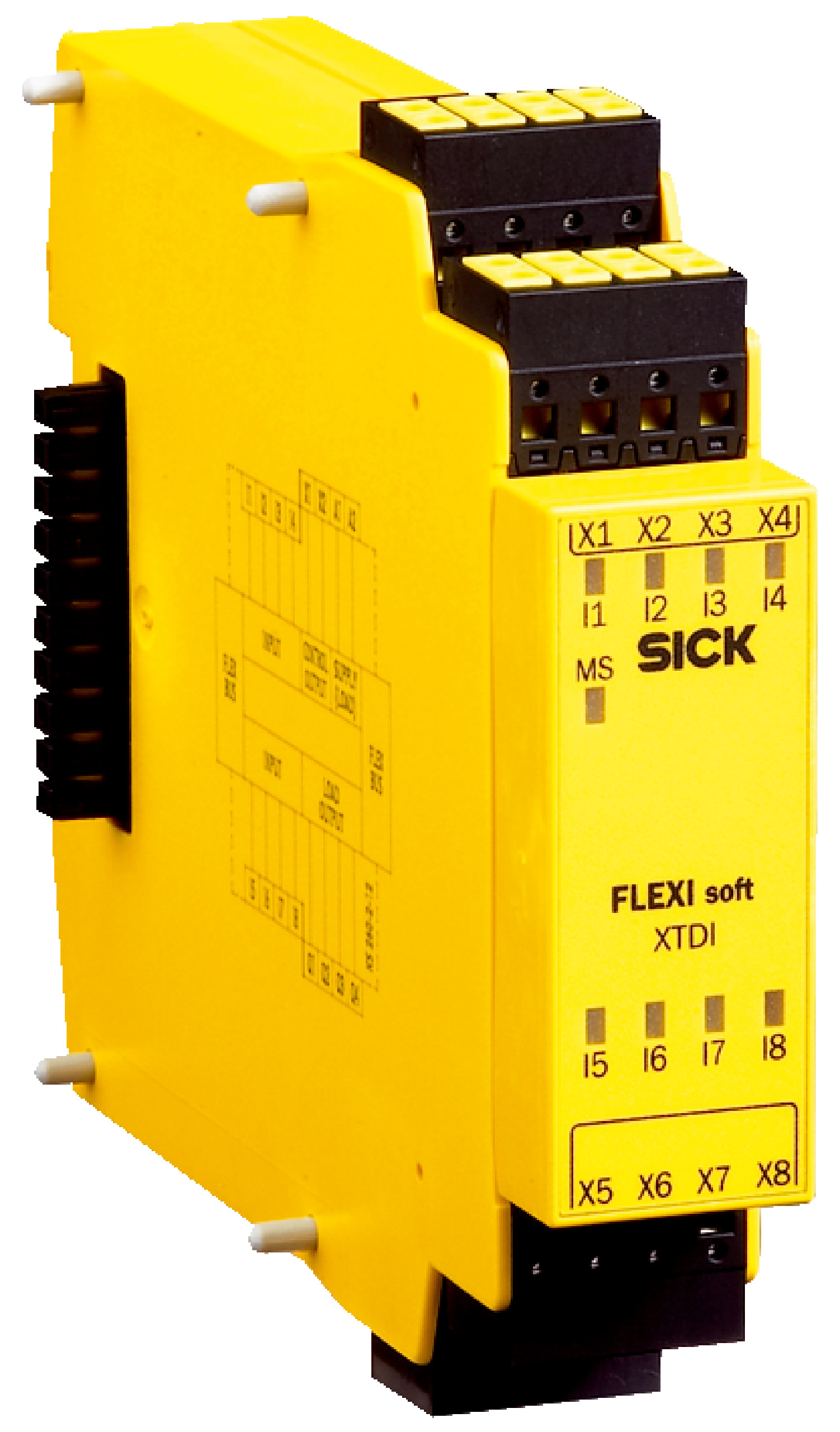

I/O Safety Module FX3-XTDI80002 | SIL 3 Certified | 8 Safety Inputs & Outputs | IP20 Rated | by SICK
The I/O Safety Module FX3-XTDI80002 is designed for industrial automation safety systems, featuring SIL 3 certification and 8 safety inputs and outputs. Configurable via Flexi Soft Designer, it ensures reliable machine safety control with a long mission time of 20 years and low power consumption of ≤ 2 W, making it ideal for factory safety monitoring and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: I/O Safety Module FX3-XTDI80002 | SIL 3 Certified | 8 Safety Inputs & Outputs | IP20 Rated | by SICK
Brand: SICK
SKU: 1044124
Alternatively Known As: Safety I/O Module, Industrial Safety Controller Module, SIL 3 Safety Module, Flexi Soft I/O Module
Technical Specifications
- Module type: I/O module
- Configuration method: Via Flexi Soft Designer and Safe EFI-pro System Safety Designer software
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 0.4 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Number of safety inputs: 8
- Number of test outputs: 8
- Connection type: Plug-in spring terminals
- Protection class: III (EN 61140)
- Voltage supply: Via FLEXBUS+
- Internal power consumption: ≤ 2 W
- Input voltage HIGH: 13 V DC to 30 V DC
- Input voltage LOW: -5 V DC to 5 V DC
- Input current HIGH: 2.4 mA to 3.8 mA
- Input current LOW: -2.5 mA to 2.1 mA
- Test outputs: PNP semiconductors, short-circuit protected
- Test pulse generator: 2
- Output voltage HIGH: 15 V DC to 30 V DC
- Output current: ≤ 120 mA
- Enclosure rating: IP20 (EN 60529)
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: ≤ 95%, non-condensing
- Dimensions (H x L x W): 96.5mm x 120.6mm x 22.5mm
- Weight: 0.139 kg
Key Features
- I/O module configurable via Flexi Soft Designer and Safe EFI-pro System Safety Designer software
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) and Performance level PL e (EN ISO 13849)
- Mean probability of dangerous failure per hour (PFHD) of 0.4 x 10^-9
- Mission time of 20 years
- Flexi Loop-compatible
- 8 safety inputs and 8 test outputs with plug-in spring terminals
- Protection class III (EN 61140)
- Voltage supply via FLEXBUS+ with internal power consumption ≤ 2 W
- Test outputs with PNP semiconductors, short-circuit protected
- Operating temperature range from -25 °C to +55 °C
- IP20 enclosure rating
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety systems and electrical standards to ensure compliance and safety.
Applications
- Industrial automation safety systems
- Machine safety control
- Factory safety monitoring
- Safety-related input/output control in manufacturing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 2 W reduces energy usage
- Long mission time of 20 years supports sustainable operation
- Compliance with RoHS and other environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK FX3-XTDI80002 I/O Safety Module is available for immediate purchase, ideal for industrial safety and automation applications.
