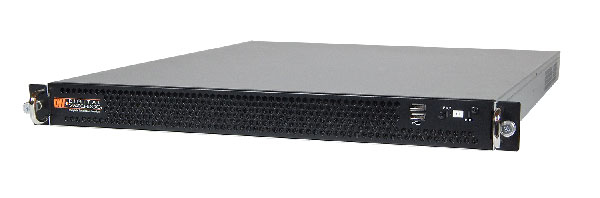

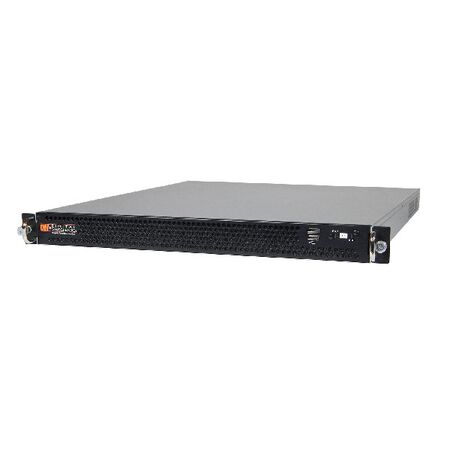

IP Camera Server 360Mbps Throughput Linux SSD Dual Network Ness
Ness IP camera server features 360Mbps throughput, Linux OS on SSD and dual network. Ideal for CCTV video management installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Digital Watchdog Blackjack P-Rack 1U Server, DW-BJP1U, CCTV Video Management Server, IP Video Surveillance Server
Technical Specifications
- Model: DW-BJP1U
- Form Factor: 1U rack-mount server
- Video Throughput: Up to 360Mbps
- Operating System: Linux Ubuntu installed on separate SSD
- Pre-loaded Software: DW Spectrum IP video management software
- Network Interfaces: 2 x Gigabit Ethernet RJ45 ports
- Camera Compatibility: ONVIF-conformant IP cameras
- Storage Expansion: 3 x SATA hard-drive bays, HDDs not included
- Maximum Storage: Up to 30TB with compatible HDD configuration
- Video Outputs: True HD, VGA or DVI output
- Power Supply: 300W
- Operating Temperature: 5°C to 40°C
- Operating Humidity: 20% to 90% RH, non-condensing
- Accessories: Rack rail kit, USB keyboard and mouse included
- Recording Licences: DW Spectrum licences sold separately
- Dimensions (H x L x W): 43.65mm x 530mm x 440mm
- Weight: 15.44 kg
Key Features
- Supports recording and management of IP cameras at up to 360Mbps throughput
- Linux operating system and Spectrum Server software pre-installed on an SSD
- Dual Gigabit Ethernet ports for network connectivity and system integration
- Compatible with ONVIF-conformant IP cameras
- Supports up to three additional SATA hard drives for video storage
- 1U rack-mount format for security equipment racks
- Remote client support across Windows, Linux Ubuntu and Mac platforms
- Supports dual-stream recording and automatic camera discovery
- Designed for professional CCTV video management installations
Professional Installation Requirements
- Rack installation, network configuration and CCTV system commissioning should be performed by a suitably qualified security or IT technician. Provide appropriate ventilation and connect through a suitably protected power circuit or UPS.
Applications
- Commercial CCTV video surveillance systems
- Industrial and warehouse security monitoring
- Retail and shopping-centre camera management
- Office and multi-site security installations
- Professional IP video recording and remote client management
Standards & Compliance
- AS/NZS 62676.1.1:2020 – video surveillance system requirements, applicable to CCTV system design and performance
- AS/NZS 62676.1.2:2020 – performance requirements for video transmission, applicable to IP video surveillance system design
Environmental Benefits
- SSD-based operating system storage has no moving parts, which can support longer service life and reduce replacement waste
- Centralised digital video management can reduce reliance on removable recording media
- Expandable storage allows the server to be upgraded rather than replaced as surveillance requirements grow
Warranty Information
Digital Watchdog cameras, recorders and servers supplied by Ness are covered by a 3-year warranty from the date of purchase under Ness Corporation’s product warranty policy. The original Digital Watchdog datasheet for the DW-BJP1U also states a 5-year limited warranty; confirm the applicable warranty term for the supplied Australian SKU at purchase.
Available Now
Available through Ness Corporation and authorised Australian security, CCTV and electronic security distributors.
