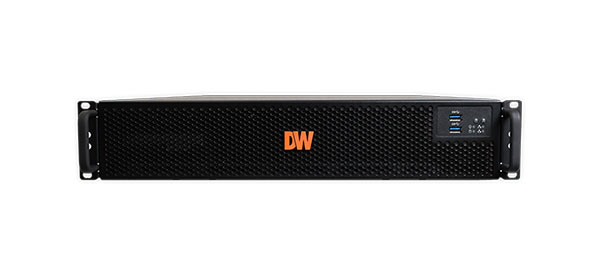

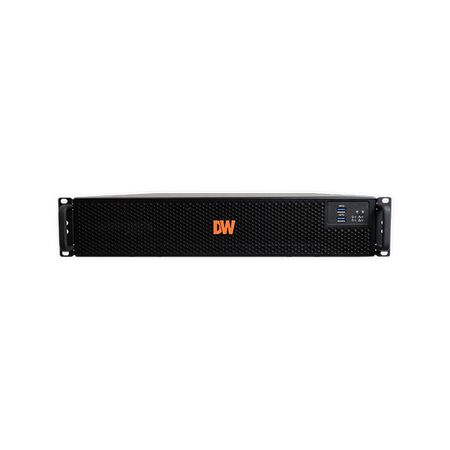

IP Camera Server 600Mbps Linux Ubuntu SSD Dual Network Ports Ness
Ness IP camera server features 600Mbps, Linux Ubuntu on SSD and dual network ports. Ideal for CCTV video management installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DW-BJP2U Server, Blackjack P-Rack 2U Network Video Recorder, IP Video Management Server
Technical Specifications
- Model: DW-BJP2U
- Form Factor: 2U rack-mount server
- Maximum Video Throughput: 600Mbps
- Operating System: Linux Ubuntu installed on separate SSD
- Pre-installed Software: DW Spectrum IPVMS
- Processor: Intel Core i7
- Memory: 16GB
- Network Ports: Dual Ethernet ports
- Storage Bays: 7 x 3.5-inch SATA HDD bays
- Maximum Storage: Up to 112TB with compatible hard drives
- Camera Compatibility: ONVIF-conformant IP cameras
- Video Outputs: True HD and DVI outputs
- Power Supply: 400W
- Operating Temperature: 5°C to 40°C
- Operating Humidity: 20% to 90% RH
- Included Accessories: Keyboard, mouse and rack rail kit
- Compliance: NDAA and TAA compliant
- Dimensions (H x L x W): 88.9mm x 557.1mm x 439.3mm
- Weight: 18.57 kg
Key Features
- Supports recording and management of IP cameras up to 600Mbps throughput
- Linux Ubuntu operating system and DW Spectrum server software pre-installed on SSD
- Dual network ports for flexible network configuration
- Supports single-sensor and multi-sensor ONVIF IP cameras
- Seven SATA storage bays support up to 16TB per drive
- 2U rack-mount format for commercial and enterprise installations
- Includes rack rail kit, keyboard and mouse
- Supports remote clients on Windows, Linux Ubuntu and Mac platforms
- Hard drives and recording licences are sold separately
Professional Installation Requirements
- Installation and commissioning should be performed by a suitably qualified CCTV or security systems installer. Rack mounting, network configuration, storage installation and camera-system commissioning should follow the equipment manufacturer's instructions and applicable Australian requirements.
Applications
- Commercial CCTV surveillance systems
- Enterprise IP camera recording and management
- Retail, warehouse and industrial security installations
- Multi-site video surveillance deployments
- Control rooms and security operations centres
- ONVIF-based IP video management systems
Standards & Compliance
- Applicable video surveillance system framework: AS/NZS 62676.1.1:2020
- Applicable video transmission performance framework: AS/NZS 62676.1.2:2020
- Applicable video surveillance application and installation guidance: AS/NZS 62676.4:2020
Environmental Benefits
- SSD-based operating system reduces moving parts and may support longer service life than a system using mechanical storage alone
- Centralised IP video management can reduce the need for multiple standalone recording appliances
- Dual-stream recording can help optimise network bandwidth and storage requirements
- Rack-mount construction supports equipment servicing and replacement of individual storage drives rather than complete system replacement
Warranty Information
Ness Corporation warranty: 3 years from date of purchase for Ness manufactured or supplied products, subject to the published warranty terms. Manufacturer-specific warranty terms may vary by configuration and supply channel.
Available Now
Available through Ness Corporation and authorised Australian security-system distributors; storage configuration and recording licences may require separate ordering.
