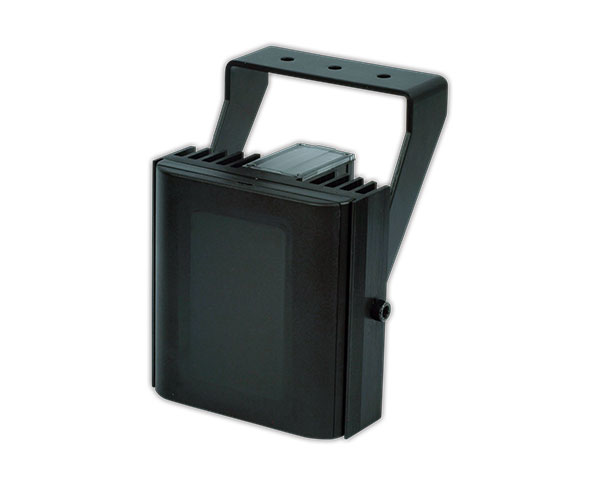

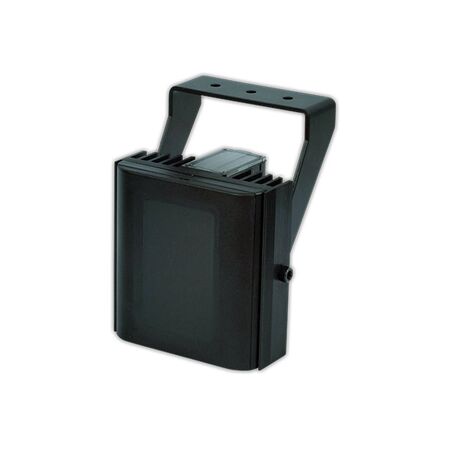

IP IR Illuminator 940nm Invisible Light PoE IP66 Ness
Ness IP IR illuminator features 940nm invisible light, PoE and IP communication, and IP66 rating. Ideal for CCTV night vision installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness 123-100 IR Illuminator, Digital Watchdog NightWatch IR Illuminator, PoE IP CCTV IR Illuminator
Technical Specifications
- Model: Digital Watchdog DW-ILIRIP940
- SKU: 123-100
- Wavelength: 940nm infrared
- Power Supply: PoE+ compliant with IEEE 802.3at
- Power Consumption: 26W
- Illumination Adjustment: 10% to 100%
- Photocell Adjustment: 20 to 70 lux
- Coverage Distance: Up to 115m
- Beam Options: 10°, 20°, 30°, 60°, 80° and 95°
- Environmental Rating: IP66 to EN 60529
- Impact Rating: IK09
- Operating Temperature: -50°C to 50°C
- Construction: Aluminium extrusion with powder-coated stainless-steel wall mount
- Integration: IP communication and DW Spectrum IPVMS compatibility
- Compliance: NDAA and TAA compliant
- Dimensions (H x L x W): 114mm x 110mm x 78mm
- Weight: 1.5 kg
Key Features
- 940nm infrared illumination designed for minimal visible glow
- PoE+ power and IP communication for networked CCTV integration
- Coverage distance up to 115m, depending on lens and beam angle
- Interchangeable lens pack for circular and elliptical beam profiles
- Adjustable photocell and illumination levels
- Built-in web browser interface
- High-power Dual-Core LED technology with current-limited control circuitry
- IP66 dust-tight and water-resistant enclosure
- IK09 impact-resistant construction
- Compatible with Digital Watchdog IP cameras and network devices
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or communications installer. Mounting, outdoor sealing, PoE+ network connection and configuration should follow the manufacturer's installation instructions and applicable Australian cabling and electrical requirements.
Applications
- Outdoor CCTV night surveillance
- Residential security systems
- Commercial and industrial security installations
- Supplementary infrared lighting for IP cameras
- Networked surveillance systems using DW Spectrum IPVMS
Standards & Compliance
- AS/NZS 62368.1:2022 — relevant Australian/New Zealand safety standard for network-connected ICT equipment; product-specific certification should be verified with the supplier
- EN 60529 — IP66 enclosure protection classification stated in the product datasheet
Environmental Benefits
- High-efficiency LED illumination can reduce energy consumption compared with less efficient lighting technologies
- Durable aluminium and weather-resistant construction can extend service life and reduce replacement waste
- Adjustable illumination levels allow power use to be matched to site requirements
- 940nm infrared operation provides discreet night illumination without visible-light pollution
Warranty Information
Two-year warranty stated in the product datasheet. Ness Corporation's general warranty policy states three years for Ness manufactured or supplied products unless otherwise specified; confirm the applicable term for SKU 123-100 at purchase.
Available Now
Available through Ness Corporation and authorised Australian security and electrical distributors.
