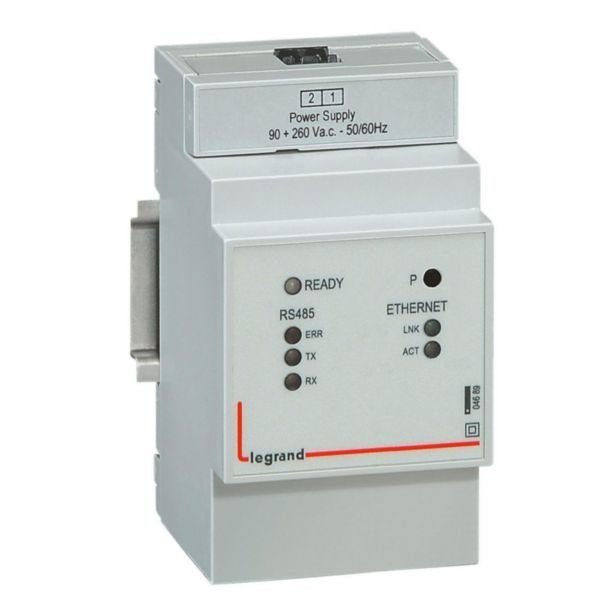

IP RS485 and Ethernet Converter | 90V~ to 260V~ | Supports 32 Devices | DIN-Rail Mountable | @Each of 1 | by Legrand
The IP RS485 and Ethernet Converter is designed for seamless integration of RS485 devices into IP networks, operating within a voltage range of 90V~ to 260V~. Ideal for industrial and commercial automation systems, this single-channel converter supports up to 32 devices per channel and features a web server for easy visualization. With DIN-rail mounting and LED status indication, it ensures reliable performance and easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IP RS485 and Ethernet Converter | 90V~ to 260V~ | Supports 32 Devices | DIN-Rail Mountable | @Each of 1 | by Legrand
Brand: Legrand
SKU: 004689
Alternatively Known As: RS485 to Ethernet Converter, IP RS485 Converter, Ethernet RS485 Gateway, DIN Rail RS485 Converter
Technical Specifications
- Bus system: Other
- Mounting method: DIN-rail adaptor (DRA)
- Width: 3 modular spacings
- Number of channels: 1
- Max devices per channel: 32
- LED indication: Yes
- Firmware updateable: Yes
- Operating voltage: 230 V AC
- Power consumption: 2.94 W
- Protocol: TCP/IP
- Web-server: Yes
- Degree of protection: IP20
- Dimensions (H x L x W): 70mm x 60mm x 90mm
- Weight: 0.3 kg
Key Features
- Complies with Ethernet specifications
- RJ45 connector for Ethernet connection
- Supports up to 32 RS485 devices per channel
- Single channel converter
- DIN-rail mounting (DRA)
- LED indication for status monitoring
- Updateable firmware
- Supports TCP/IP protocol
- Includes web-server for visualization
- Operating voltage: 230V AC
- Power consumption: 2.94 W
- Degree of protection: IP20
Professional Installation Requirements
- Installation by a qualified electrician or network technician is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Industrial and commercial automation systems
- Building management systems
- Network communication for RS485 devices
- Integration of RS485 devices into IP networks
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient network communication reducing the need for additional wiring and hardware.
- Supports integration of legacy RS485 devices into modern IP networks, extending device lifecycle.
Warranty Information
Standard Legrand warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand IP RS485 and Ethernet Converter 90V~ to 260V~ - 3 Modules is available for immediate purchase, ideal for industrial and commercial network communication applications.
