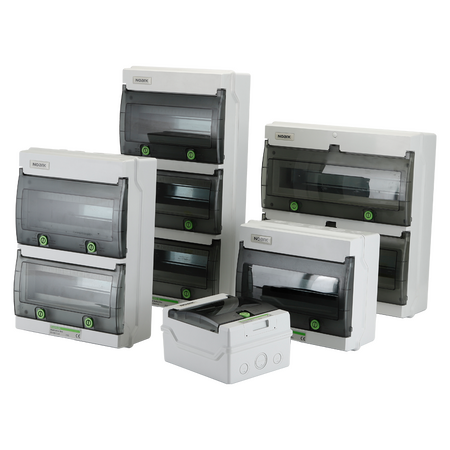

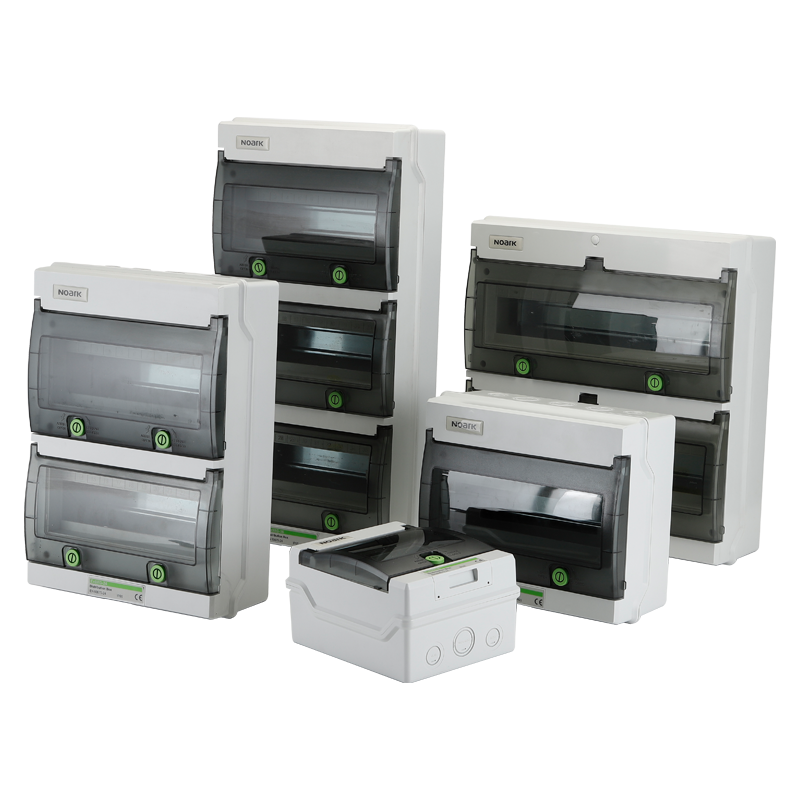

IP65 Distribution Box | 100A Rated Current | Surface Mount | Transparent Door by Noark
IP65 distribution box with a rated current of 100A and surface mounting—ideal for electrical distribution in residential, commercial, and industrial settings. Built for durability with ABS body and PC door, it offers high protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ex9XG-BBU-18-2
Brand: Noark
SKU: 850242
Alternatively Known As: IP65 Electrical Distribution Box, Surface Mount Distribution Board, Noark Ex9XG Distribution Enclosure
Technical Specifications
- Modules available: 4, 6, 9, 12, 18, 24, 36
- Row configuration: Single row for 4-18 modules, double row for 24 and 36 modules
- Rated current: 100A
- Door color: Transparent
- Mounting type: Surface
- Degree of protection: IP65
- Material: ABS body, PC door
- Fire resistance: 650℃ for 30 seconds
- Ambient temperature range: -25℃ to +40℃, max 95% humidity
- Storage temperature range: -40℃ to +75℃
- Dimensions (H x L x W): 300mm x 150mm x 400mm
- Weight: 3 kg
Key Features
- Available in multiple module configurations: 4, 6, 9, 12, 18, 24, 36
- Single row for up to 18 modules, double row for 24 and 36 modules
- Rated current capacity of 100A
- Transparent door for easy inspection
- Surface mounting type
- High degree of protection with IP65 rating
- Constructed with ABS body and PC door for durability
- Fire resistance up to 650℃ for 30 seconds
- Operates in ambient temperatures from -25℃ to +40℃ with 95% humidity
- Storage temperature range from -40℃ to +75℃
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical safety standards and proper mounting.
Applications
- Electrical distribution in residential, commercial, and industrial buildings
- Surface mounting for electrical circuit protection and management
- Suitable for environments requiring IP65 protection against dust and water
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable ABS and PC materials extend product lifespan reducing waste
- IP65 rating protects internal components from dust and water, minimizing maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against defects.
Available Now
The Noark IP65 Distribution Box Ex9XG-BBU-18-2 is available for immediate purchase, ideal for electrical distribution in residential, commercial, and industrial applications requiring high protection.
