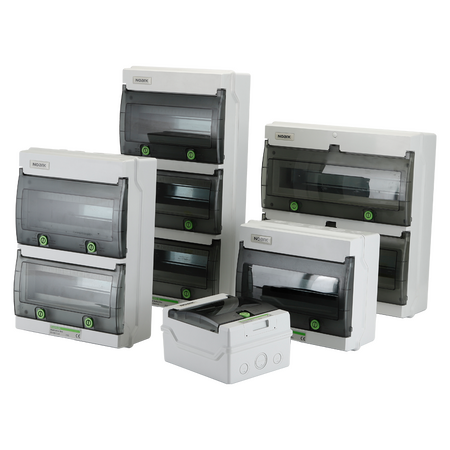

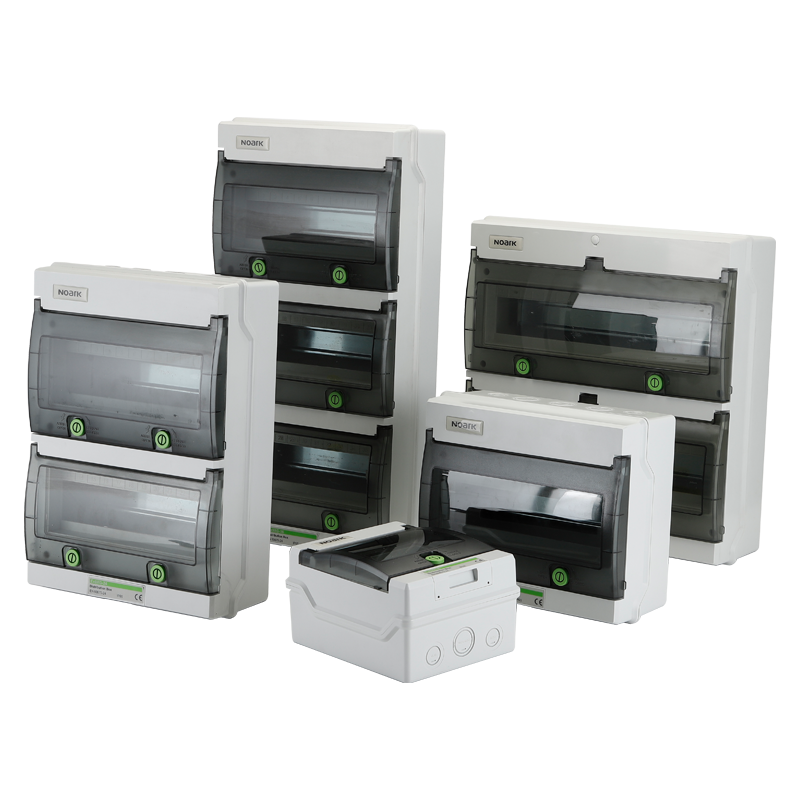

IP65 Distribution Box | 100A Rated Current | Surface Mount & Transparent Door by Noark
IP65 distribution box with a rated current of 100A and surface mount design—ideal for residential, commercial, and industrial electrical installations. Built for durability with an ABS body and PC door, featuring a transparent door for easy inspection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ex9XG-BBU-12-2
Brand: Noark
SKU: 850240
Alternatively Known As: IP65 Electrical Distribution Box, Noark Ex9XG Distribution Panel, Surface Mount Distribution Box
Technical Specifications
- Modules available: 4, 6, 9, 12, 18, 24, 36
- Row configuration: Single row for up to 18 modules, double row for 24 and 36 modules
- Rated current: 100A
- Door color: Transparent
- Mounting type: Surface mount
- Degree of protection: IP65
- Material: ABS body, PC door
- Fire resistance: 650℃ for 30 seconds
- Operating ambient temperature: -25℃ to +40℃, max 95% humidity
- Storage temperature: -40℃ to +75℃
- Dimensions (H x L x W): 400mm x 150mm x 300mm
- Weight: 3 kg
Key Features
- Available in multiple module configurations: 4, 6, 9, 12, 18, 24, 36
- Single row for 4 to 18 modules, double row for 24 and 36 modules
- Rated current capacity of 100A
- Transparent door for easy inspection
- Surface mounting type
- High degree of protection with IP65 rating
- Constructed with ABS body and PC door for durability
- Fire resistance up to 650℃ for 30 seconds
- Operates in ambient temperatures from -25℃ to +40℃ with 95% humidity
- Storage temperature range from -40℃ to +75℃
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical safety standards and proper mounting.
Applications
- Residential electrical distribution
- Commercial electrical installations
- Industrial electrical panel housing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- High protection rating minimizes environmental ingress and damage
Warranty Information
Standard manufacturer warranty applies. Please refer to Noark for specific warranty details.
Available Now
The Noark IP65 Distribution Box Ex9XG-BBU-12-2 is available for immediate purchase, ideal for secure and durable electrical distribution in residential, commercial, and industrial settings.
