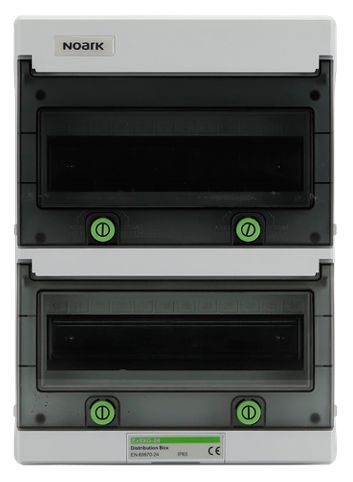

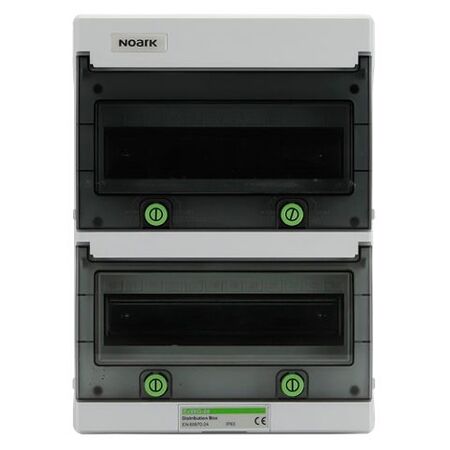

IP65 Distribution Box | 100A Rated Current | Surface Mount | Transparent Door by Noark
IP65 distribution box with a 100A rated current and surface mounting—ideal for electrical distribution in residential, commercial, and industrial settings. Built for durability with an ABS body and polycarbonate door, featuring a transparent door for easy inspection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ex9XG 24P
Brand: Noark
SKU: 850256
Alternatively Known As: IP65 Electrical Distribution Box, Noark Ex9XG Enclosure, Surface Mount Distribution Panel
Technical Specifications

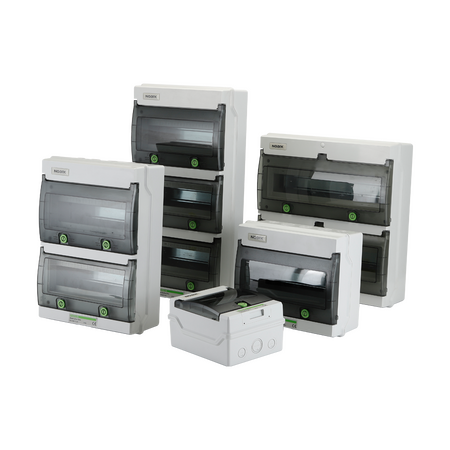

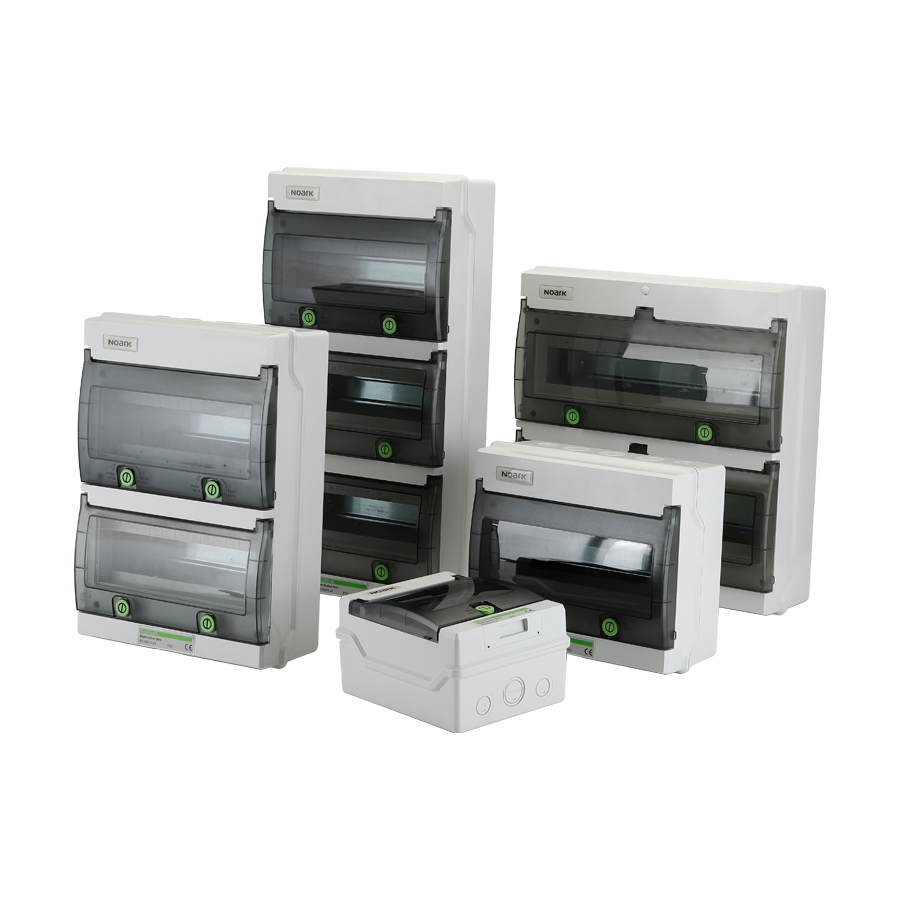

- Modules: 4, 6, 9, 12, 18, 24, 36
- Row configuration: Single row for 4-18 modules, double row for 24 and 36 modules
- Rated current: 100A
- Door color: Transparent
- Mounting type: Surface
- Degree of protection: IP65
- Material: ABS body, PC door
- Fire resistance: 650℃ for 30 seconds
- Ambient temperature range: -25℃ to +40℃, max 95% humidity
- Storage temperature range: -40℃ to +75℃
- Dimensions (H x L x W): 300mm x 120mm x 400mm
- Weight: 2.5 kg
Key Features
- Available in multiple module configurations: 4, 6, 9, 12, 18, 24, and 36 modules
- Single row design for up to 18 modules, double row for 24 and 36 modules
- Rated current capacity of 100A
- Transparent door for easy inspection
- Surface mounting type
- High degree of protection with IP65 rating
- Constructed from durable ABS body and polycarbonate door
- Fire resistance up to 650℃ for 30 seconds
- Operates in ambient temperatures from -25℃ to +40℃ with up to 95% humidity
- Storage temperature range from -40℃ to +75℃
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical safety standards and proper mounting.
Applications
- Electrical distribution and protection in residential, commercial, and industrial buildings
- Suitable for surface mounting in indoor and outdoor environments requiring IP65 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- High protection rating reduces risk of electrical faults and environmental damage
Warranty Information
Standard manufacturer warranty applies. Please refer to Noark's official warranty policy for details.
Available Now
The Noark IP65 Distribution Box Ex9XG 24P is available for immediate purchase, ideal for electrical distribution in residential, commercial, and industrial settings requiring high protection.
