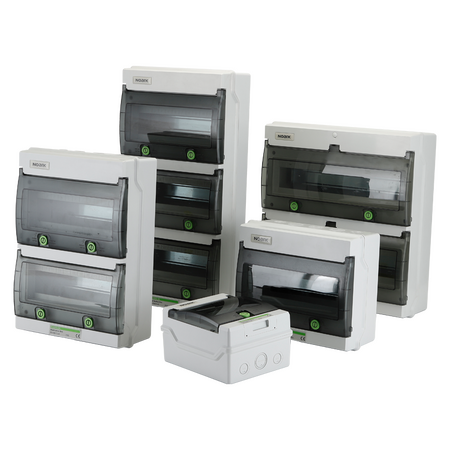

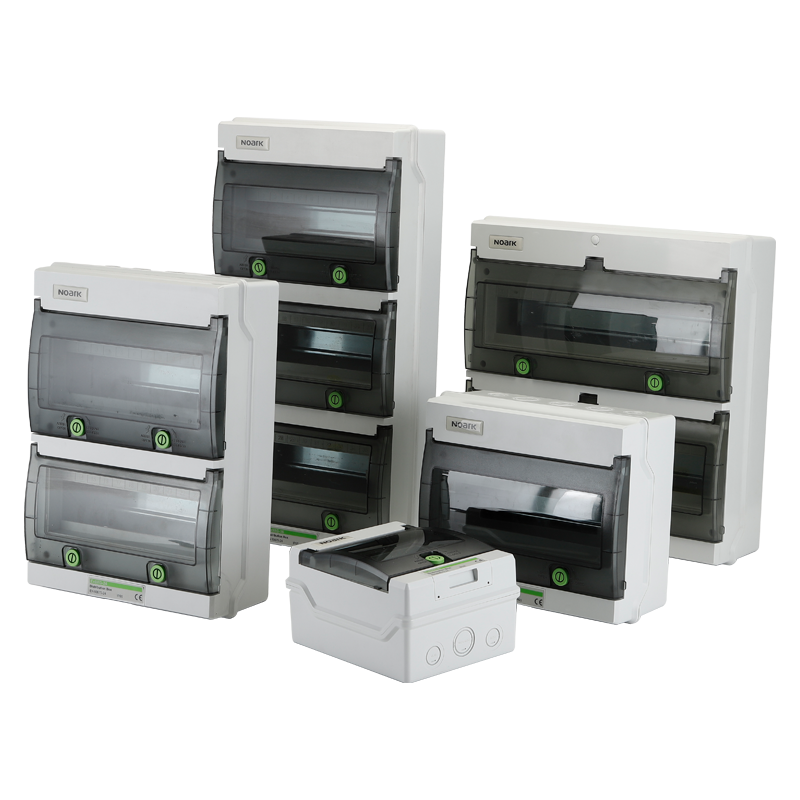

IP65 Distribution Box | 100A Rated Current | Surface Mount | Transparent Door by Noark
IP65 distribution box with a 100A rated current and surface mount design—ideal for electrical distribution in residential, commercial, and industrial settings. Built for durability with an ABS body and PC door, featuring a transparent door for easy visual inspection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ex9XG-BBU-36/3-2
Brand: Noark
SKU: 850364
Alternatively Known As: IP65 Electrical Distribution Box, Surface Mount Distribution Board, Noark Ex9XG Distribution Panel
Technical Specifications
- Modules available: 4, 6, 9, 12, 18, 24, 36
- Row configuration: Single row for up to 18 modules, double rows for 24 and 36 modules
- Rated current: 100A
- Door color: Transparent
- Mounting type: Surface mount
- Degree of protection: IP65
- Material: ABS body, PC door
- Fire resistance: 650℃ for 30 seconds
- Operating ambient temperature: -25℃ to +40℃, max 95% humidity
- Storage temperature: -40℃ to +75℃
- Dimensions (H x L x W): 300mm x 150mm x 400mm
- Weight: 3 kg
Key Features
- Available in multiple module configurations: 4, 6, 9, 12, 18, 24, 36
- Single row for 4 to 18 modules, double rows for 24 and 36 modules
- Rated current capacity of 100A
- Transparent door for easy visual inspection
- Surface mounting type
- High degree of protection with IP65 rating
- Constructed with ABS body and PC door for durability
- Fire resistance up to 650℃ for 30 seconds
- Operates in ambient temperatures from -25℃ to +40℃ with 95% humidity
- Storage temperature range from -40℃ to +75℃
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical safety standards and proper mounting.
Applications
- Electrical distribution and protection in residential, commercial, and industrial buildings
- Surface mounting for electrical circuit management
- Suitable for environments requiring IP65 protection against dust and water
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- IP65 rating ensures protection against environmental elements, extending product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to Noark for detailed warranty terms.
Available Now
The Noark IP65 Distribution Box Ex9XG-BBU-36/3-2 is available for immediate purchase, ideal for electrical distribution in residential, commercial, and industrial applications requiring high protection.
