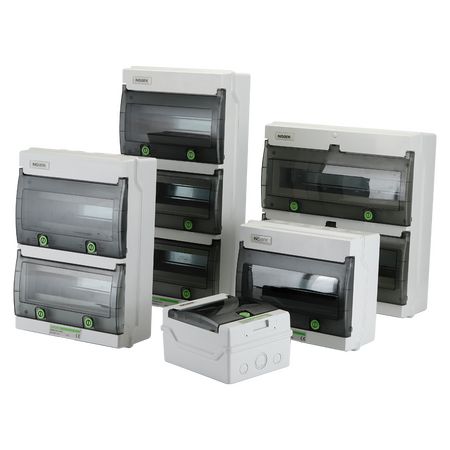

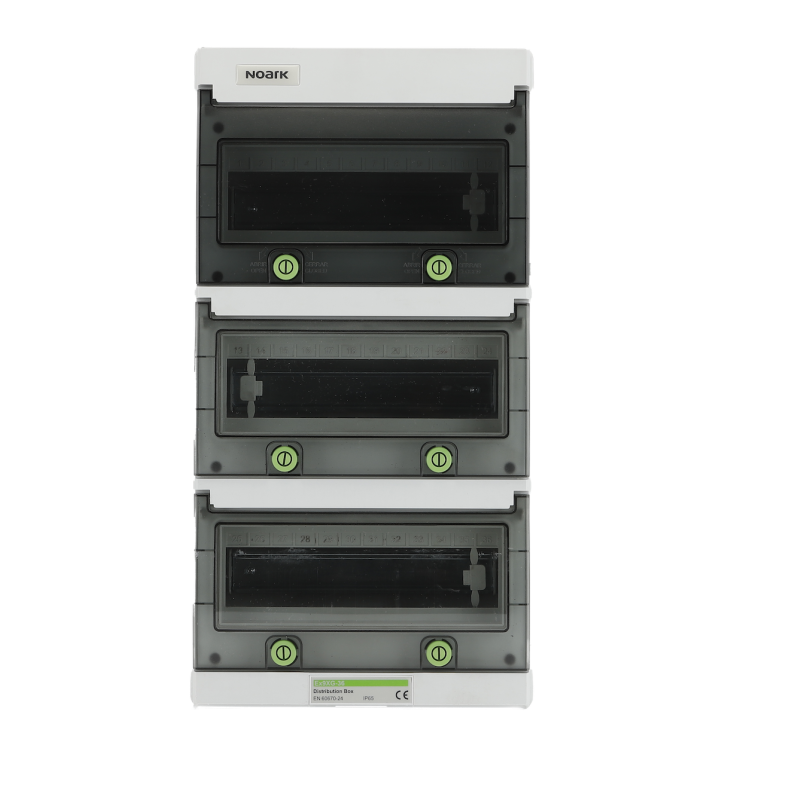

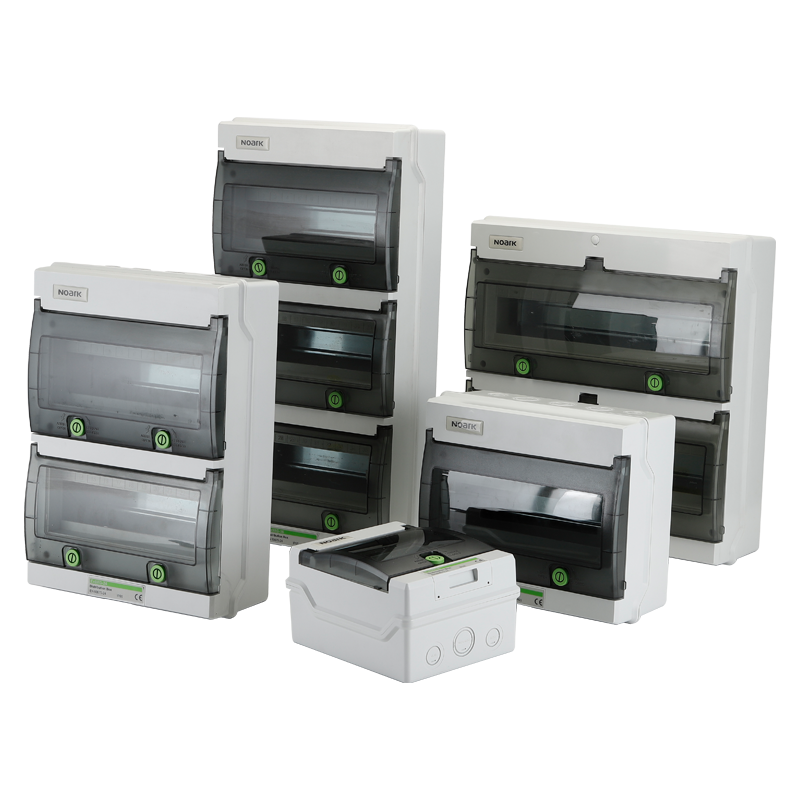

IP65 Distribution Box | 100A Rated Current | Surface Mount & Transparent Door | Noark
IP65 distribution box with a 100A rated current and surface mount design—ideal for residential, commercial, and industrial electrical installations. Built for durability with a transparent door for easy inspection, it ensures protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ex9XG 36P/3
Brand: Noark
SKU: 850365
Alternatively Known As: IP65 Electrical Distribution Box, Noark Ex9XG Distribution Panel, Weatherproof Distribution Box
Technical Specifications
- Modules (No.): 4, 6, 9, 12, 18, 24, 36
- Row configuration: Single row for 4-18 modules, double rows for 24 and 36 modules
- Rated current: 100A
- Door color: Transparent
- Mounting type: Surface mount
- Degree of protection: IP65
- Material: ABS body, PC door
- Fire resistance: 650℃ for 30 seconds
- Ambient temperature range: -25℃ to +40℃, max 95% humidity
- Storage temperature range: -40℃ to +75℃
- Dimensions (H x L x W): 300mm x 150mm x 400mm
- Weight: 3 kg
Key Features
- Available in multiple module configurations: 4, 6, 9, 12, 18, 24, 36 modules
- Single row for 4 to 18 modules, double rows for 24 and 36 modules
- Rated current capacity of 100A
- Transparent door for easy inspection
- Surface mounting type
- High degree of protection with IP65 rating
- Fire resistant up to 650℃ for 30 seconds
- Suitable for ambient temperatures from -25℃ to +40℃ with 95% humidity
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical safety standards and proper mounting.
Applications
- Electrical distribution and protection in residential, commercial, and industrial buildings
- Suitable for indoor and outdoor electrical installations requiring IP65 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable ABS and PC materials extend product life and reduce waste
- IP65 rating protects internal components from dust and water, reducing maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Noark for specific warranty details.
Available Now
The Noark IP65 Distribution Box Ex9XG 36P/3 is available for immediate purchase, ideal for electrical distribution in residential, commercial, and industrial applications requiring high protection.
