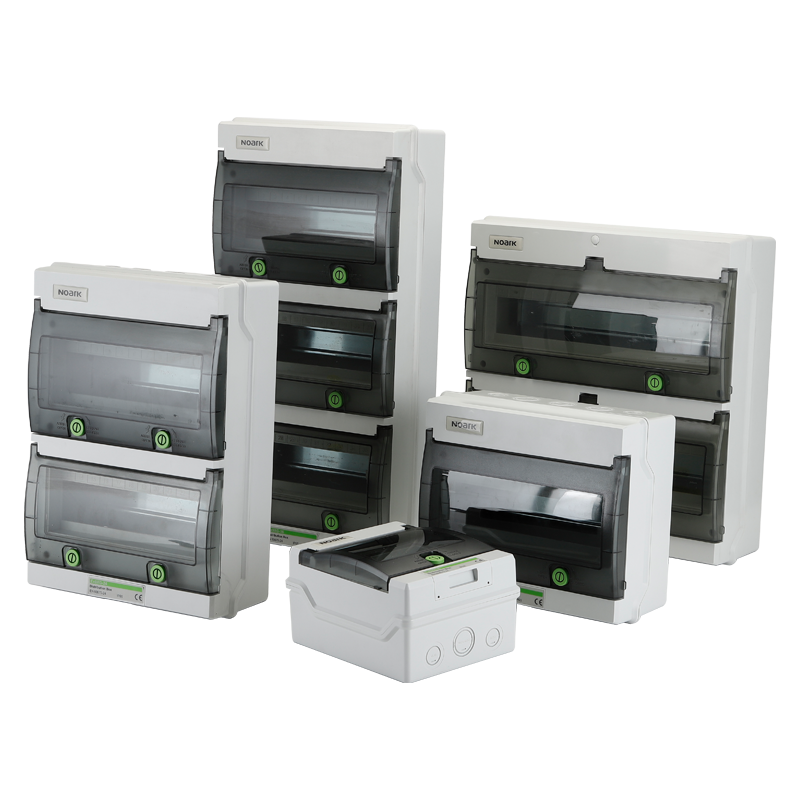

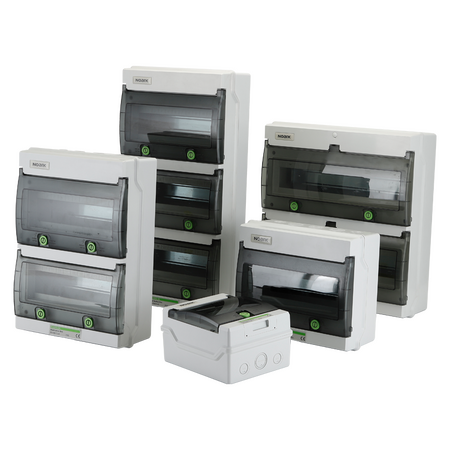

IP65 Distribution Box 4P | 100A Rated Current | Surface Mount | Transparent Door by Noark
IP65 distribution box with a 100A rated current and surface mount design—ideal for residential, commercial, and industrial electrical installations. Built for durability with a transparent door for easy inspection and high protection against environmental damage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

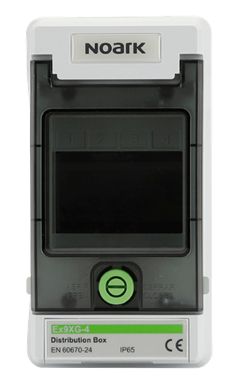

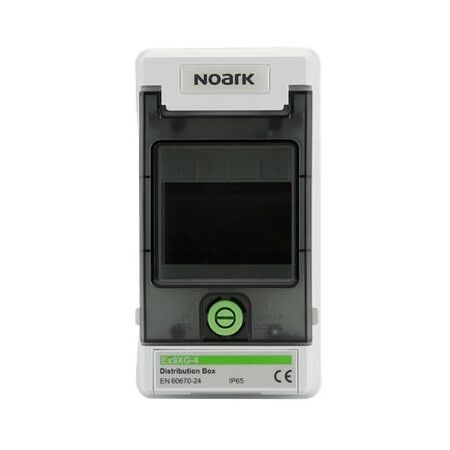

Product Name/Title: Ex9XG 4P
Brand: Noark
SKU: 850251
Alternatively Known As: IP65 Electrical Distribution Box, Noark Ex9XG Panel, Surface Mount Distribution Board
Technical Specifications
- Modules available: 4, 6, 9, 12, 18, 24, 36
- Row configuration: Single row for 4-18 modules, double row for 24 and 36 modules
- Rated current: 100A
- Door color: Transparent
- Mounting type: Surface mount
- Degree of protection: IP65
- Material: ABS body, PC door
- Fire resistance: 650℃ for 30 seconds
- Operating ambient temperature: -25℃ to +40℃, max 95% humidity
- Storage temperature: -40℃ to +75℃
- Dimensions (H x L x W): 400mm x 120mm x 300mm
- Weight: 2 kg
Key Features
- Available in multiple module sizes: 4, 6, 9, 12, 18, 24, 36
- Single row for up to 18 modules, double row for 24 and 36 modules
- Rated current of 100A
- Transparent door for easy inspection
- Surface mounting type
- High degree of protection with IP65 rating
- Constructed with ABS body and PC door
- Fire resistance up to 650℃ for 30 seconds
- Operates in ambient temperatures from -25℃ to +40℃ with 95% humidity
- Storage temperature range from -40℃ to +75℃
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical safety standards and proper mounting.
Applications
- Residential electrical distribution
- Commercial electrical installations
- Industrial electrical panel housing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce need for frequent replacements
- High protection rating minimizes risk of environmental damage and electrical faults
Warranty Information
Standard manufacturer warranty applies, typically 1 year against manufacturing defects.
Available Now
The Noark IP65 Distribution Box Ex9XG 4P is available for immediate purchase, ideal for secure and durable electrical distribution in residential, commercial, and industrial settings.
