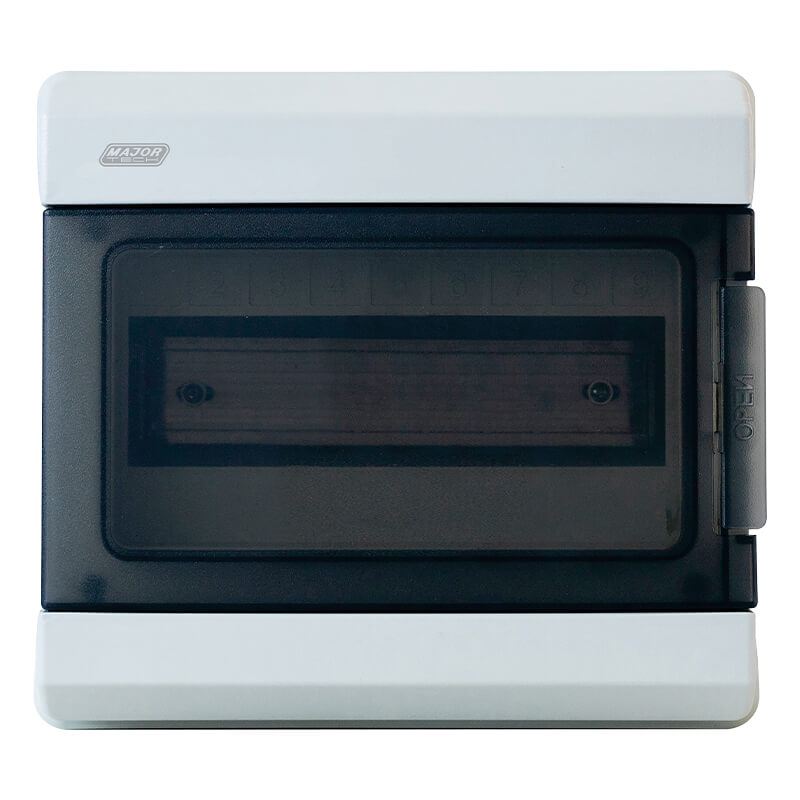

IP66 8 Pole Surface Mount Switchboard | Dust-Tight & Water-Resistant | IK08 Impact Rated | by Majortech
The IP66 8 Pole Surface Mount Switchboard is designed for robust industrial electrical distribution, featuring complete dust-tight protection and resistance to powerful water jets. With an IK08 impact-resistant enclosure and support for up to 8 poles of 18mm modules, it's perfect for outdoor installations in extreme weather conditions, ensuring safety and reliability in factories, marine environments, and more.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: IP66 Electrical Distribution Board, Surface Mount Switchboard, Industrial Switchboard, Outdoor Electrical Panel
Technical Specifications
- Function Range: 8 poles of 18mm modules
- Rows: 1
- Mount: Surface mount
- Mounting Support: DIN rail
- Knock Outs: Top and bottom with 2x Ø20mm & 2x Ø32mm each
- IP Rating: IP66
- IK Rating: IK08
- Fire Resistance: Up to 850°C for 30 seconds
- Rated Current: ≤125A
- Voltage Range: ≤1000VAC or ≤1500VDC according to IEC60670
- Material Enclosure: High quality polycarbonate plastic
- Earth/Neutral Bar: Copper
- Dimensions (H x L x W): 105mm x 219mm x 200mm
- Weight: 2.5 kg
Key Features
- IP66 rated for complete dust-tight protection and resistance to powerful water jets
- IK08 impact resistant enclosure for enhanced durability
- Constructed from high quality polycarbonate plastic
- Equipped with earth/neutral copper bars
- Supports up to 8 poles of 18mm modules
- Surface mount with DIN rail support
- Fire resistant up to 850°C for 30 seconds
- Rated current up to 125A
- Voltage range up to 1000VAC or 1500VDC compliant with IEC60670
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper mounting.
Applications
- Industrial electrical distribution
- Outdoor electrical installations
- Factories and manufacturing plants
- Marine environments
- Areas exposed to extreme weather conditions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Protects electrical components from environmental damage, enhancing energy efficiency and safety
Warranty Information
Standard manufacturer warranty applies. Please refer to Majortech warranty terms for details.
Available Now
The Majortech IP66 8 Pole Surface Mount Switchboard is available for immediate purchase, ideal for industrial, marine, and outdoor electrical distribution applications.
