Trade Discount 25%

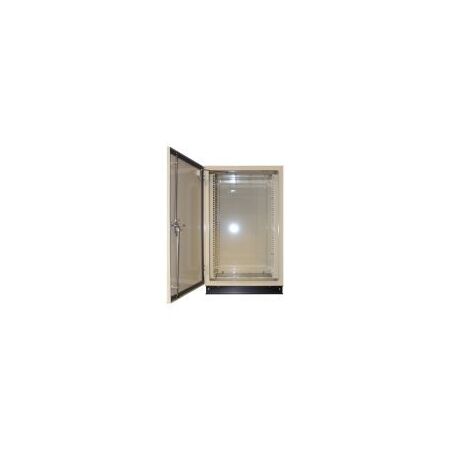

IP66 Aluminium Rack Cabinet 12RU 600x1030x640mm Redback
Redback IP66 aluminium rack cabinet features 12RU capacity, 600x1030x640mm size, 3-point locking doors, and 2 gland plates. Ideal for outdoor 19 inch equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Outdoor 19-inch Rack Cabinet, Weatherproof Data Cabinet, Aluminium Network Enclosure, IP66 Communications Cabinet
Technical Specifications
- Model: CA.6012
- Rack Capacity: 12RU
- Rack Compatibility: Standard 19-inch equipment
- Material: Aluminium
- Ingress Protection: IP66
- Overall Width: 600 mm
- Overall Depth: 1030 mm
- Overall Height: 640 mm
- Door Locking: 3-point locking system
- Door Seal: Polyurethane gasket
- Cable Entry: 2 x gland plates, approximately 296 x 110 mm each
- Mounting: Wall, pole or floor standing
- Rack Rails: Adjustable 19-inch uprights
- Cooling Provision: Provision for fans and air vents
- Load Capacity: Not published for this model
- Dimensions (H x L x W): 640mm x 1030mm x 600mm
- Weight: 35 kg
Key Features
- IP66-rated enclosure for outdoor telecommunications, networking and control equipment
- Compatible with standard 19-inch rack equipment
- Secure front door with a 3-point locking system
- Polyurethane door and gland-plate seals support weather resistance
- Two cable-entry gland plates for organised cable routing
- Adjustable 19-inch mounting uprights
- Suitable for wall, pole or floor-standing installation
- Aluminium construction provides corrosion resistance and reduced cabinet weight compared with steel
Professional Installation Requirements
- Mounting and cable entry should be completed by a suitably qualified installer. Maintain the IP66 seal by using correctly sized cable glands, fixing hardware and any required plinth or pole-mount accessories.
Applications
- Outdoor data and communications equipment
- Telecommunications and network infrastructure
- CCTV and security systems
- Industrial control and monitoring equipment
- Telephone and broadband systems
- Power and industrial automation equipment
Standards & Compliance
- AS 60529:2025 – applicable reference for the IP66 enclosure classification; verify product test documentation for the specific installation
- ANSI/EIA-310-D – relevant 19-inch rack equipment interface reference; specific manufacturer compliance should be confirmed where required
Environmental Benefits
- Aluminium is highly recyclable at end of service life
- Corrosion-resistant construction can extend service life and reduce replacement waste
- IP66 sealing helps protect installed equipment from dust and water ingress, supporting longer equipment service life
- Passive enclosure design requires no operating power
Warranty Information
Redback Racks by PSS Distributors are advertised with a 5-year warranty. Confirm warranty conditions and coverage for the CA.6012 model at purchase.
Available Now
Available through Redback Racks by PSS Distributors and authorised Australian electrical, security and communications distributors.
