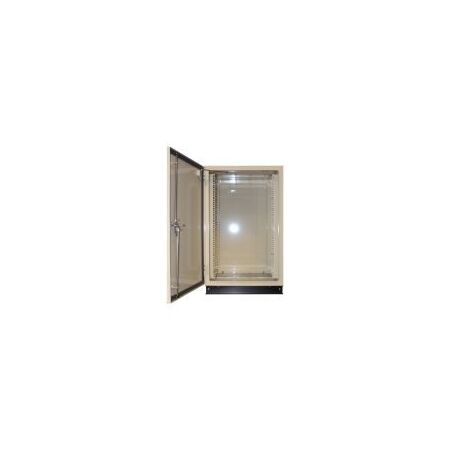

IP66 Aluminium Rack Cabinet 12RU 600x630x640mm Redback
Redback IP66 aluminium rack cabinet features 12RU capacity, 600x630x640mm size, 3-point locking doors, and 2 gland plates. Ideal for outdoor 19 inch equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 12RU Outdoor Rack Cabinet, IP66 Weatherproof Data Cabinet, Aluminium 19-Inch Rack Enclosure, Outdoor Network Cabinet
Technical Specifications
- Rack Capacity: 12RU
- Rack Format: 19-inch equipment
- Material: Aluminium
- Ingress Protection: IP66
- Overall Dimensions: 600W x 630D x 640H mm
- Door Locking: 3-point locking system
- Cable Entry: 2 x gland plates, approximately 296 x 110 mm each
- Door Seal: Polyurethane gasket
- Mounting: Wall-mounted, pole-mounted or floor-standing
- Rack Rails: Adjustable 19-inch uprights
- Ventilation Provision: Compatible with optional fans and air vents
- Dimensions (H x L x W): 640mm x 630mm x 600mm
- Weight: 22 kg
Key Features
- IP66-rated enclosure for protection against dust and powerful water jets
- Suitable for outdoor and harsh-environment communications equipment
- Compatible with standard 19-inch rack-mounted equipment
- Secure 3-point locking door system
- Polyurethane gasket provides a reliable door seal
- Two cable-entry gland plates for organised cable access
- Adjustable 19-inch mounting uprights
- Can be wall-mounted, pole-mounted or installed floor-standing
- Provision for optional fans and air vents
Applications
- Outdoor telecommunications and data network equipment
- Security, CCTV and surveillance systems
- Industrial control and monitoring equipment
- Power system, battery and communications infrastructure
- Remote site and roadside network installations
Standards & Compliance
- AS/NZS 60529 for degrees of protection provided by enclosures, including IP66 classification
Environmental Benefits
- Aluminium construction is highly recyclable at end of service life
- Durable weatherproof construction can extend equipment enclosure service life and reduce replacement waste
- Protects installed network and communications equipment from dust and water ingress, helping reduce premature equipment failure
Warranty Information
Redback Racks products are listed by Australian distributors with an industry-leading 5-year warranty; confirm the applicable warranty terms for this specific CA.6612 cabinet at purchase.
Available Now
Available through REDBACK RACKS and authorised Australian distributors, subject to distributor stock and ordering arrangements.
