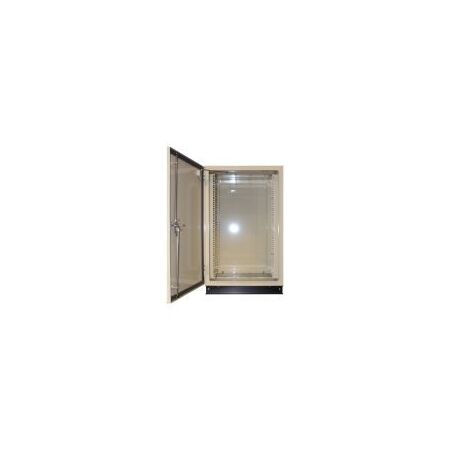

IP66 Aluminium Rack Cabinet 18RU 600x630x910mm Redback
Redback IP66 aluminium rack cabinet features 18RU capacity, 600x630x910mm size, 3-point locking doors, and 2 gland plates. Ideal for outdoor 19 inch equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 18RU Weatherproof Rack Cabinet, Outdoor 19-inch Rack Cabinet, Aluminium Network Cabinet, Wall-Mount Rack Enclosure
Technical Specifications
- Rack Capacity: 18RU
- Rack Format: 19-inch equipment
- Material: Aluminium
- Ingress Protection: IP66
- Door Locking: Three-point locking system
- Door Seal: Polyurethane gasket
- Cable Entry: 2 gland plates, 296 x 110mm each
- Mounting: Wall mountable, pole mountable or floor standing
- Rack Rails: Adjustable 19-inch uprights
- Plinth: Included as standard for 18RU configurations
- Ventilation Provision: Compatible with optional fans and air vents
- Dimensions (H x L x W): 910mm x 630mm x 600mm
- Weight: 42 kg
Key Features
- IP66 protection for outdoor and weather-exposed installations
- Aluminium construction for corrosion resistance and reduced cabinet weight
- Three-point locking door for improved security
- Polyurethane gasket helps maintain the weatherproof enclosure seal
- Two cable-entry gland plates simplify external cabling
- Adjustable 19-inch mounting rails accommodate standard rack equipment
- Suitable for wall, pole or floor-standing installation
- Compatible with networking, telecommunications, surveillance and industrial equipment
Professional Installation Requirements
- Mounting should be carried out by suitably qualified personnel using fixings appropriate for the wall, pole or supporting structure. Any mains-powered equipment, wiring or electrical accessories installed inside the cabinet must be installed in accordance with applicable Australian electrical requirements by a licensed electrician.
Applications
- Outdoor network and telecommunications equipment
- CCTV and security surveillance systems
- Industrial control and monitoring equipment
- Point-of-sale and communications equipment
- Computer and server accessories requiring weatherproof enclosure protection
- Remote or exposed equipment installations
Standards & Compliance
- AS 60529:2025 — relevant Australian standard for enclosure ingress-protection classifications and the claimed IP66 rating; product-specific test certification was not located
Environmental Benefits
- Aluminium is highly recyclable at end of service life
- Durable corrosion-resistant construction can extend service life and reduce replacement waste
- Protects internal equipment from dust and water ingress, helping reduce premature equipment failure
- Passive enclosure design does not require operating energy unless optional fans or ventilation accessories are fitted
Warranty Information
No specific REDBACK_RACKS warranty period was located. Warranty is subject to the supplier's published terms and applicable Australian Consumer Law guarantees.
Available Now
Available through Aspen Pumps and authorised Australian trade distributors, subject to current distributor stock.
