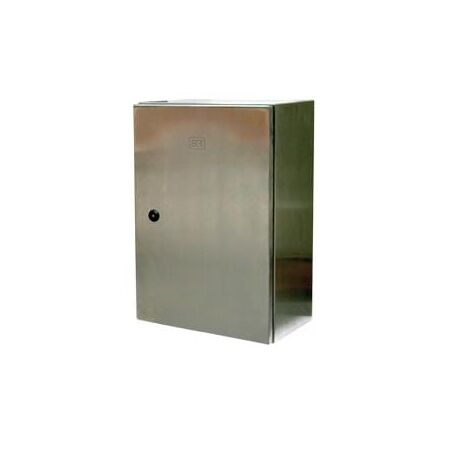

IP66 Stainless Steel Cabinet 1200x600x600mm | 19" Rack System | Dust & Water Protection by B&R Enclosures
IP66 stainless steel cabinet with 1200x600x600mm dimensions and 19" rack system—ideal for data centers and industrial environments. Built for dust and water protection, with easy cabling and robust locking mechanisms.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ausrack IP S/S Encl 1200X600X600mm
Brand: B&R Enclosures
SKU: ARIP24U66/S
Alternatively Known As: 316 Stainless Steel Cabinet, IP66 Cabinet, Data Cabinet, Network Cabinet
Technical Specifications
- Material: 1.5mm 316 stainless steel or 1.6mm zinc coated steel.
- IP Rating: IP66.
- Height: 1200mm.
- Width: 600mm.
- Depth: 600mm.
- Part Number: ARIP24U66/S.
- Dimensions (H x L x W): 1200mm x 600mm x 600mm
- Weight: 50 kg
Key Features
- 19” cabinet system designed to protect sensitive equipment from harsh environments.
- Suitable for protecting equipment from dust and water.
- Designed to accommodate small to medium passive patching networks.
- Easy cabling via gland plate.
- Manufactured from 1.6mm zinc coated steel or 1.5mm 316 stainless steel.
- ASSDA approved N4 surface finish.
- Front and rear adjustable 19″ rack rails.
- Gland plate (fitted internally or externally).
- 7mm square turnbuckle lock.
- Lockable L handles.
- 3-point locking.
- Removable back.
- Door rails.
- Earth strap kit.
Professional Installation Requirements
- Professional installation is recommended to ensure proper setup and safety.
Applications
- Data centers: Protecting sensitive networking equipment
- Telecommunications: Suitable for passive patching networks
- Industrial: Environments requiring dust and water protection
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Ausrack IP – 316SS Cabinet System is available now for immediate purchase. Ideal for data centers and industrial applications requiring robust protection.
