Monarch IP 1200Hx600Wx400D IP66 Steel RAL7032

IP66 Steel Enclosure 1200Hx600Wx400D | Zinc Coated | RAL7032 Finish by B&R Enclosures

BRAND: B&R Enclosures

SKU: IP45214

$2,879.00 List price: $3,618.60

Free pick up (over 25 kg)

For delivery quote message

30 Days Return Delivery Options

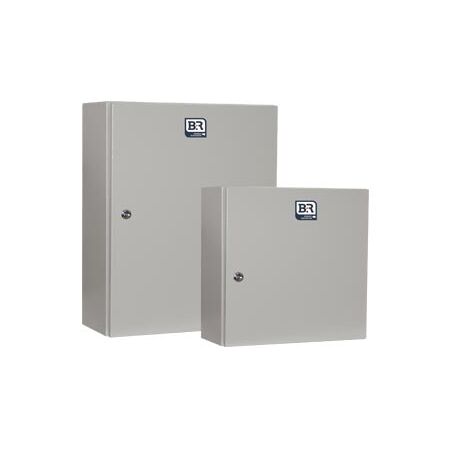

IP66 steel enclosure with 1200Hx600Wx400D dimensions and zinc coating—ideal for industrial applications. Built for durability, with pebble grey RAL7032 finish and C rail mountings for equipment.

Description
Attachments

Product Name/Title: Monarch IP 1200Hx600Wx400D IP66 Steel RAL7032

Brand: B&R Enclosures

SKU: IP45214

Alternatively Known As: Zinc Coated Steel Enclosure, IP66 Enclosure, Industrial Steel Enclosure

Technical Specifications

1.6mm thick zinc coated steel
1.6mm steel gland plate (brass also available as an option)
Pebble Grey (RAL7032) powdercoated paint finish or Ripple Orange – X15
Dimensions (H x L x W): 600mm x 600mm x 1200mm
Weight: 400 kg

Key Features

IP66 protection rating
C rail mountings for equipment
Gland plate on all but 175 and 270mm deep enclosures
Vertical body and door rails
3 point locking on models of 600mm high and above
Lockable L handle on enclosures 1600mm high and above
Stainless steel hinges and hinge pins for easy door opening
Concealed removable hinging
Polyurethane gasket (formed in place)

Professional Installation Requirements

Professional installation is recommended to ensure compliance with safety standards.

Applications

Small motor control applications
Lighting
CT metering
Small switchboards

Standards & Compliance

Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Region D wind rated to AS1170.2-2002 for structural design actions.

Environmental Benefits

Durable materials reduce the need for frequent replacements, minimizing waste.

Warranty Information

Standard warranty applies, please check with the manufacturer for details.

Available Now

The Monarch IP – Zinc Coated Steel Enclosure is available now for immediate purchase, ideal for industrial applications.

Specification Sheet (, 439 Kb) [Download]
