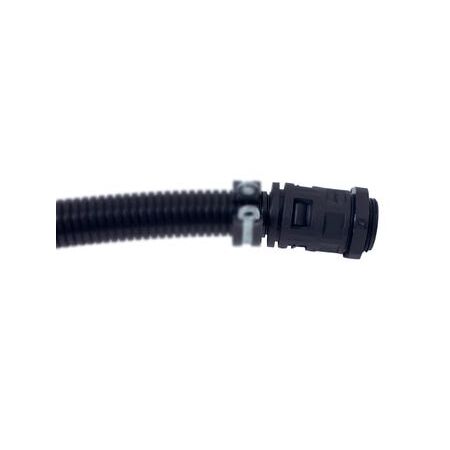

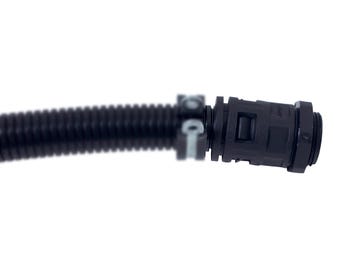

IP68 Straight Quick Connector 25mm | Self-Locking Push-Fit | Liquid Tight | UV Resistant by Cabac
The Cabac IP68 Straight Quick Connector 25mm is a high-performance, halogen-free polyamide nylon fitting designed for secure, liquid-tight conduit connections with easy push-fit installation and excellent temperature resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IP68 STRAIGHT QUICK CONN 25MM
Brand: Cabac
SKU: PCM-1M25
Alternatively Known As: IP68 conduit connector, straight conduit fitting, quick connect conduit fitting, 25mm conduit connector
Technical Specifications
- Conduit Size: 25mm
- Thread Size: M25 x 1.5
- Material: Polyamide nylon (PA6)
- Ingress Protection: IP68
- Temperature Rating: -40 to +115°C (intermittent up to +150°C)
- Flame Retardant: UL94 V-0
- Installation: Self-locking push-fit, no tools required
- Compliance: Anti-static and RoHS compliant
- Dimensions (H x L x W): 20mm x 60mm x 40mm
- Weight: 0.05 kg
Key Features
- Made from high quality polyamide nylon, halogen, phosphor and cadmium free
- IP68 rated ingress protection for liquid tight conduit connections
- Self-locking push-fit installation onto conduit with no tools required
- UV resistant, flame retardant, self-extinguishing and anti-static
- Temperature rating from -40 to +115 degrees Celsius, intermittent up to +150 degrees Celsius
- Supplied complete with locknut
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical standards.
Applications
- Cable management in industrial and commercial electrical installations
- Use with low fire hazard conduits for secure and safe wiring
- Suitable for environments requiring liquid-tight conduit connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen, phosphor and cadmium free materials reduce environmental toxicity
- RoHS compliant ensuring reduced hazardous substances
- Durable and UV resistant for long service life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Cabac IP68 Straight Quick Connector 25mm is available now for immediate purchase. Ideal for secure, liquid-tight conduit connections in industrial and commercial electrical installations.
