Trade Discount 17%

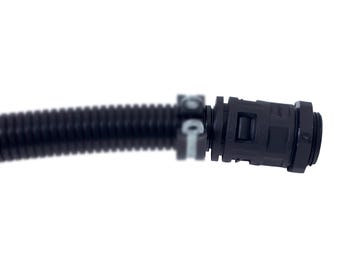

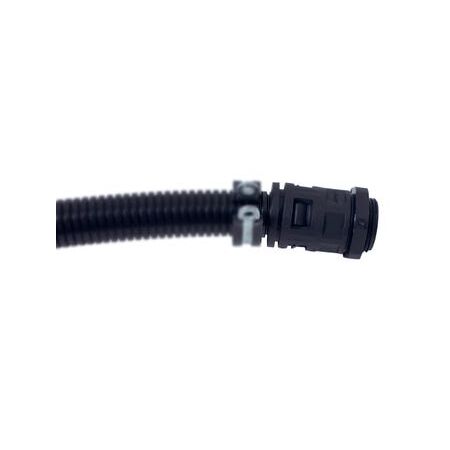

IP68 Straight Quick Connector 32mm | Liquid Tight | Self-Locking Installation | UV Resistant by Cabac
The Cabac IP68 Straight Quick Connector 32mm is a high-performance, halogen-free polyamide nylon fitting designed for secure, liquid-tight conduit connections with easy push-fit installation and excellent temperature resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IP68 STRAIGHT QUICK CONN 32MM
Brand: Cabac
SKU: PCM-1M32
Alternatively Known As: IP68 Straight Conduit Connector, Quick Connect Conduit Fitting, 32mm Nylon Conduit Connector, Liquid Tight Conduit Connector
Technical Specifications
- Conduit Size: 32mm
- Thread Size: M32 x 1.5
- Material: Polyamide nylon (PA6), halogen, phosphor and cadmium free
- Ingress Protection: IP68
- Temperature Rating: -40 to +115°C (intermittent to +150°C)
- Flame Retardant: UL94 V-0
- Installation: Self-locking push-fit, no tools required
- UV Resistant, Anti-Static, RoHS Compliant
- Dimensions (H x L x W): 40mm x 70mm x 40mm
- Weight: 0.1 kg
Key Features
- Made from high quality polyamide nylon, halogen, phosphor and cadmium free
- IP68 rated ingress protection for liquid tight conduit connections
- Self-locking push-fit installation onto conduit with no tools required
- UV resistant, flame retardant, self-extinguishing and anti-static
- Temperature rating from -40 to +115 degrees Celsius (intermittent to +150 degrees Celsius)
- Supplied complete with locknut
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical safety standards.
Applications
- Cable management in industrial and commercial electrical installations
- Use with low fire hazard conduits for enhanced safety
- Suitable for environments requiring liquid-tight conduit connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen, phosphor and cadmium free materials reduce environmental toxicity
- Flame retardant and self-extinguishing properties enhance fire safety
- RoHS compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac IP68 Straight Quick Connector 32mm is available now for immediate purchase. Ideal for secure, liquid-tight conduit connections in industrial and commercial electrical installations.
