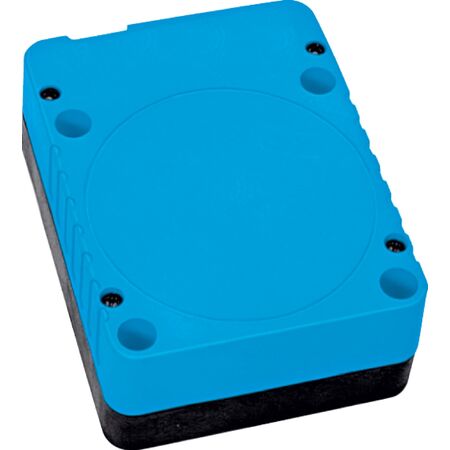

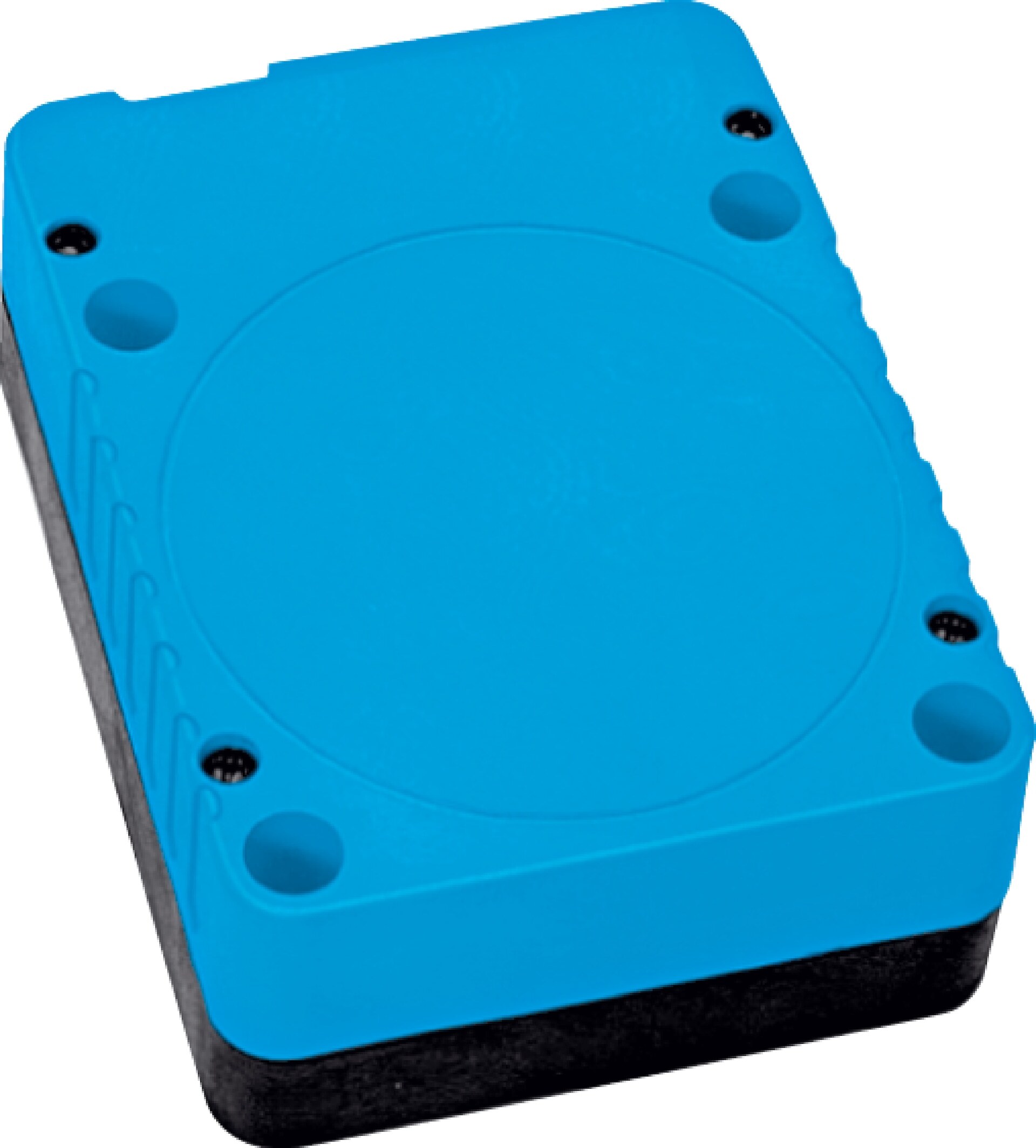

IQ80-60NPP-KK0 Proximity Sensor | Non-Flush Design | 60mm Sensing Range | IP65 Rated | by SICK
The IQ80-60NPP-KK0 proximity sensor is designed for industrial automation, featuring a non-flush installation type and a sensing range of 60 mm. With an IP65 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 36 V DC
- Voltage drop: ≤ 2.5 V
- Hysteresis: 1% to 15%
- Temperature drift of sensing range: ±10%
- Continuous current Ia: ≤ 250 mA
- Off-state current: ≤ 0.5 mA
- Connection type: Terminal connection with M20 gland
- Cable gland clamping area: M20 1.5
- Wire size: ≤ 2.5 mm²
- EMC compliance: According to EN 60947-5-2
- MTTFD: 2,043 years
- Mission time: 20 years
- Dimensions (H x L x W): 105mm x 40mm x 80mm
- Weight: 0.2 kg
Key Features
- Standard design housing with plastic PPE material
- Non-flush installation type
- Sensing range of 60 mm with safe sensing range of 48.6 mm
- Switching frequency of 100 Hz
- PNP switching output with wire configurable NC or NO function
- IP65 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
- Wide ambient operating temperature range from -25 °C to +80 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Non-contact sensing in harsh environments
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with DC 3-wire electrical wiring
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IQ80-60NPP-KK0 proximity sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
