IR Remote Control Extender Kit | 1 Room, 2 Sources | 38kHz | USB Powered by Matchmaster
IR remote control extender kit with 38kHz frequency and USB power—ideal for home theatre systems. Built for easy setup, it extends IR signals to control up to 2 devices in a single room.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

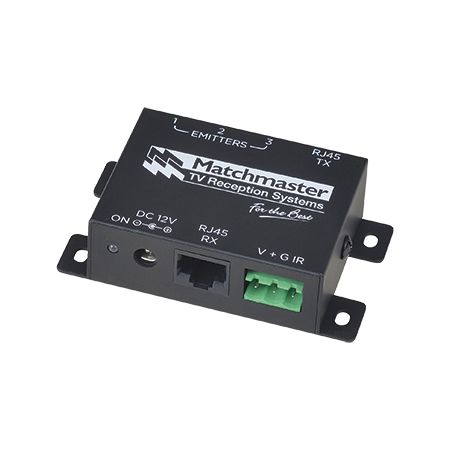

Product Name/Title: IR Remote Control Extender Kit (1 Room, 2 Sources)
Brand: Matchmaster
SKU: 34MM-IRKIT
Alternatively Known As: IR Extender Kit, IR Remote Repeater, IR Signal Extender, Remote Control Extension Kit
Technical Specifications
- Supports 1 room and 2 source IR control
- Uses CAT5e/6 cabling for IR signal distribution
- Built-in RJ45 TX and RX ports for easy connection
- Expandable with additional IR receivers (34MM-IR-RX) and emitters (34MM-IR-TX)
- Supports daisy chaining with 34MM-IR4X for extended connectivity
- Converts IR signals back to 3.5mm port for emitter use with 34MM-IRMJ
- Dimensions (H x L x W): 30mm x 80mm x 120mm
- Weight: 0.2 kg
Key Features
- Allows control of devices without line of sight by repeating IR commands via CAT5e/6 cable
- Expandable to multiple locations with additional IR receivers and emitters
- Distributes IR signals over CAT5e/6 structured cabling with built-in RJ45 TX and RX ports
- No terminating necessary, keeping IR signals contained within CAT5e/6 cabling framework
- Supports expansion of RJ45 connectivity for RX and TX distribution using 34MM-IR4X
- Daisy chaining multiple 34MM-IR4X units for further expansion
- Converts IR signal from CAT5e/6 back to 3.5mm port for IR emitter use with 34MM-IRMJ
Professional Installation Requirements
- Professional installation is recommended to ensure proper cabling and optimal IR signal distribution.
Applications
- Home entertainment systems
- Remote control extension for Pay TV set top boxes
- Stereo systems
- 4K media players
- Any location requiring extended IR remote control range
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces electronic waste by extending the usability of existing remote controls and devices
- Energy-efficient operation with low power consumption
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Matchmaster IR Remote Control Extender Kit (1 Room, 2 Sources) is available now for immediate purchase. Ideal for home entertainment and AV system remote control extension.
